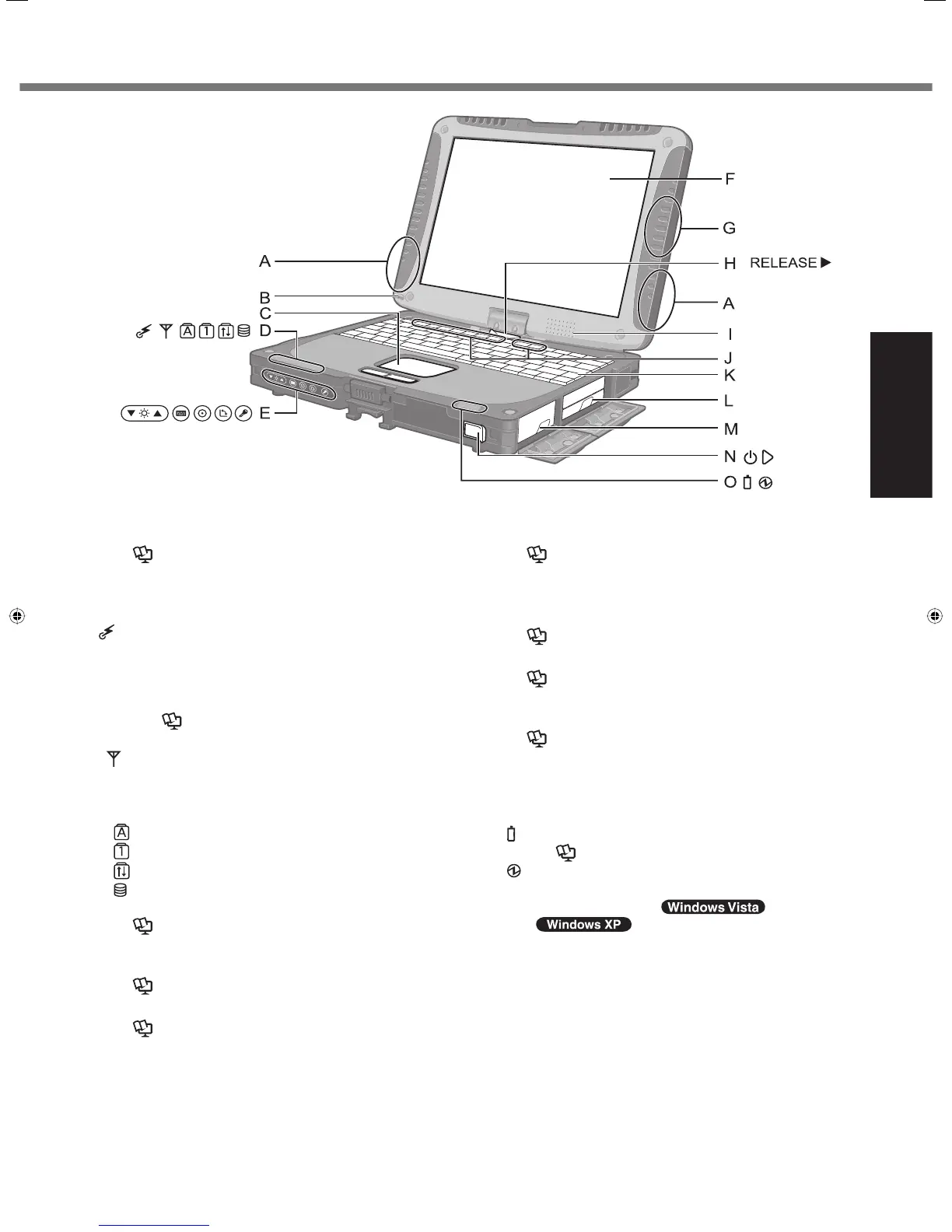

Description of Parts
A: Wireless LAN Antenna
<Only for model with wireless LAN>
Reference Manual “Wireless LAN”
B: Stylus/Digitizer pen Holder
C: Touch Pad
D: LED Indicator
: Wireless ready
This indicator lights when Wireless LAN, Blue-
tooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
Reference Manual “Disabling/Enabling
Wireless Communication”
: Wireless WAN status
<Only for model with wireless WAN>
Refer to the instruction manual of the wireless
device.
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Hard disk drive status
E: Tablet Buttons
Reference Manual “Tablet Buttons”
F: LCD
<Only for model with touchscreen>
Reference Manual “Touchscreen”
<Only for model with dual touch>
Reference Manual “Dual Touch”
G: Bluetooth Antenna
<Only for model with Bluetooth>
Reference Manual “Bluetooth”
H: Display Release Latch
page 11 “Switching to the Tablet mode”
I: Speaker
Reference Manual “Key Combinations”
J: Function Key
Reference Manual “Key Combinations”
K: Keyboard
L: Hard Disk Drive
Reference Manual “Hard Disk Drive”
M: Battery Pack
Specifi ed Battery pack: CF-VZSU48
N: Power Switch
O: LED Indicator
: Battery status
Reference Manual “Battery Power”
: Power status
(Off: Power off/Hibernation, Green: Power
on, Blinking green:
Sleep/
Standby, Blinking green rapidly:
Cannot power on or resume due to low temperature.)
