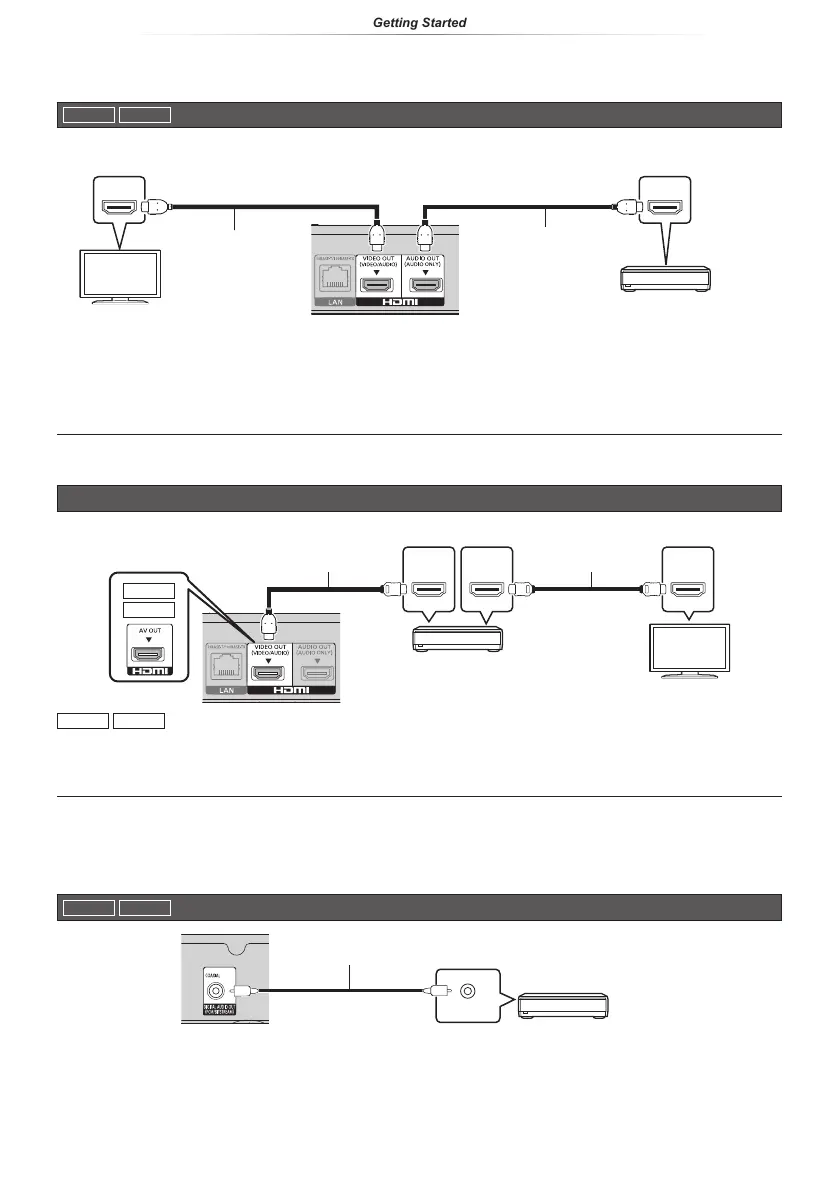

Getting Started
Connecting to an amplier/receiver
UB450 UB159
Enjoying video with a 4K-compatible TV and audio with an amplier
You can enjoy richer sound by using the HDMI AUDIO OUT terminal.
(Audio is output in high resolution.)
HDMI INHDMI IN
HDMI Cable
(18 Gbps)
HDMI Cable
Amplier/receiver
Setting
Set the following items in the setup menu (

23):
y
Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (

23)
y
To enjoy audio with a TV
Set “HDMI(VIDEO) Output Mode” to “Video+Audio”. (

23)

y
The HDMI AUDIO OUT terminal is not compatible with video signals and the HDMI CEC function (

20).
Enjoying video with a 4K-compatible TV and audio with a 4K-compatible amplier
HDMI IN
(ARC)
HDMI OUT
(ARC)
HDMI IN
HDMI Cable
(18 Gbps)
Amplier/receiver
(4K-compatible)
HDMI Cable
(18 Gbps)
UB154
UB150
UB450 UB159
Setting
Set the following item in the setup menu (

23):
y
Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (

23)

y
About ARC:
When using the TV or amplier/receiver that does not have the indication of “(ARC)” (non-ARC-compatible) on the HDMI
terminal, the amplier/receiver and TV must also be connected using an optical digital cable or coaxial cable in order to enjoy
the TV’s sound through the amplier/receiver.
UB450 UB159
Enjoying audio with an amplier connected to the COAXIAL terminal
COAXIAL IN
Amplier/receiver
Coaxial Cable
Setting
Set the following items in the setup menu (

23):
y
Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (

23)
y
Set “HDMI Audio Output” to “Off” in “Digital Audio Output”. (

24)
