USER MANUAL
PANDORA DXL 1840L CAR SERVICE-SECURITY SYSTEM
Saving changes:
To finish the recording of the Bluetooth radio relay, press VALET button once, the series of red and green
flashes of the status LED indicator will confirm the saving, switch on the ignition to save the settings and
exit the programming mode.
Additional device

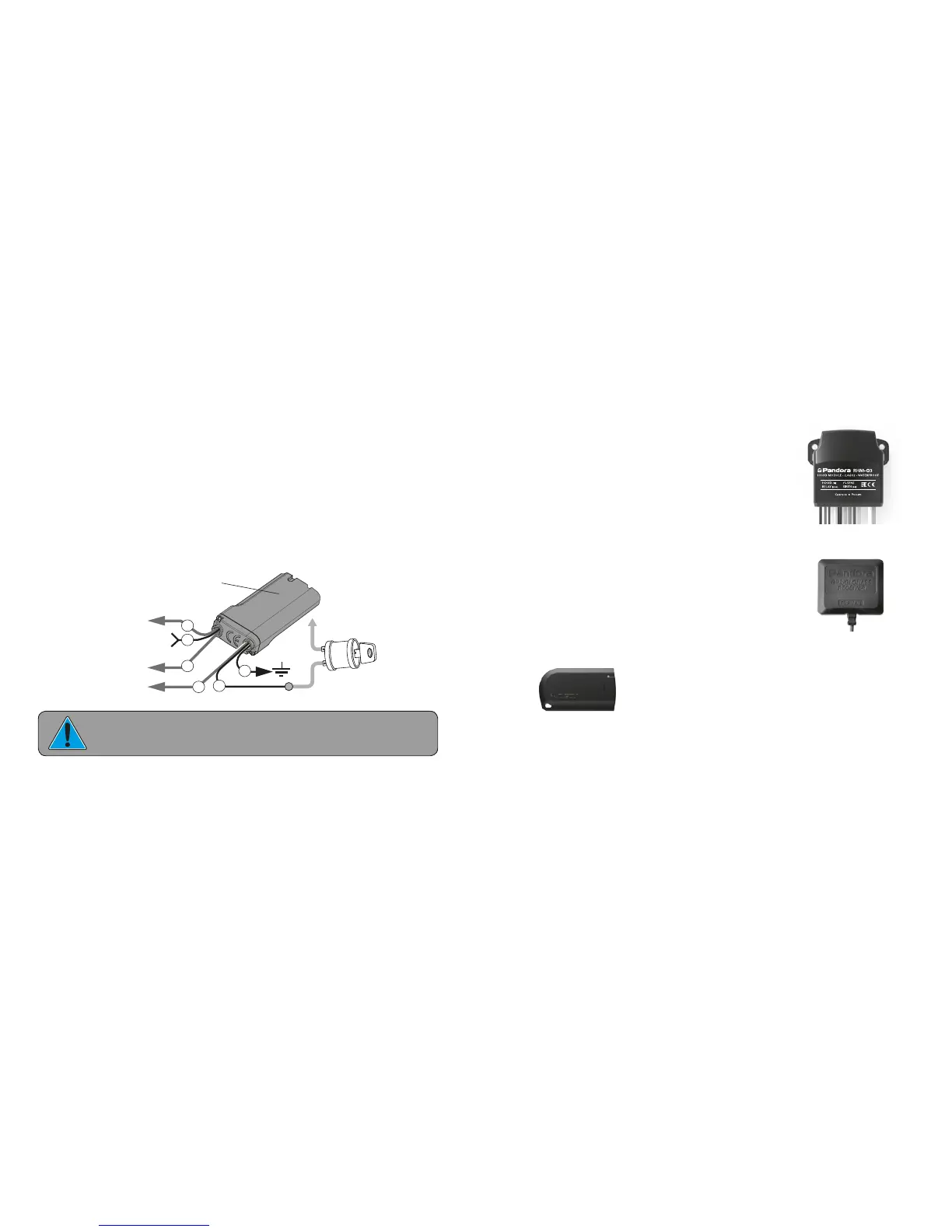

Blocking radio relay BTR-101
Blocking BTR-101 radio relay is optionally available for Bluetooth systems. Blocking radio relay with
built-in accelerometer should be placed in the engine compartment. Herewith zone of built-in aerial
2,4 GHz should not be shielded. Provide a rigid fastening to the car body or to the fixed wirings. It is
forbidden to hide the module in wiring. To save energy, radio relay power is connected to the ignition.
Radio relay is normally closed and has a full set of contacts. Blocking is carried out on unauthorized
movement.
2
5
1
4
3
NO
NC
COM
programming
6
Antenna 2,4 GHz
+12V
WARINGI! DO NOT PLACE RADIO RELAYS DIRECTLY ON THE ENGINE!
Radio tag BT-760
Radio module of engine
compartment RHM-03 BT
Radio module of engine compartment RHM-03 BT
This module is designed to simplify the system installation and
wiring in the engine compartment module. Data transmission and
control are performed via system standard 2.4 GHz radio channel
with Bluetooth 4.2 Low Energy protocol. The module allows to
control front hood locks, siren and digital engine preheater it also
allows to block the engine (engine blocking can be activated im-
mediately or when determining motion with built-in accelerometer,
it depends on the system configuration). The module also sends in-
formation about the temperature to the base unit.
GPS/GLONASS -receiver NAV-035 BT
Pandora NAV-035 BT is a high-sensitivity GPS/GLONASS receiver
that designed to be used with Pandora service-security systems. The
receiver operates on 2,4 GHz wireless interface. The receiver can be
placed under the dashboard, aerial should be placed in the top for
better reception of the satellite signal
Control devices
GPS/GLONASS-
receiver NAV-035BT
