Service Manual/Spare Parts
Series F11
Bulletin MSG30-5511-M1/UK
Assemble F11

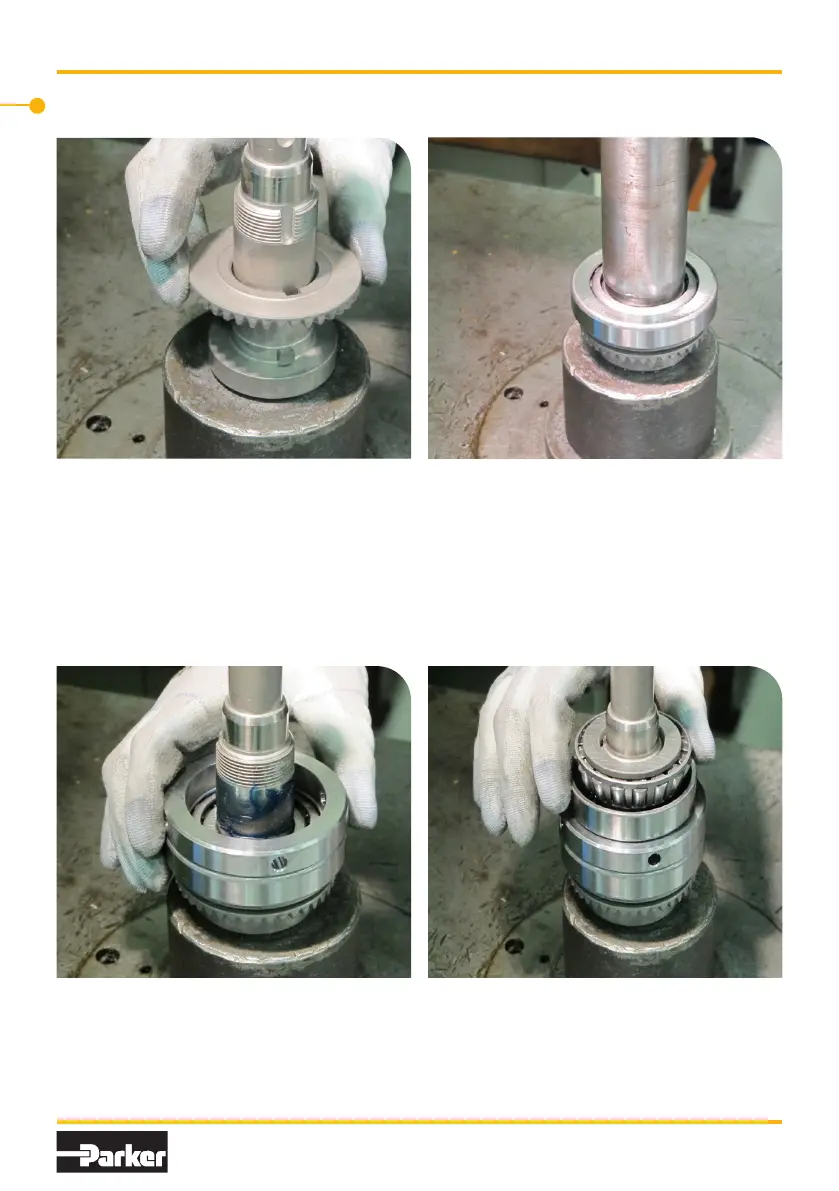

1. Place the ring gear on the shaft with
the guide pin located against the guide
hole.
2. Press down the large tapered roller bea-
ring together with the ring gear.
3. Place the distance ring on the large
tapered roller bearing.
4. Place the small tapered roller bearing
on the shaft as on the picture.
Bulletin MSG30-5511-M1/UK
Series F11
11
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
1. Place the ring gear on the shaft
with the guide pin located against the
guide hole.
2. Press down the large tapered
roller bearing together with the ring
gear.
3. Placethedistanceringonthebig
taperedrollerbearing.
4. Placethesmalltaperedroller
bearingontheshaftasonthe picture.
6. Placethelockwasher(s)ontothe
shaft.
3. Placethedistanceringon the
large taperedrollerbearing.
Assembling
Bulletin MSG30-5511-M1/UK
Series F11
11
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
1. Place the ring gear on the shaft
with the guide pin located against the
guide hole.
2. Press down the large tapered
roller bearing together with the ring
gear.
3. Placethedistanceringonthebig
taperedrollerbearing.
4. Placethesmalltaperedroller
bearingontheshaftasonthe picture.
6. Placethelockwasher(s)ontothe
shaft.
3. Placethedistanceringon the
large taperedrollerbearing.
Bulletin MSG30-5511-M1/UK
Series F11
11
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
1. Place the ring gear on the shaft
with the guide pin located against the
guide hole.
2. Press down the large tapered
roller bearing together with the ring
gear.
3. Placethedistanceringonthebig
taperedrollerbearing.
4. Placethesmalltaperedroller
bearingontheshaftasonthe picture.
6. Placethelockwasher(s)ontothe
shaft.
3. Placethedistanceringon the
large taperedrollerbearing.
Bulletin MSG30-5511-M1/UK
Series F11
11
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
1. Place the ring gear on the shaft
with the guide pin located against the
guide hole.
2. Press down the large tapered
roller bearing together with the ring
gear.
3. Placethedistanceringonthebig
taperedrollerbearing.
4. Placethesmalltaperedroller
bearingontheshaftasonthe picture.
6. Placethelockwasher(s)ontothe
shaft.
3. Placethedistanceringon the
large taperedrollerbearing.
