WCS* Read Head Position Encoding System
RS-485 Interface (LS1xx*, LS2xx*)
4.2 Hardware Configuration
You can change the hardware and software configuration of the read head in the read head.
The changes to the read head type are made with two DIP switches or with three if you have a
read head with the "Display" option: S1 (1) is a DIP switch with four switch positions, S2 (2) and
S1D (3) are switches with two switch positions each.

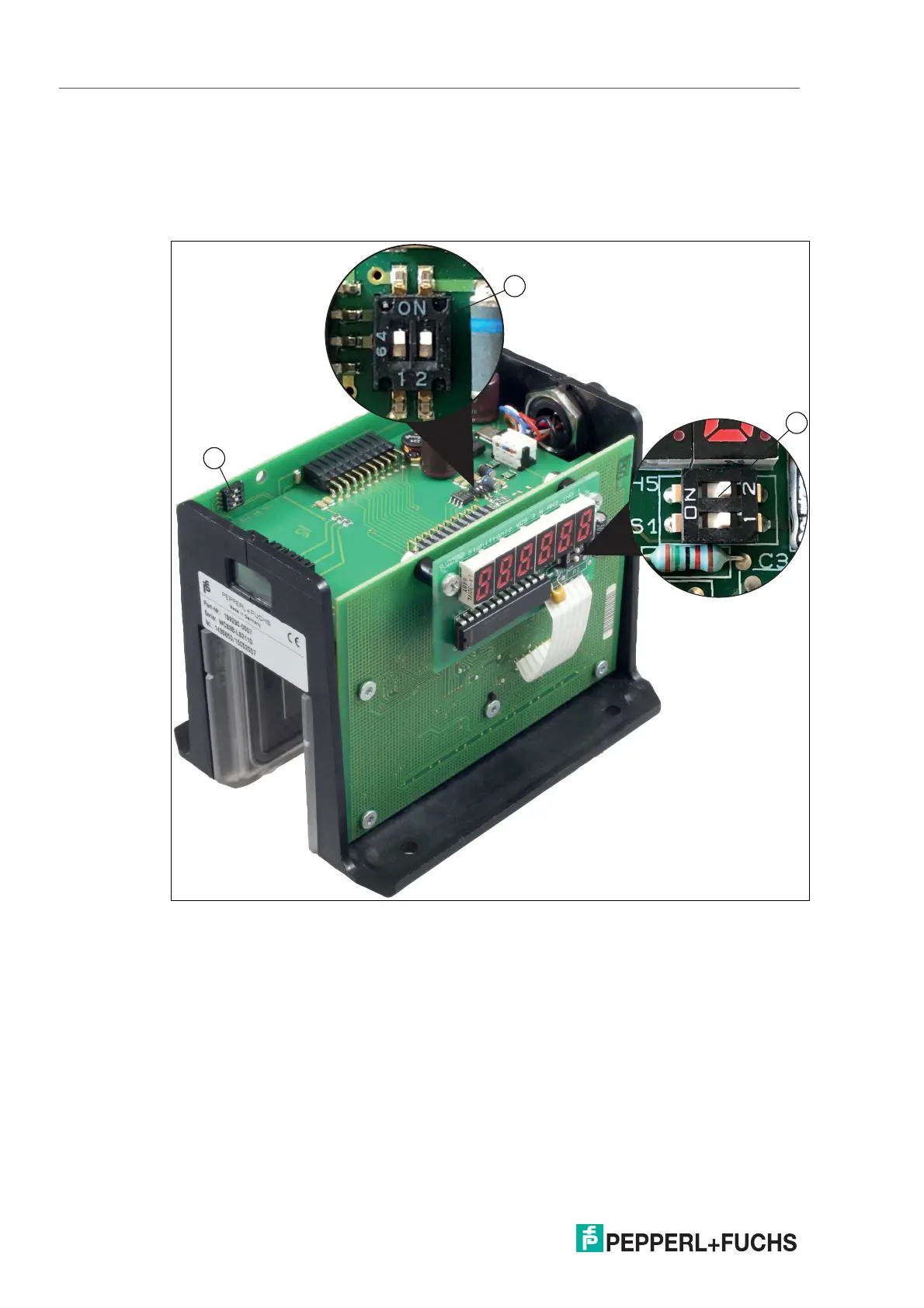

Figure 4.3 Positions of the DIP switches
1. Configuration switch S1, 4-way (address, baud rate)
2. Configuration switch S2, 2-way (terminator)
3. Configuration switch S1D, 2-way (display)
1
3
2
