2. Built-In Installation Site
CAUTION
1. Do not let the weight of the counter rest on the icemaker.
2. Do not install the icemaker in a corner where the door will interfere with other
equipment or where the icemaker cannot be pulled out for service.
Installation Space
Model Height Width Depth
H50IMS-R/L
H50IMW
34" (864 mm) minimum
15" (381 mm) minimum 24" (610 mm) minimum
H50IMS-ADR/ADL
H50IMW-AD
32" (814 mm) minimum
H50IMS-R/L
H50IMW
Min. 34"
(864 mm)
H50IMS-ADR/ADL
H50IMW-AD
Min. 32"
(814 mm)
Min. 15"
(381 mm)

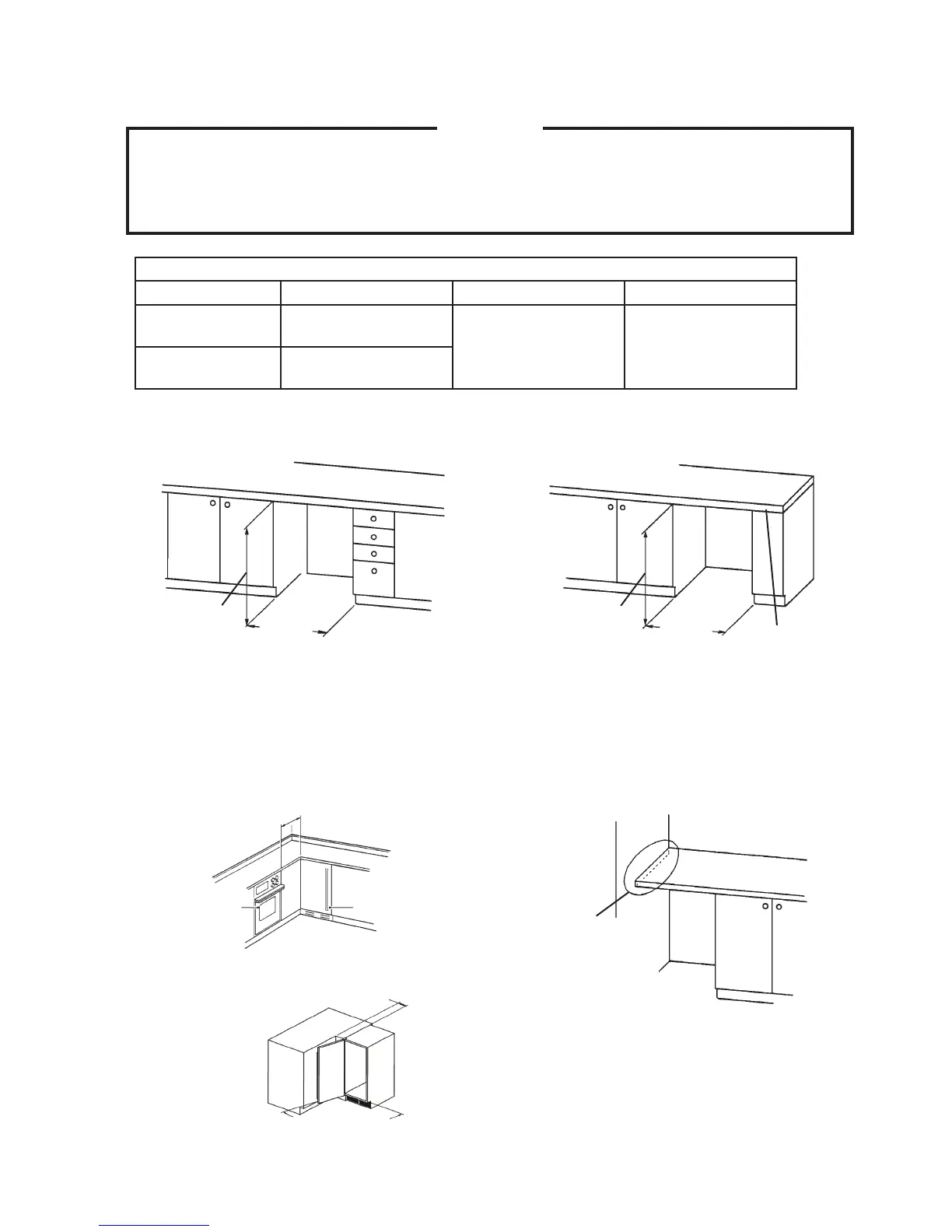

Between Two Cabinets Between a Cabinet and
the End of a Counter
Support: Do not
let the weight of
the counter rest
on the icemaker
Min. 23"
(584 mm)
Oven
Icemaker
In a Corner Between a Cabinet and
a Wall or Tall Cabinet
Secure: Do not
let the weight of
the counter rest
on the icemaker
Min. 15"
(381 mm)
4 7/8" minimum distance from corner to
achieve desired door opening clearance
105° minimum door swing for
convenient access to ice bin
H50IMS-R/L
H50IMW
Min. 34"
(864 mm)
H50IMS-ADR/ADL
H50IMW-AD
Min. 32"
(814 mm)
H50IMS-R/L
H50IMW
Min. 34"
(864 mm)
H50IMS-ADR/ADL
H50IMW-AD
Min. 32"
(814 mm)
