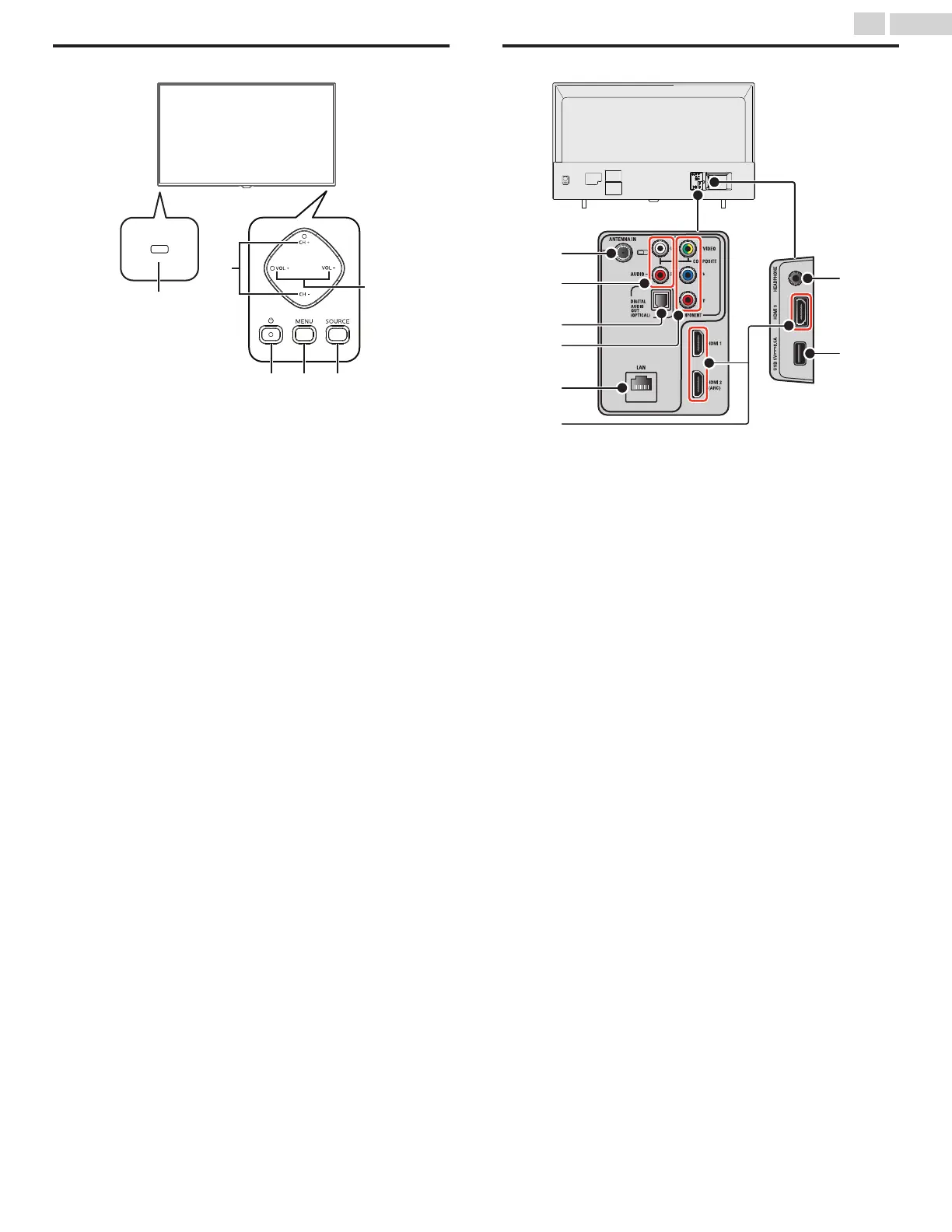

Control panel
cde
a
b
Remote control sensor
Receives IR signal from remote control.
CH + / –
Selects a channel. In the menu screen, moves the cursor
up (+) / down (–).
(POWER)
Turns the TV on or switches the TV into standby mode.
MENU
Opens the main on-screen menu.
SOURCE
Selects connected devices.
VOL + / –
Adjusts the volume. In the menu screen, moves the cursor
left (+) / right (–).
VOL +
: Volume up
VOL –
: Volume down
Terminals
g
k
h
j
i
!
75 ohm cable / Antenna connection
Signal input from an antenna or cable / satellite set-top boxes.
"
Analog audio (L/R) input jacks
Connect analog audio signals from;
–HDMI-DVI / Analog audio (L/R) jacks signal
–Component video / Analog audio (L/R) jacks signal
–Composite video / Analog audio (L/R) jacks signal
–PC connection / Analog audio (L/R) jacks signal with stereo mini 3.
5mm plug audio cable on PC
#
Digital audio output jack
Digital audio (S/PDIF) output to home theaters and other digital audio
systems.
$
Component (Y/Pb/Pr) / Composite video (VIDEO) input jack(s) for
VIDEO
Composite video input (VIDEO) jack is a shared jack with component
video input (Y) jack. Green / Yellow color orientation depends on
model.
%
Ethernet port
For internet connection using an Ethernet cable with an RJ-45
connector.
&
HDMI input jack(s)
Digital audio and video input from high definition digital devices such
as DVD / Blu-ray disc players, cable / satellite set-top boxes, PC’s,
etc.
* For HDMI 2 only
In addition to normal HDMI and HDMI-DVI functionality, it outputs
TV audio to an HDMI-ARC-compliant device, such as a home
theater system.
'
Headphone audio output jack
Headphone 3.5mm stereo jack for personal listening.
(
USB terminal
Data input from USB memory stick only.
Do not connect any device to this terminal such as digital camera,
keyboard, mouse, etc.
14 .English
Continued on next page.
