7. Electrical Diagram

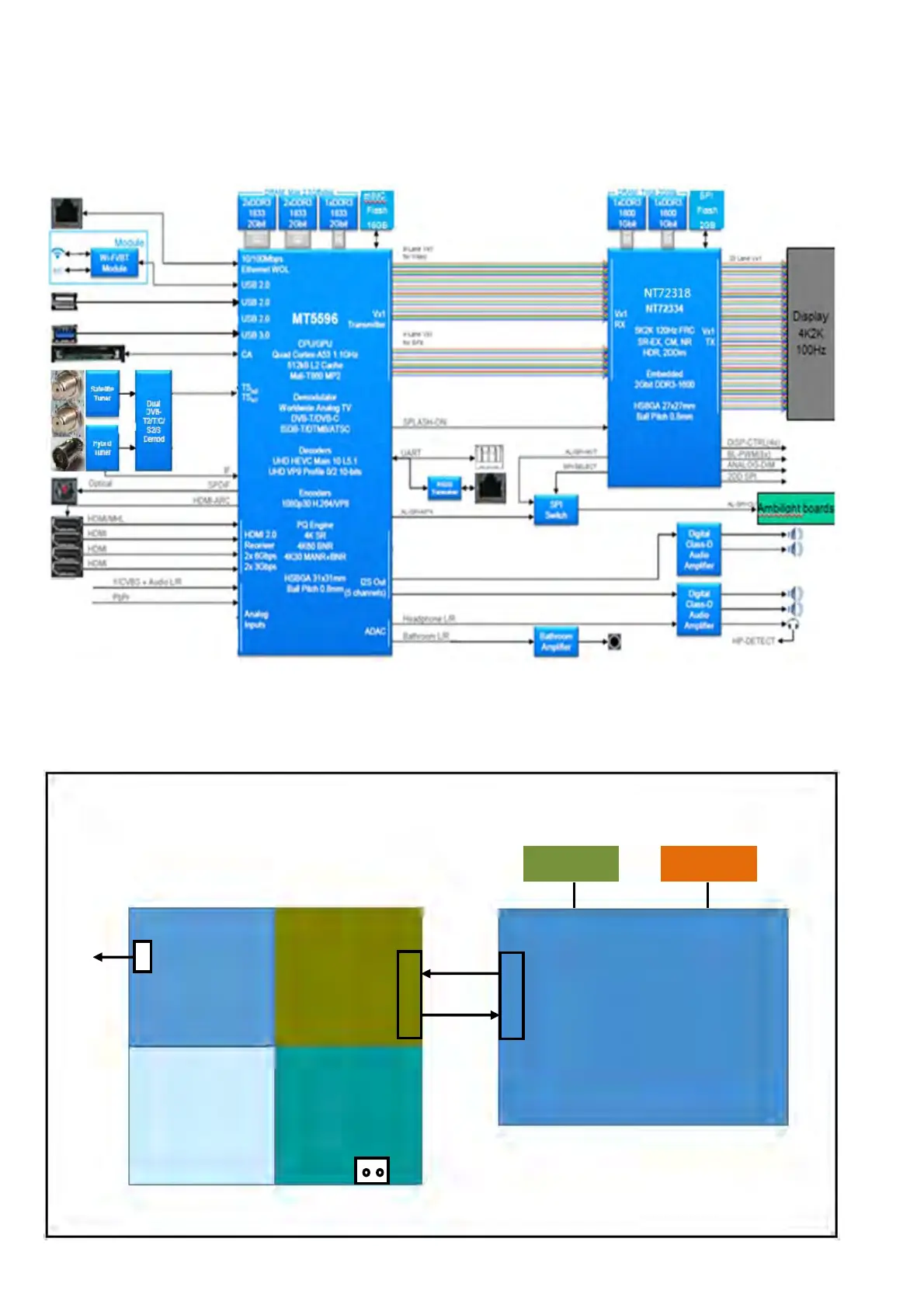

7.1 Block diagram
7.2 Power Supply
Power architecture of this platform.
Platform
MT5596
CN1190
12V
12V
AUDIO
AMP
LVDS
Display power
CN8601
Platform power
DIM
ON/OFF
PS_ON
12V
12V_A
24V_A
3.5_STB
PFC
AC-input +
Main filter
AC IN
