Philips AZ1065 Service Manual

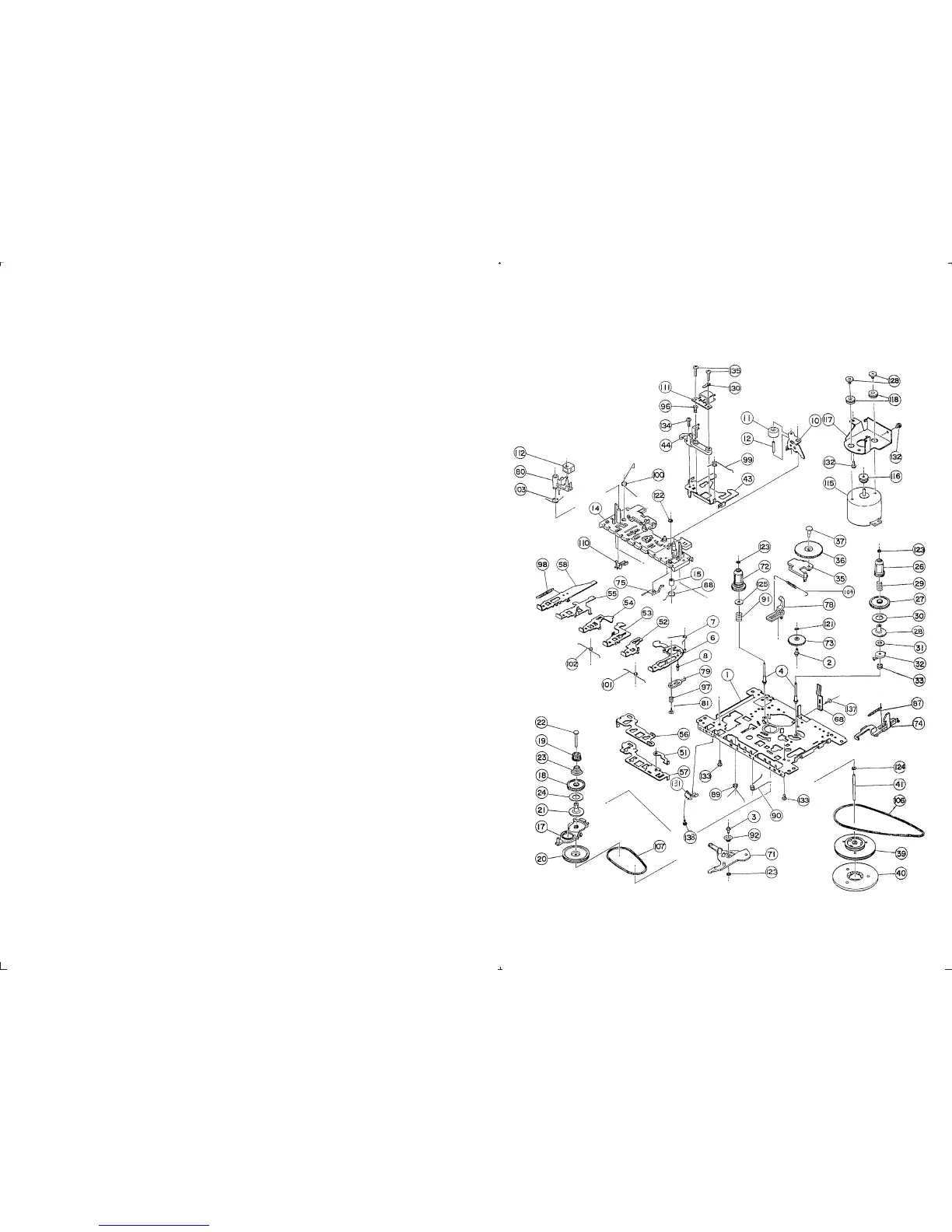

EXPLODED VIEW DIAGRAM - TAPE DECK
12-2 12-2
PCS 107 130
MECHANICAL PARTSLIST - CABINET
401 3140 117 60420 Door Cassette Assy (For AZ1060) 3140 115 27920 Instr Manual (For AZ1060/00/05)
401 3140 117 60430 Door Cassette Assy (For AZ1065) 3140 115 28040 Instr Manual (For AZ1060/14)
402 3140 114 36230 Lens CD 3140 115 28050 Instr Manual (For AZ1060/17)
403 3140 114 36160 Rotary Volume (For AZ1060) 3140 115 27930 Instr Manual (For AZ1065/00)
403 3140 114 36170 Up Down Volume (For AZ1065) 3140 115 28060 Instr Manual (For AZ1065/01/10/11)
404 3140 117 60410 Front Panel Assy (For AZ1060) 3140 115 28080 Instr Manual (For AZ1065/17)
404 3140 117 60450 Front Panel Assy (For AZ1065)
406 3140 114 36130 Bracket Didital LCD
407 4822 492 11776 Spring Cass Door
408 3140 117 60370
Front Cab. Assy Grill (For AZ1060)
408 3140 117 60690
Front Cab. Assy Grill (For AZ1065)
409 4822 691 10612 Tape Deck
411 3140 111 20800 Spring Recording
412 3140 114 36750 Keyset Cass
413 3140 114 20430 Bracket Recording
414 3140 114 31230 CD Mounting Frame
416 4822 529 10387 Damper Rubber (40 DEG)
417 4822 529 10386 Damper Rubber (30 DEG)
418 3103 309 05290 CD DA11 Drive Assy
419 4822 442 01096 CD Drive Cover
421 4822 529 10322 Damper Assy
422 3140 114 36710 Cabinet Top
423 3140 114 36730 Knob DBB
424 3140 114 36740 Knob Mode
426 3140 117 60400
CD Door Assy (For AZ1060)
426 3140 117 60440
CD Door Assy (For AZ1065)
427 3140 111 00750 Spring CD
428 4822 402 10724 Bracket Handle
429 3140 114 36720 Handle
431 3140 114 36700 Cabinet Rear
432 3140 118 71570 Antenna
433 3140 111 21320 Contact Plate
434 4822 492 51961 Spring Compression
436 4822 492 51733 Spring Compression
437 3140 114 36690 Door Battery
438 3139 228 87580 Remote RC331402/01 (For AZ1065)
439 4822 321 10249 Mains Cord (For -/00/01/11/14)
439 4822 321 10886 Mains Cord (For -/05)
439 4822 321 10954 Mains Cord (For -/10)
Note: Only these parts mentioned in the list are
439 4822 321 11466 Mains Cord (For -/17) normal service parts.
MECHANICAL PARTSLIST - TAPE DECK
10 4822 528 70849 Pinch Roller Arm (B) 110 4822 278 90721 Leaf Switch
11 4822 528 70695 Pinch Roller Assy 111 4822 249 30218 MS18R-AKONI
74 4822 403 70968 Eject Hook (A) 112 4822 249 40306 E. Head
106 4822 358 31325 Main Belt 45.2 x 1.2 115 4822 361 21565 Motor EG-530AD-9B
107 4822 358 31124 Sub Belt 44.7 x 1.2 116 4822 528 81497 Motor Pulley
Note Only these parts mentioned in the list are
normal service parts.
