Philips D2935 Service Manual

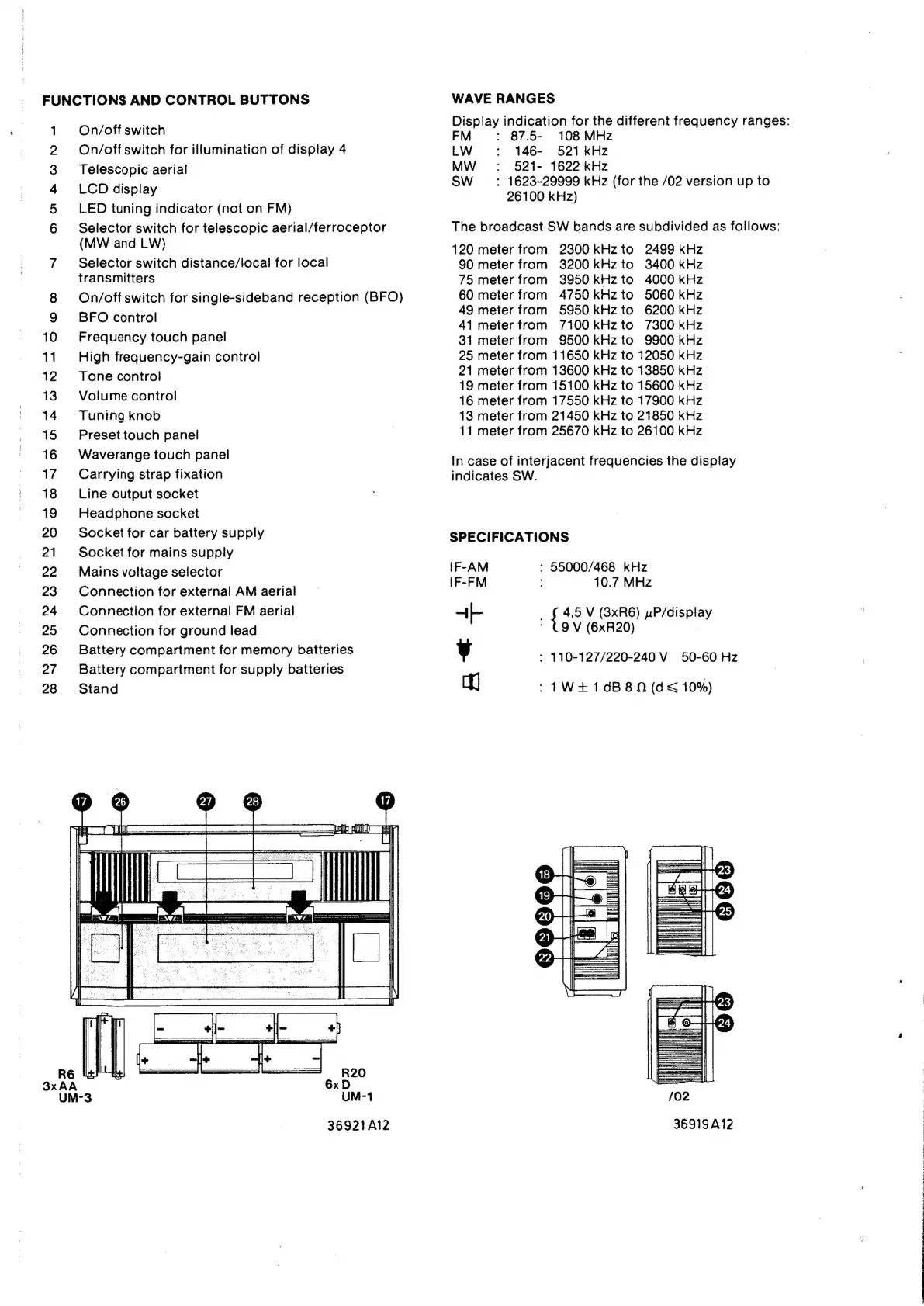

FUNCTIONS AND CONTROL BUTTONS
orth WDM —
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
On/off switch
On/off switch for illumination of display 4
Telescopic aerial
LCD display
LED tuning indicator (not on FM)
Selector switch for telescopic aerial/ferroceptor
(MW and LW)
Selector switch distance/loca! for local
transmitters
On/off switch for single-sideband reception (BFO)
BFO control
Frequency touch panel
High frequency-gain control
Tone control
Volume control
Tuning knob
Preset touch panel
Waverange touch panel
Carrying strap fixation
Line output socket
Headphone socket
Socket for car battery supply
Socket for mains supply
Mains voltage selector
Connection for external AM aerial
Connection for external FM aerial
Connection for ground lead
Battery compartment for memory batteries
Battery compartment for supply batteries
Stand
36921 A12
WAVE RANGES
Display indication for the different frequency ranges:
FM : 87.5- 108 MHz
LW: 146- «521 kHz
MW : 521- 1622 KHz
SW — : 1623-29999 kHz (for the /02 version up to
26100 kHz)
The broadcast SW bands are subdivided as follows:
120 meter from 2300 kHzto 2499 kHz
90 meter from 3200 kHz to 3400 kHz
75 meter from 3950 kHz to 4000 kHz
60 meter from 4750 kHzto 5060 kHz
49 meter from 5950 kHz to 6200 kHz
41 meter from 7100 kHzto 7300 kHz
31 meter from 9500 kHzto 9900 kHz
25 meter from 11650 kHz to 12050 kHz
21 meter from 13600 kHz to 13850 kHz
19 meter from 15100 kHz to 15600 kHz
16 meter from 17550 kHz to 17900 kHz
13 meter from 21450 kHz to 21850 kHz
11 meter from 25670 kHz to 26100 kHz
In case of interjacent frequencies the display
indicates SW.
SPECIFICATIONS
IF-AM - 55000/468 kHz
IF-FM 10.7 MHz
4 4,5 V (3xR6) Hlaleplay
9 V (6xR20)
¥ - 110-127/220-240 V 50-60 Hz
ae > 1W+1dB8N (d< 10%)
36919 A12
