Philips MCD183 Service Manual

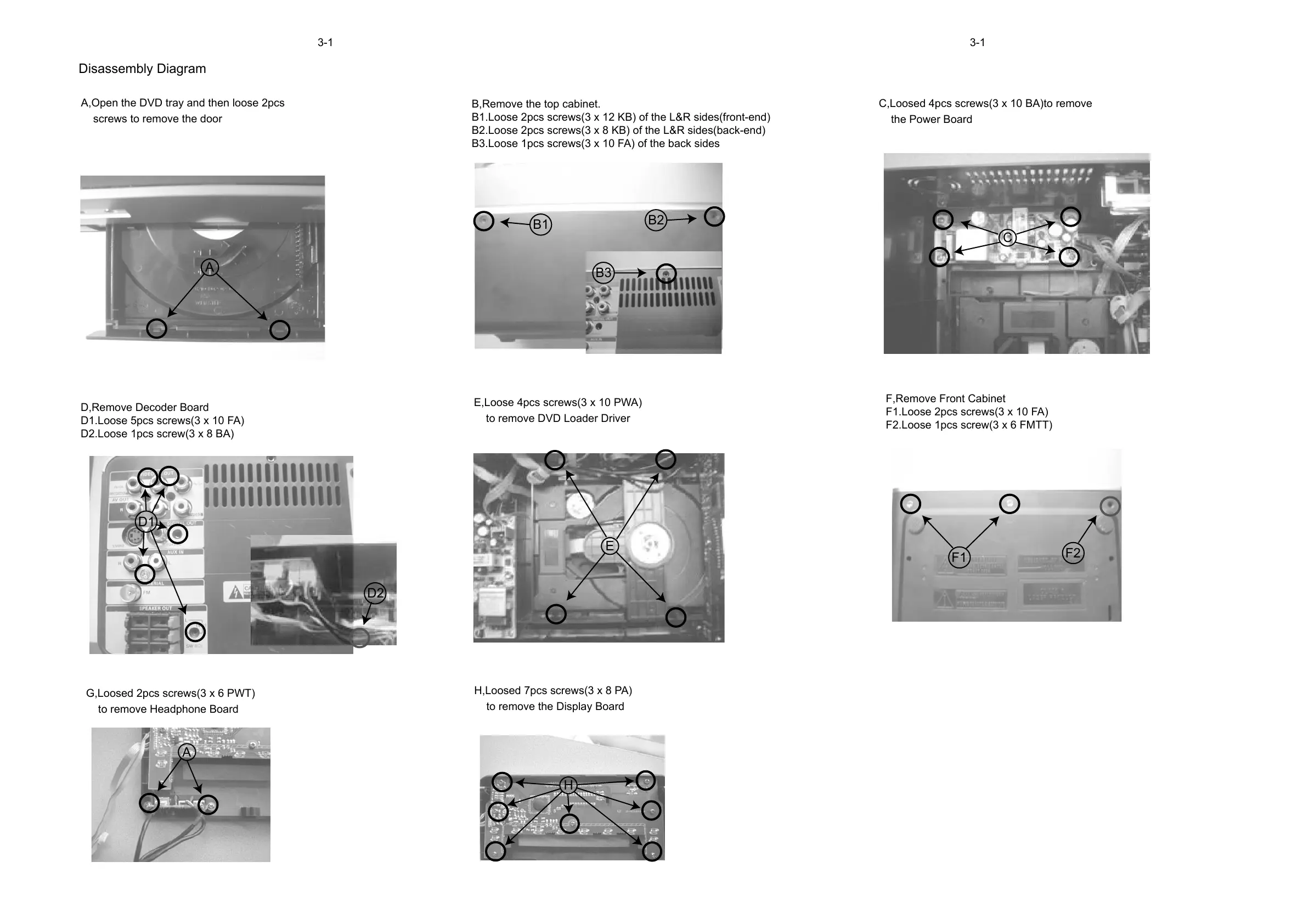

Disassembly Diagram
3-1
3-1
B,Remove the top cabinet.
B1.Loose 2pcs screws(3 x 12 KB) of the L&R sides(front-end)
B2.Loose 2pcs screws(3 x 8 KB) of the L&R sides(back-end)
B3.Loose 1pcs screws(3 x 10 FA) of the back sides
C,Loosed 4pcs screws(3 x 10 BA)to remove
the Power Board
D,Remove Decoder Board
D1.Loose 5pcs screws(3 x 10 FA)
D2.Loose 1pcs screw(3 x 8 BA)
E,Loose 4pcs screws(3 x 10 PWA)
to remove DVD Loader Driver
F,Remove Front Cabinet
F1.Loose 2pcs screws(3 x 10 FA)
F2.Loose 1pcs screw(3 x 6 FMTT)
G,Loosed 2pcs screws(3 x 6 PWT)
to remove Headphone Board
A,Open the DVD tray and then loose 2pcs
screws to remove the door
H,Loosed 7pcs screws(3 x 8 PA)
to remove the Display Board
A
C
E
D1
A
H
D2
B1
B2
B3
F1
F2
All manuals and user guides at all-guides.com

Philips MCD183 Specifications

Sound

output power	1800 W PMPO, 2 x 25 W + 50 W RMS
sound enhancement	digital sound control 4 modes, Dynamic Bass Boost, Dolby Digital
speaker drivers	3" woofer

Power

power supply	100 - 240V AC, 50/60Hz
subwoofer power	100W

Weight and Dimensions

gross weight	8.5 kg
main speaker dimensions	135 x 150 mm
main speaker height	255 mm
main unit depth	270 mm
packaging depth	350 mm
main unit height	125 mm
packaging height	314 mm
main unit width	200 mm
packaging width	545 mm
subwoofer depth	250 mm
subwoofer height	255 mm
subwoofer width	160 mm
