5 Wall mount
Note
• Improper wall mounting may result in accident, injury or
damage. If you have any query, contact Consumer Care
in your country.
• Before wall mounting, make sure the wall can support
the weight of your Soundbar.
• Before wall mount, you need not remove the rubber
feet at the bottom of the Soundbar, otherwise the
rubber feet cannot be fixed back.
• Depending on the type of wall mounting your Soundbar,
make sure that you use screws of a suitable length and
diameter.
• Please check whether the USB port on the back of the
Soundbar is connected to a USB device. If it is found
that the connected USB device aects the wall-mount,
you need to use another USB device of the appropriate
size.
Screw length/diameter
3.5-4 mm
4 mm
> 25 mm
Suggested wall mounting height
You are recommended to install the TV first
before wall mounting the soundbar. With a
TV preinstalled, wall mount the soundbar
50mm/2.0’’ in distance from the bottom of the
TV.

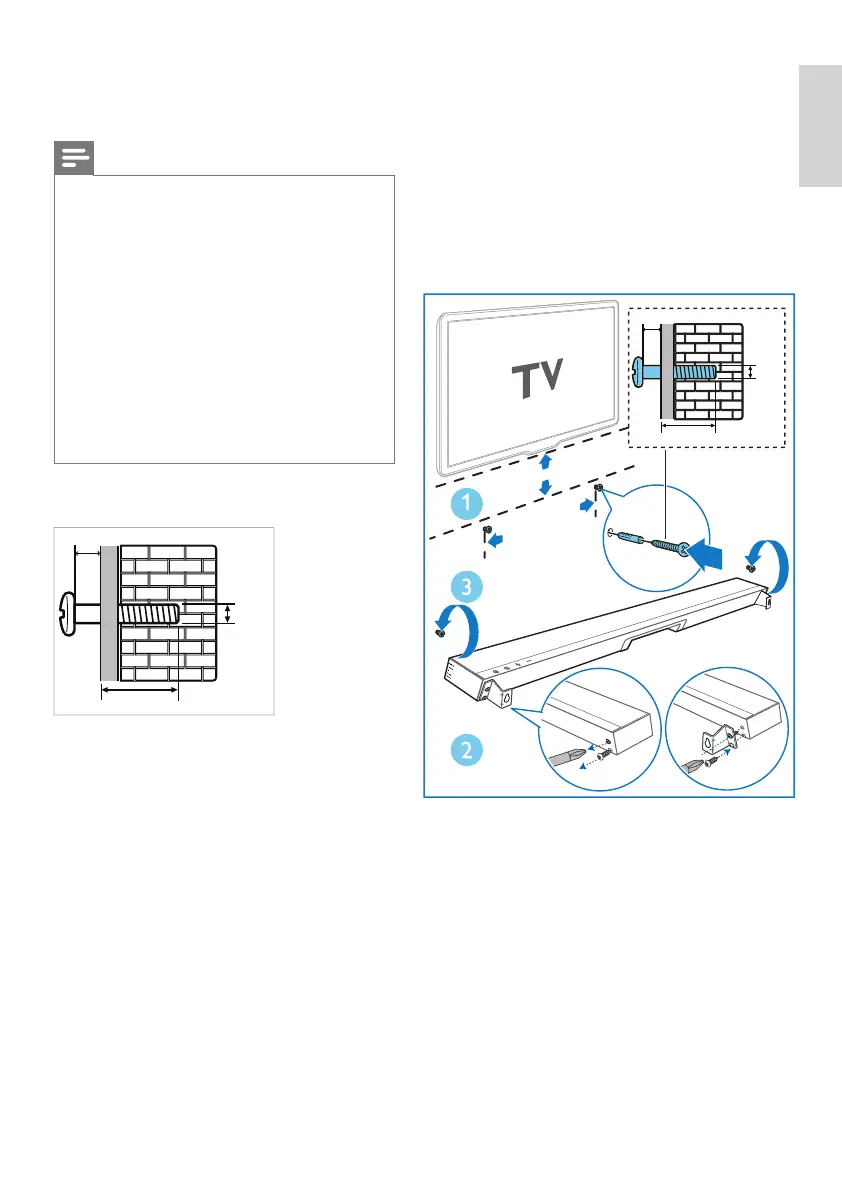

1 Drill 2 parallel holes (Ø 3-8mm each
according to wall type) on the wall. The
distance between the holes should be
611mm / 24”.
Secure the dowels and screws in the
holes.
2 Remove the screws (x4) from the main
unit.
Attach the wall brackets (x2) to the
main unit with the screws removed
from the main unit.
3 Hang the Soundbar on the fastening screws.
3.5-4 mm/0.14"-0.16"
4 mm/
0.16"
> 25 mm/0.98"
~ 50 mm/2.0"
611 mm / 24"
