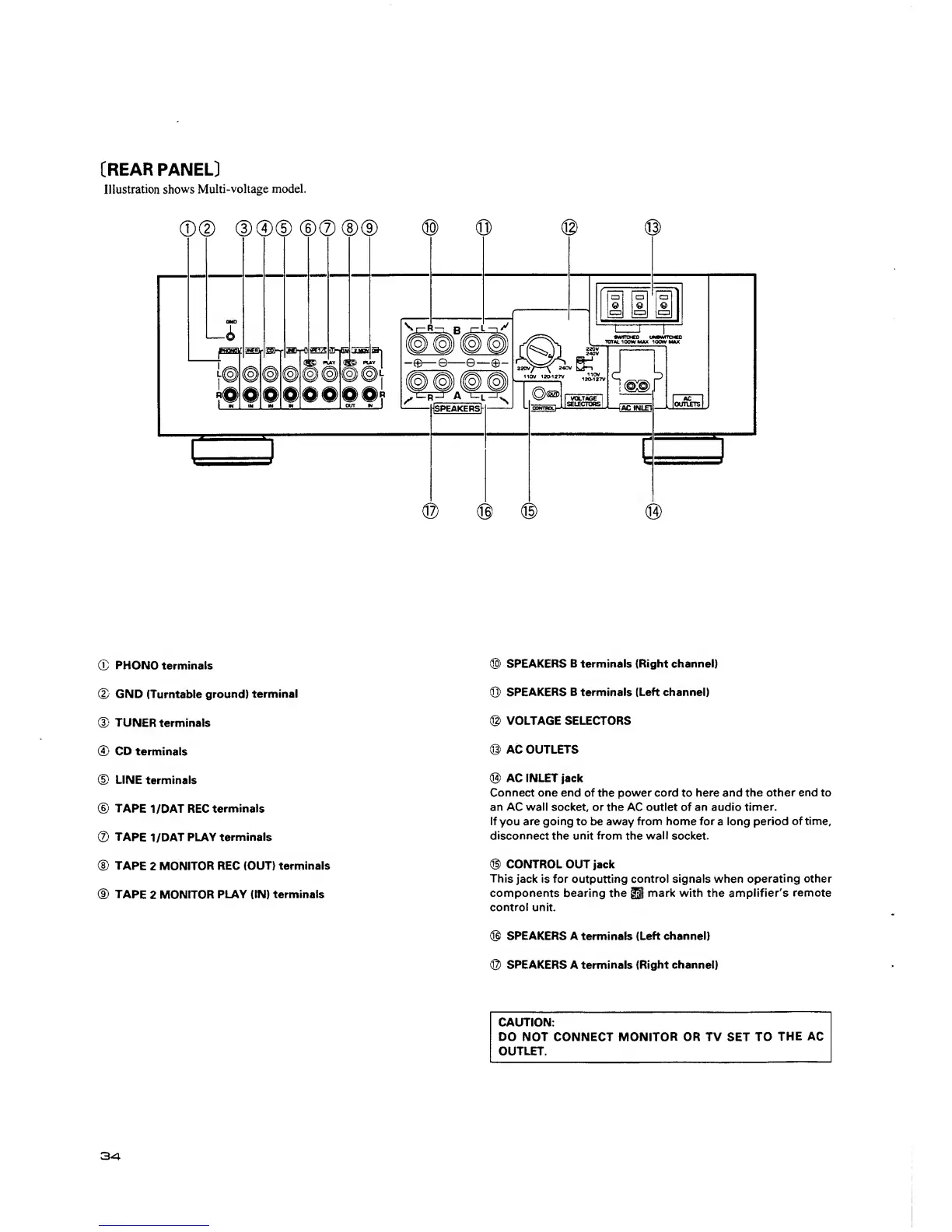

[REAR PANEL]
Illustration
shows
Multi-voltage
model.
(D
PHONO
terminals
(D
GND (Turntable ground)
terminal
®
TUNER
terminals
®
CD
terminals
®
LINE
terminals
(D
TAPE
1/DAT REC
terminals
®
TAPE 1/DAT PLAY
terminals
(D
TAPE
2
MONITOR
REC (OUT) terminals
(D
TAPE
2
MONITOR
PLAY (IN) terminals
®
SPEAKERS
B
terminals
(Right
channel)
®
SPEAKERS
B
terminals
(Left
channel)
@
VOLTAGE SELECTORS
©
AC
OUTLETS
®
AC INLET jack
Connect
one end of
the
power cord
to
here and
the
other end
to
an
AC wall
socket
or the
AC
outlet of an audio
timer.
If
you
are going
to be away from home
for
a long
period
of time,
disconnect
the
unit from
the
wall
socket.
®
CONTROL OUT jack
This jack
is
for
outputting
control signals when
operating
other
components bearing
the
|@|
mark with the amplifier's
remote
control
unit
®
SPEAKERS
A
terminals
(Left
channel)
®
SPEAKERS
A terminals
(Right channel)
CAUTION:
DO NOT CONNECT MONITOR OR TV SET TO
THE AC
OUTLET.
3
^
