106
2. C
ompressor checkin
g

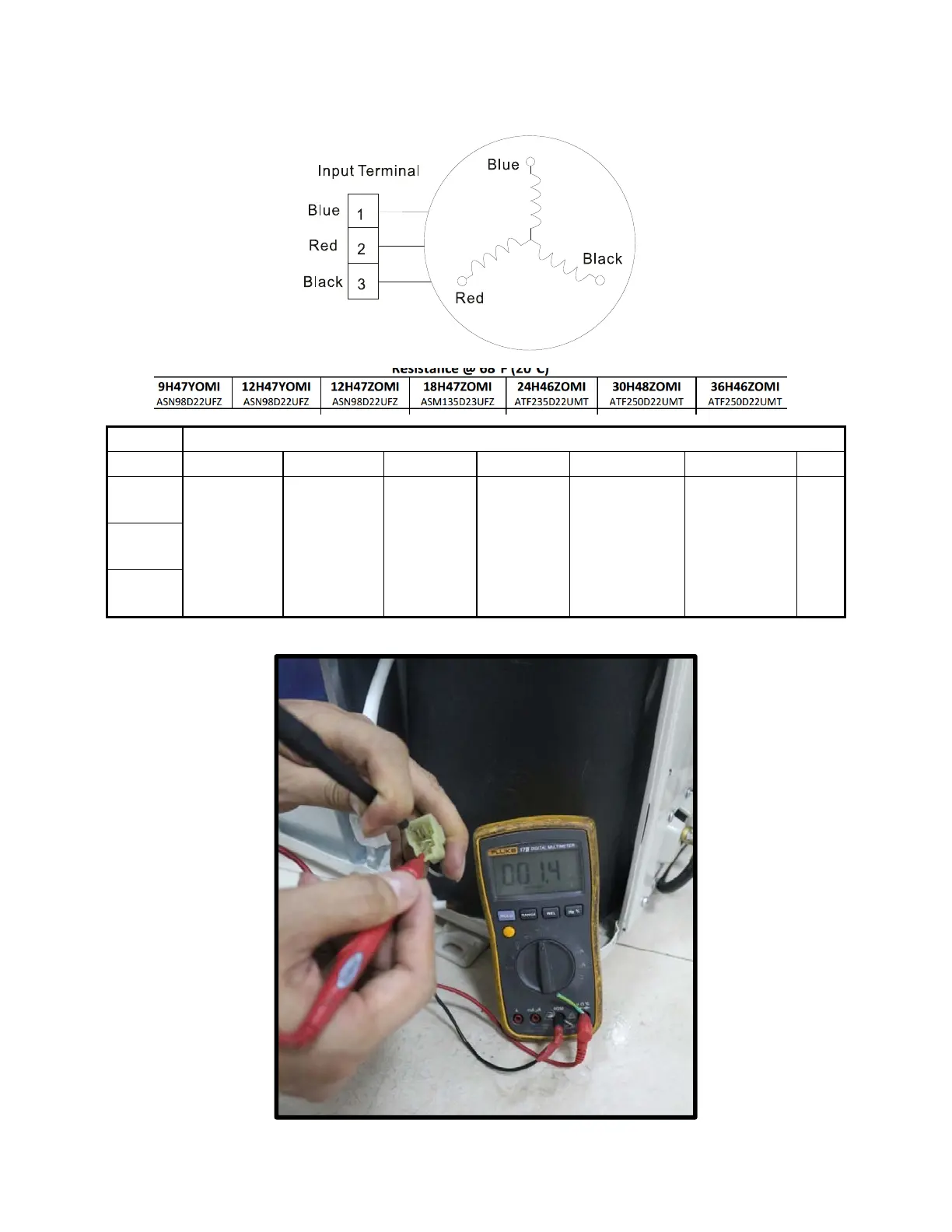

Measure the resistance value of each winding by using the tester.
Position Resistance Value
ASN98D22UFZ ASM135D23UFZ ATF235D22UMT ATF25 0D22UMT
ATF310D43UMT ATQ420D1UMU
Blue -
Red
1.57
Ω
1.
75
Ω
0.
75
Ω
0
.75 Ω
0.65 Ω 0.38Ω
Blue -
Black
Red -
Blue
