Pioneer CB018GMFILCFHD User Manual

22

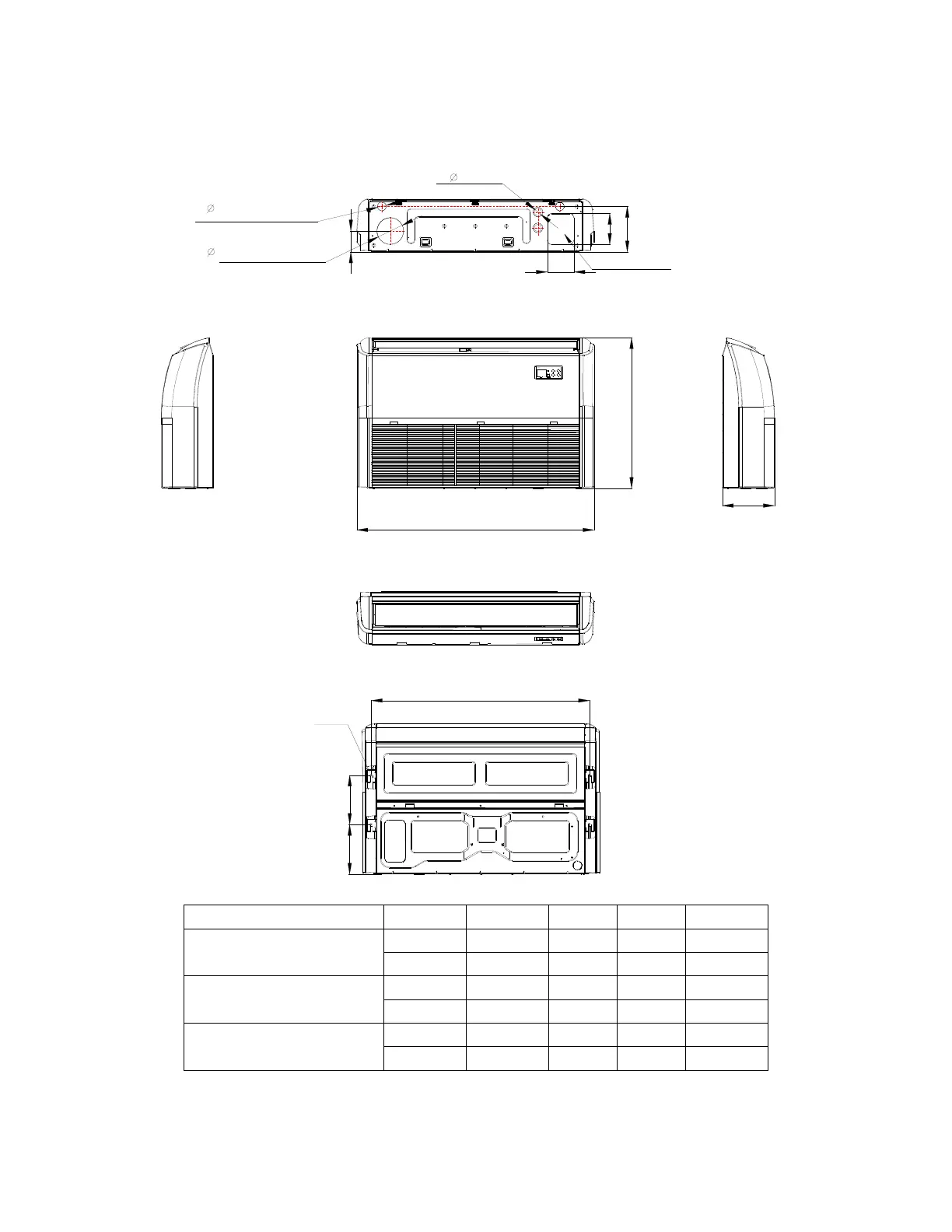

Ceiling-floor Units (18K-48K)
A
B
220
222
C
120
2
-
4
0
120
140
2
-
3
3
Wiring connection port
204
94
Fresh air intake
Drain discharge port
Refrigerant pipe hole
Hanging arm
D
Capacity (Btu/h) A B C D
18K / 24K
mm 1068 675 235 983
inch 42.05 26.57 9.25 38.70
36K
mm 1285 675 235 1200
inch 50.59 26.57 9.25 47.24
48K
mm 1650 675 235 1565
inch 64.96 26.57 9.25 61.61

Pioneer CB018GMFILCFHD Specifications

General

Brand	Pioneer
Model	CB018GMFILCFHD
Category	Heat Pump
Language	English
