7.2 DIAGNOSIS
7.2.1 DISASSEMBLY
- Removing the Tuner Amp Unit(Fig.2)
Remove the two screws.
Remove the three screws.
Remove the screw.
Straighten the tabs at four locations indi-
cated.
Remove the Tuner Amp Unit.
-
Removing the Case Unit(not shown)
1.Remove the Case Unit.
- Removing the Panel Assy(Fig.1)
Disengage the stoppers at two locations.
Remove the Panel Assy.
- Removing the CD Mechanism Module
(not shown)
1.Remove the four screws.
2.Disconnect the connector, and then remove the
CD Mechanism Module.

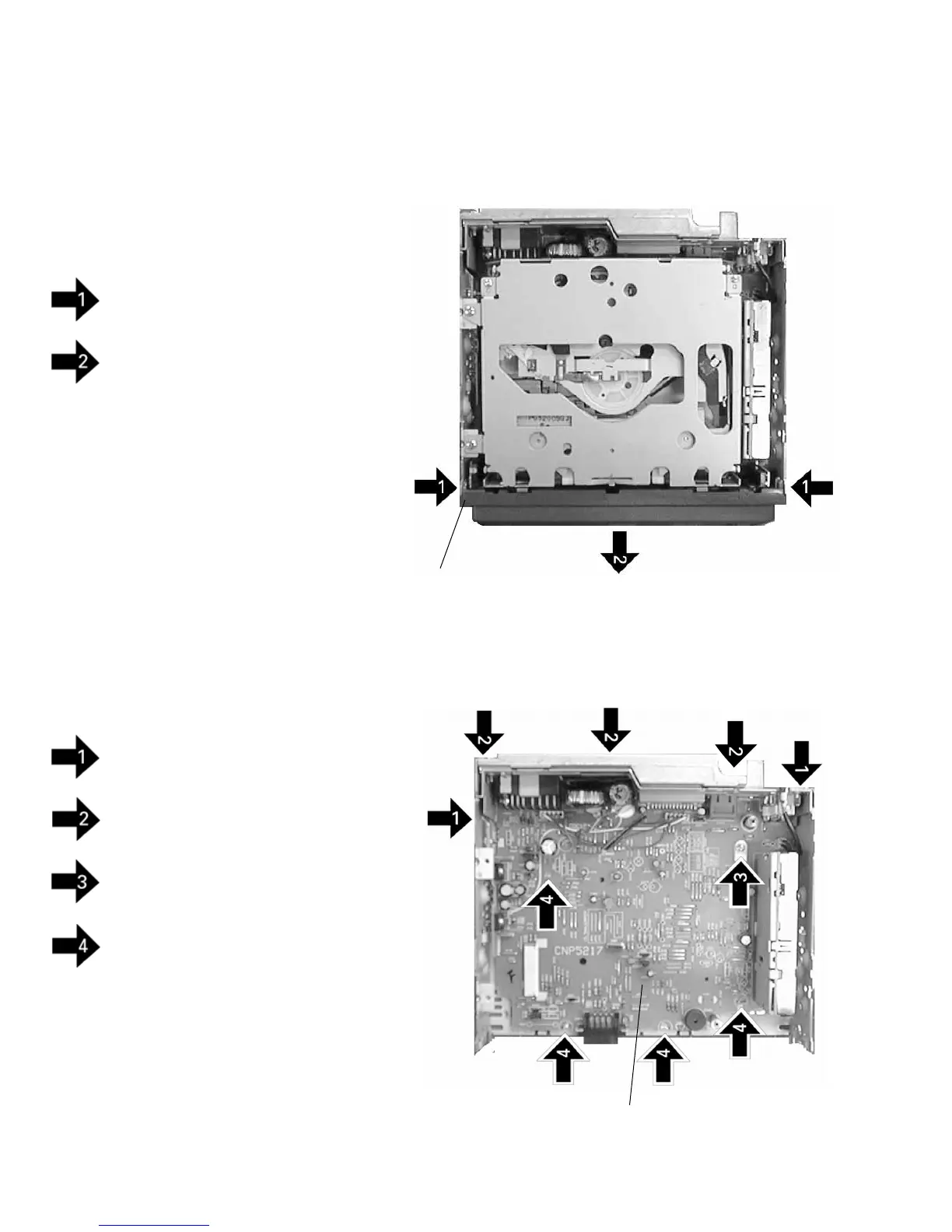

Fig.1
Fig.2
Panel Assy
Tuner Amp Unit
