2. Fastening the unit to the factory radio mounting bracket.
DIN Rear-mount
Installation using the screw holes on the side of the unit
1. Remove the frame.
<ENGLISH>
Removing the Unit
Installation
Note:
• Before finally installing the unit, connect the
wiring temporarily, making sure it is all connect-
ed up properly, and the unit and the system work
properly.
• Use only the parts included with the unit to ensure
proper installation. The use of unauthorized parts
can cause malfunctions.
• Consult with your nearest dealer if installation
requires the drilling of holes or other modifica-
tions of the vehicle.
• Install the unit where it does not get in the dri-
ver’s way and cannot injure the passenger if there
is a sudden stop, like an emergency stop.
• The semiconductor laser will be damaged if it
overheats, so don’t install the unit anywhere hot
— for instance, near a heater outlet.
• If installation angle exceeds 60° from horizontal,
the unit might not give its optimum performance.

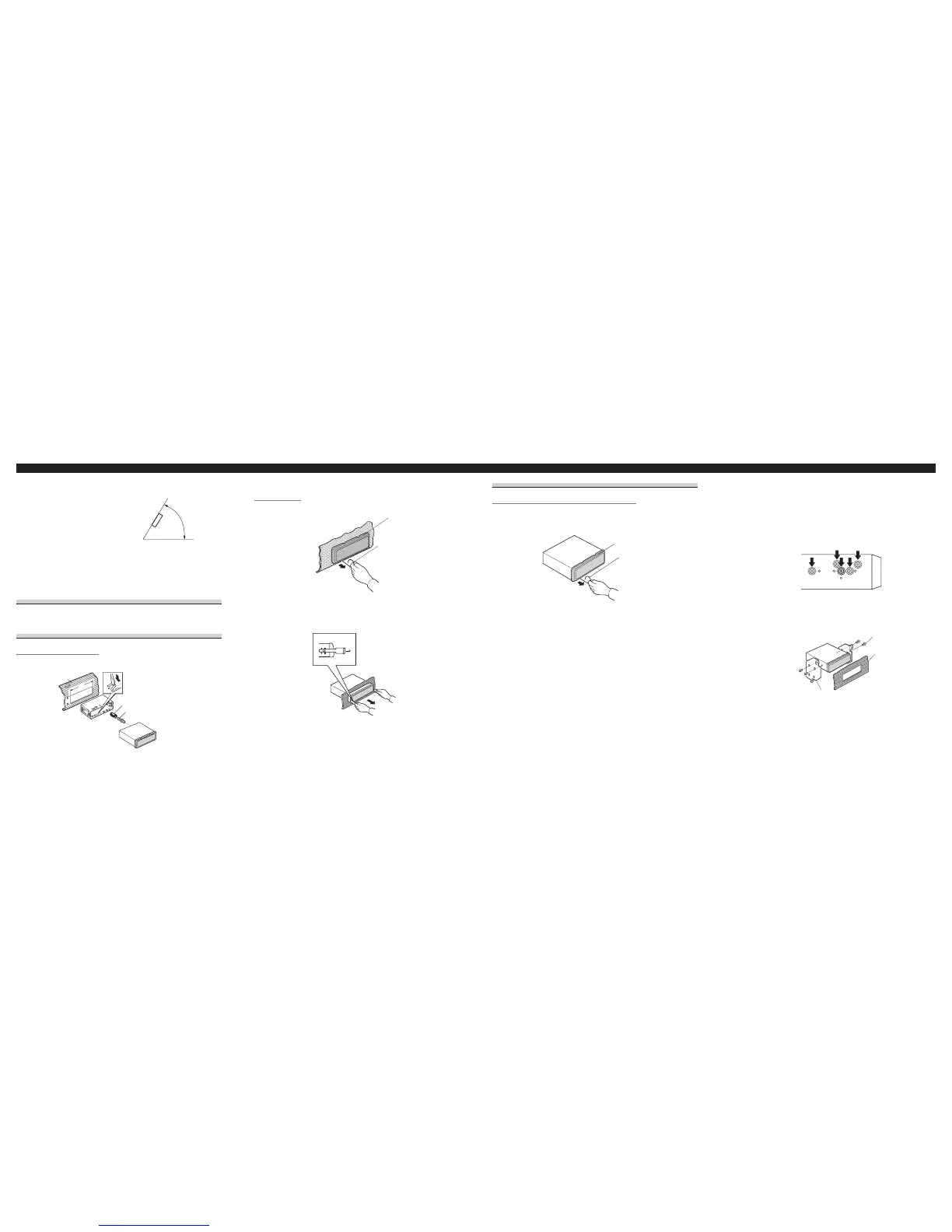

DIN Front/Rear-mount
This unit can be properly installed either from “Front” (conventional DIN Front-mount) or “Rear” (DIN
Rear-mount installation, utilizing threaded screw holes at the sides of unit chassis). For details, refer to the
following illustrated installation methods.
DIN Front-mount
Installation with the rubber bush
Dashboard
Holder
After inserting the holder into the dash-
board, then select the appropriate tabs
according to the thickness of the dash-
board material and bend them.
(Install as firmly as possible using the
top and bottom tabs. To secure, bend the
tabs 90 degrees.)
Rubber bush
Screw
Frame
Insert the release pin into the hole in
the bottom of the frame and pull out
to remove the frame.
(When reattaching the frame, point
the side with a groove downwards
and attach it.)
Insert the supplied extraction keys
into the unit, as shown in the fig-
ure, until they click into place.
Keeping the keys pressed against
the sides of the unit, pull the unit
out.
Frame
Insert the release pin into the hole
in the bottom of the frame and pull
out to remove the frame.
(When reattaching the frame, point
the side with a groove downwards
and attach it.)
Select a position where the screw holes of the bracket and the
screw holes of the head unit become aligned (are fitted), and
tighten the screws at 2 places on each side. Use either truss
screws (5 × 8 mm) or flush surface screws (5 × 9 mm),
depending on the shape of the screw holes in the bracket.
Screw
Factory radio mounting bracket
Dashboard or Console
To Next Page
