43
DEH-2300,230,23

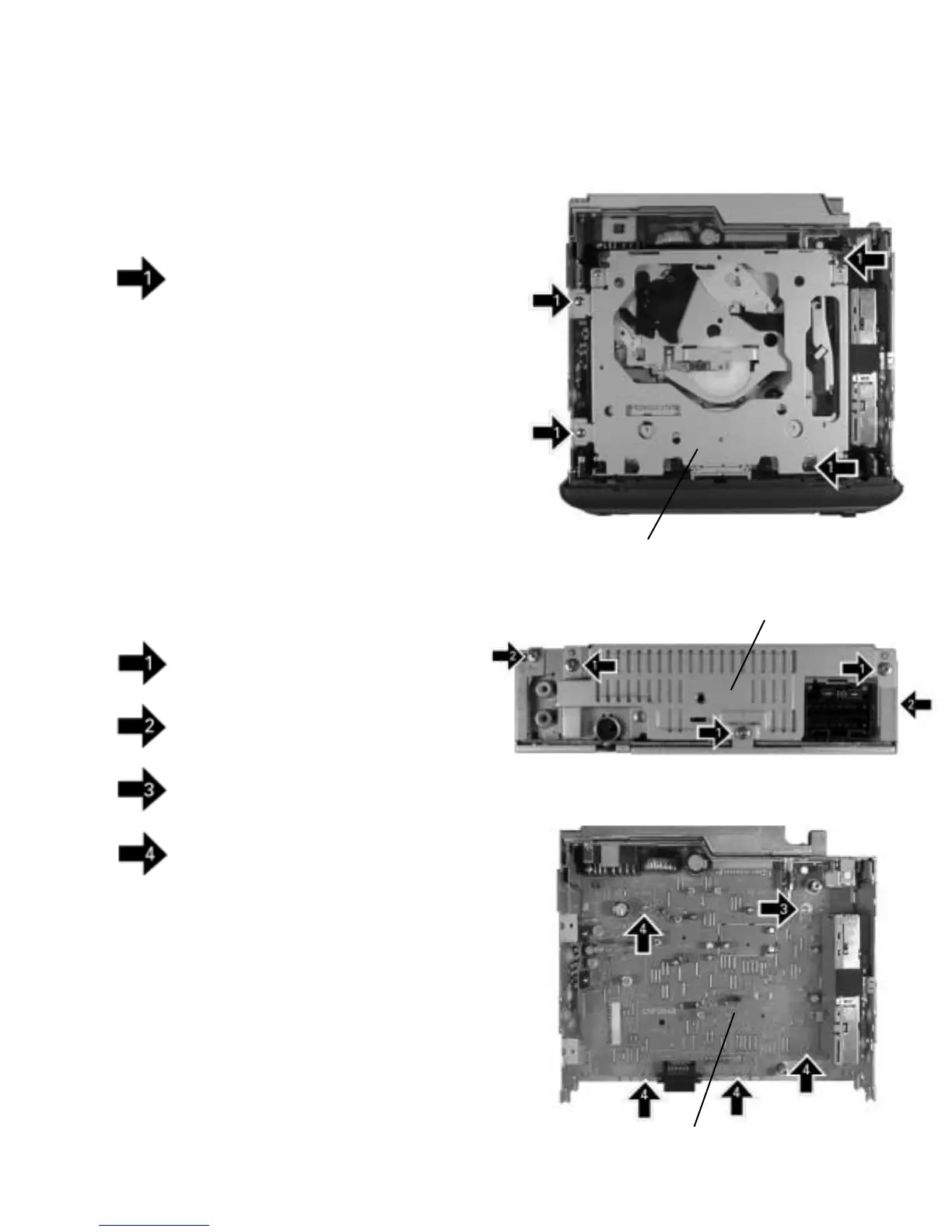

- Removing the Tuner Amp Unit
Remove the three screws and then remove
the Cover. (Fig.2)
Remove the two screws. (Fig.2)
Remove the screw. (Fig.3)
Straight the tabs at fore locations indicated
and then remove the Tuner Amp Unit.
(Fig.3)
- Removing the Case Unit (not shown)
1. Remove the Case Unit.
- Removing the CD Mechanism Module (Fig.1)
Remove the four screws.
Disconnect the connector and then remove the CD
Mechanism Module (not shown).
- Removing the Panel Assy (not shown)
1.Disconnect the two stoppers and then remove the
Panel Assy.
Fig.1
Fig.2
Fig.3
Tuner Amp Unit
Cover
CD Mechanism Module
7.1.2 DISASSEMBLY
