Pioneer F-208 Service Manual

F-208
21
8.2 SPECIFICATIONS

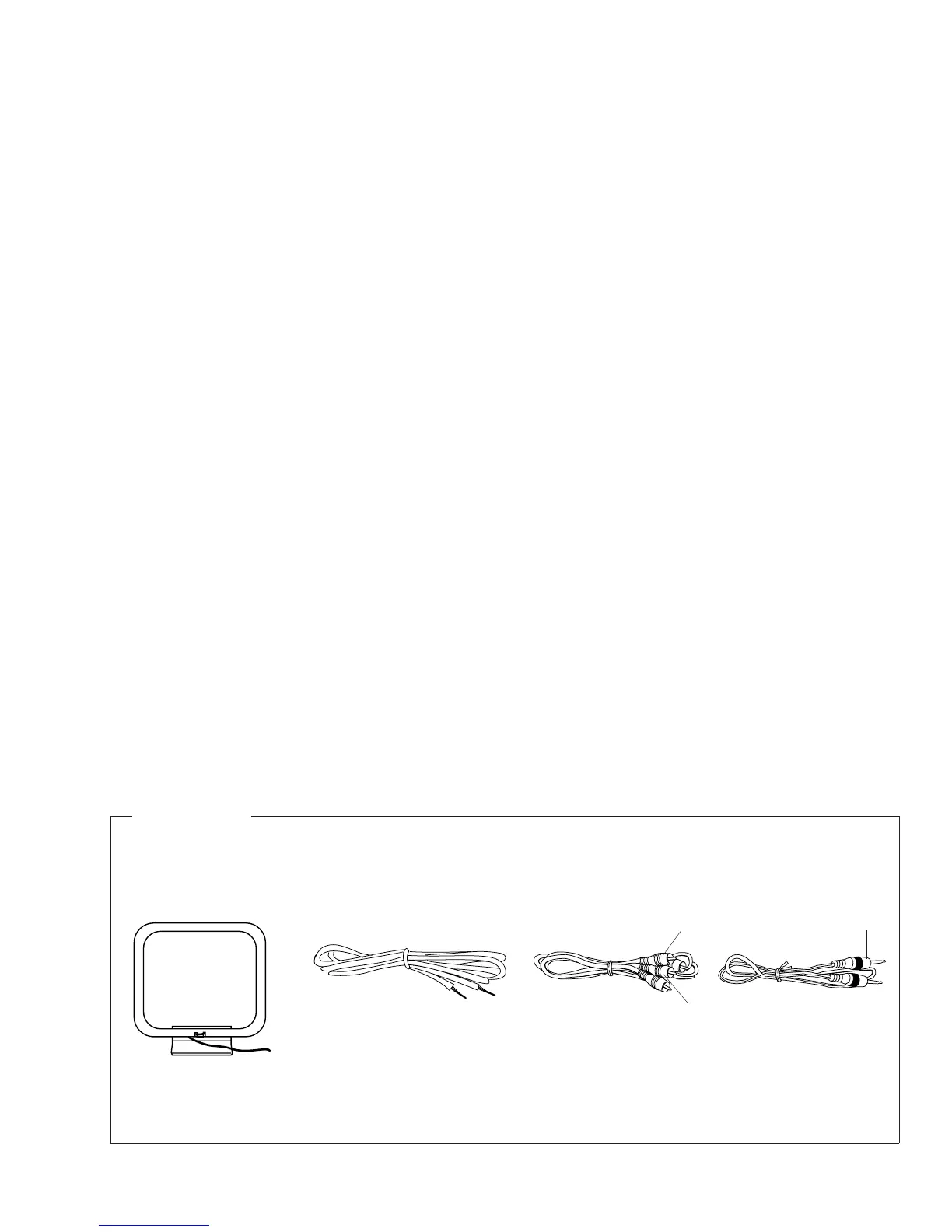

FM T-type antenna
(ADH7007)
AM loop antenna
(ATB7009)
Audio cord
(PDE1249)
L=1m
Control cord
(PDE1247)
L=1m
Accessories
FM tuner section
Frequency Range .............. (HL) 87.5 MHz to 108 MHz
(SDB) 87.5 MHz to 108 MHz
(Step 50 kHz or 100 kHz)
Usable Sensitivity
NORMAL .......... Mono: 13.2 dBf, IHF(1.3 µ V / 75 Ω)
50 dB Quieting Sensitivity
NORMAL ......... Mono: 20.2 dBf, IHF (2.8 µ␣ V / 75 Ω)
Stereo: 36.2 dBf, IHF (17.7 µ␣ V / 75 Ω)
Signal-to-Noise Ratio ............. Mono: 76 dB (at 85 dBf)
Stereo: 73 dB (at 85 dBf)
Distortion ................................... Stereo: 0.5 % (1 kHz)
Alternate Channel Selectivity ........... 70 dB (±400 kHz)
Stereo Separation .................................. 40 dB (1 kHz)
Frequency Response ............. ±1 dB (30 Hz to 15 kHz)
Image Response Ratio ....................................... 40 dB
IF Response Ratio .............................................. 90 dB
Antenna Input ................................... 75 Ω unbalanced
AM tuner section
Frequency Range .........................................................
(HL) 531 kHz to 1,602 kHz (Step 9 kHz)
(SDB) 531 kHz to 1,602 kHz (Step 9 kHz)
(SDB) 530 kHz to 1,700 kHz (Step 10 kHz)
Sensitivity (IHF, Loop antenna) ................. 350 µ␣ V / m
Selectivity .............................................. 33 dB(±9 kHz)
Signal-to-Noise Ratio .......................................... 51 dB
Image Response Ratio ....................................... 35 dB
IF Response Ratio .............................................. 51 dB
Antenna ................................................. Loop Antenna
Audio section
Output (Level/Impedance)
FM (100 % MOD) ................................. 668 mV / 1k Ω
AM (30 % MOD) ................................... 150 mV / 1k Ω
Miscellaneous
Power Requirements ............. (HL) AC 220-230 Volts~
50 / 60 Hz
(SDB) AC 110/120-127/220/240 V
(switchable), 50 / 60 Hz
Power Consumption ........................................... 10 W
Power Consumption in standby mode .................. 1 W
Dimensions ................. 420 (W) x 78 (H) x 287 (D) mm
Weight (without package) .................................. 2.7 kg
Furnished parts
FM T-type antenna ..................................................... 1
AM Loop antenna ...................................................... 1
Audio cord .................................................................. 1
Control cord ............................................................... 1
Operating Instructions ............................................... 1
NOTE:
Specifications and design are subject to possible
modifications without notice, due to improvements.
Black Red
White
