Pioneer GM-H200 User Manual

GM-HSQO

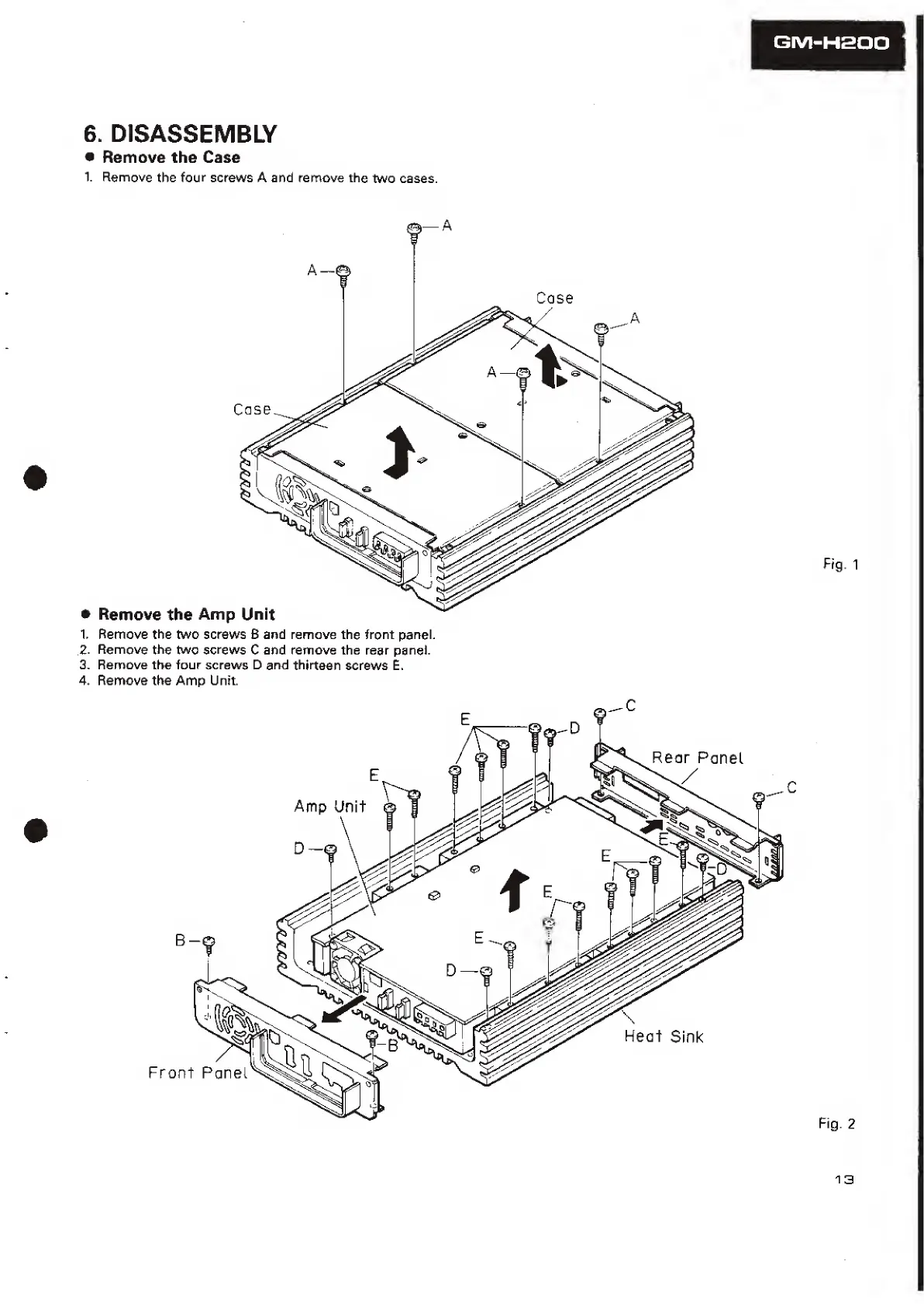

6. DISASSEMBLY
• Remove the Case
1. Remove the four screws A and remove the two cases.
2. Remove the two screws C and remove the rear panel.
3. Remove the four screws D and thirteen screws E.
4. Remove the Amp Unit.
Fig. 1
Fig. 2
13

Pioneer GM-H200 Specifications

General

Brand	Pioneer
Model	GM-H200
Category	Amplifier
Language	English
