GM-X1024,GM-X924

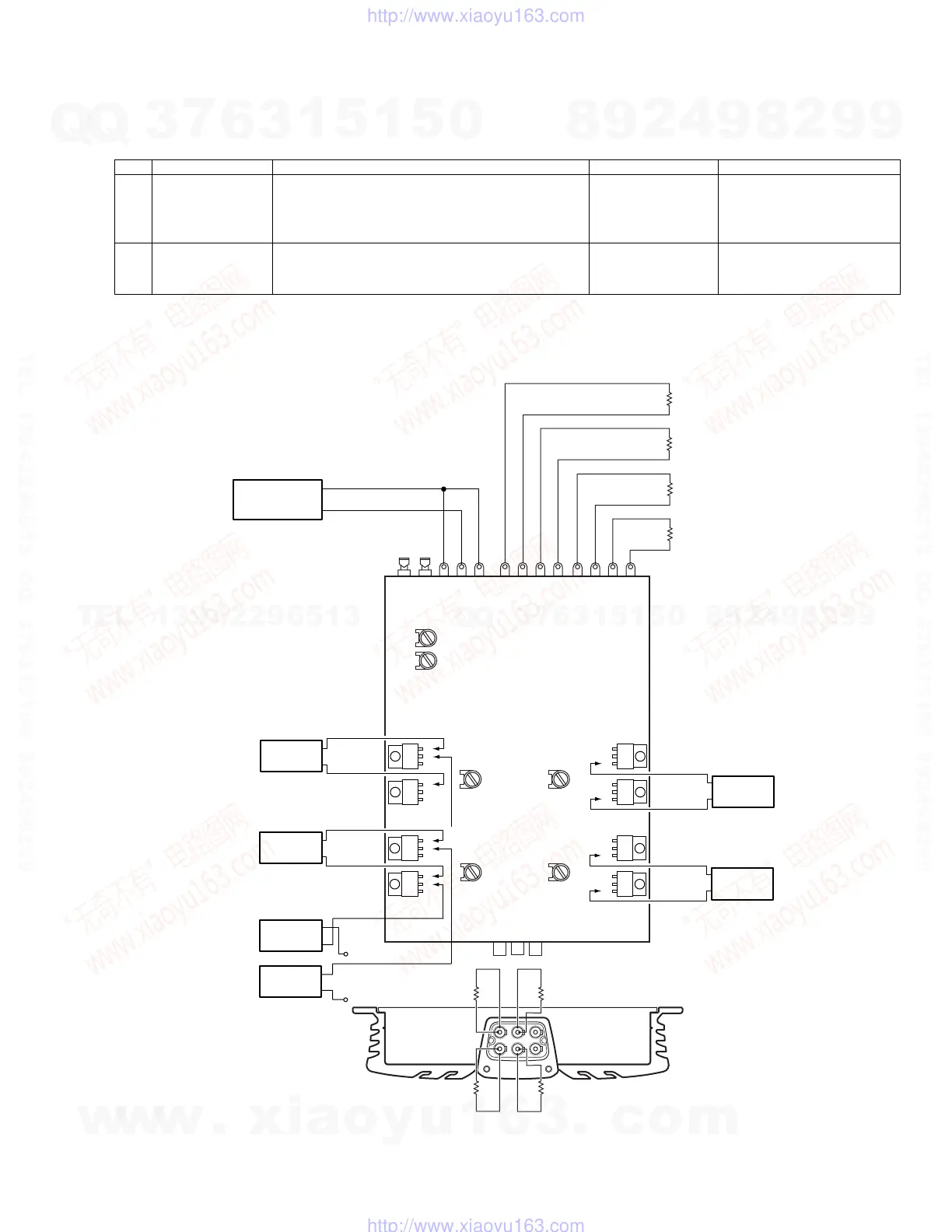

6. ADJUSTMENT
No. Item Conditions Adjustment point Specifications
1 Idling current Input ; adjust 30 seconds after 1kΩ terminate VR101(A Lch) mV Meter(1) : 20±6mV
(adjustment) power is switched on, and within 20 VR201(A Rch)
seconds. VR301(B Lch)
VR401(B Rch)
2 DC-DC Converter Input ; adjust 30 seconds after 1kΩ terminate VR951 mV Meter(2) : +29±3V
voltage power is switched on, and within 20 VR952 mV Meter(3) : –29±3V
(adjustment) seconds.
- Connection Diagram
BL
1kΩ
Q115
SYSTEM CONTROL GND POWER
VR952
VR101 VR301
mV Meter
(1)
DC Regulated
Power Supply
mV Meter
(1)
E
C
E
Q116
GND
Q315
Q316
1kΩ
BR
E
E
mV Meter
(3)
AMP UNIT
4Ω
(2W)
+14.4V
4Ω
(2W)
SPEAKER B
OUTPUT
Q215
mV Meter
(1)
mV Meter
(1)
E
C
E
Q216
Q415
Q416
E
E
VR201 VR401
1kΩ
1kΩ
AL
AR
4Ω
(2W)
4Ω
(2W)
SPEAKER A
OUTPUT
C
GND
mV Meter
(2)
+
+
VR951
Fig. 12
