55
XR-MT3
115-000920-000A (HNA-09SS20) (DISPLAY CONTROL ASSY : LCD401)

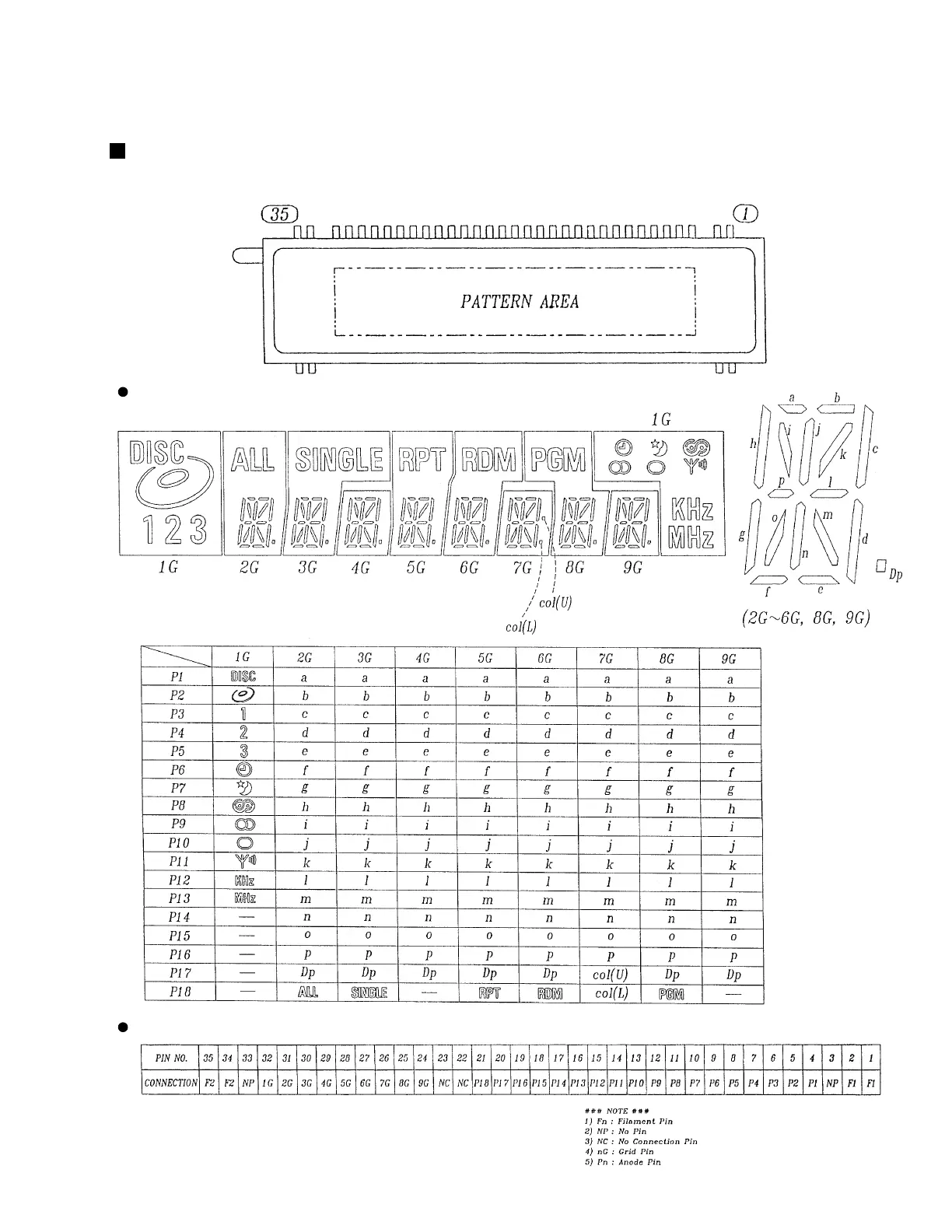

• FL DISPLAY
7.2.2 DISPLAY
Anode Connection
Pin Connection
