FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
The rider information center is located in the lower portion of the
instrument cluster.

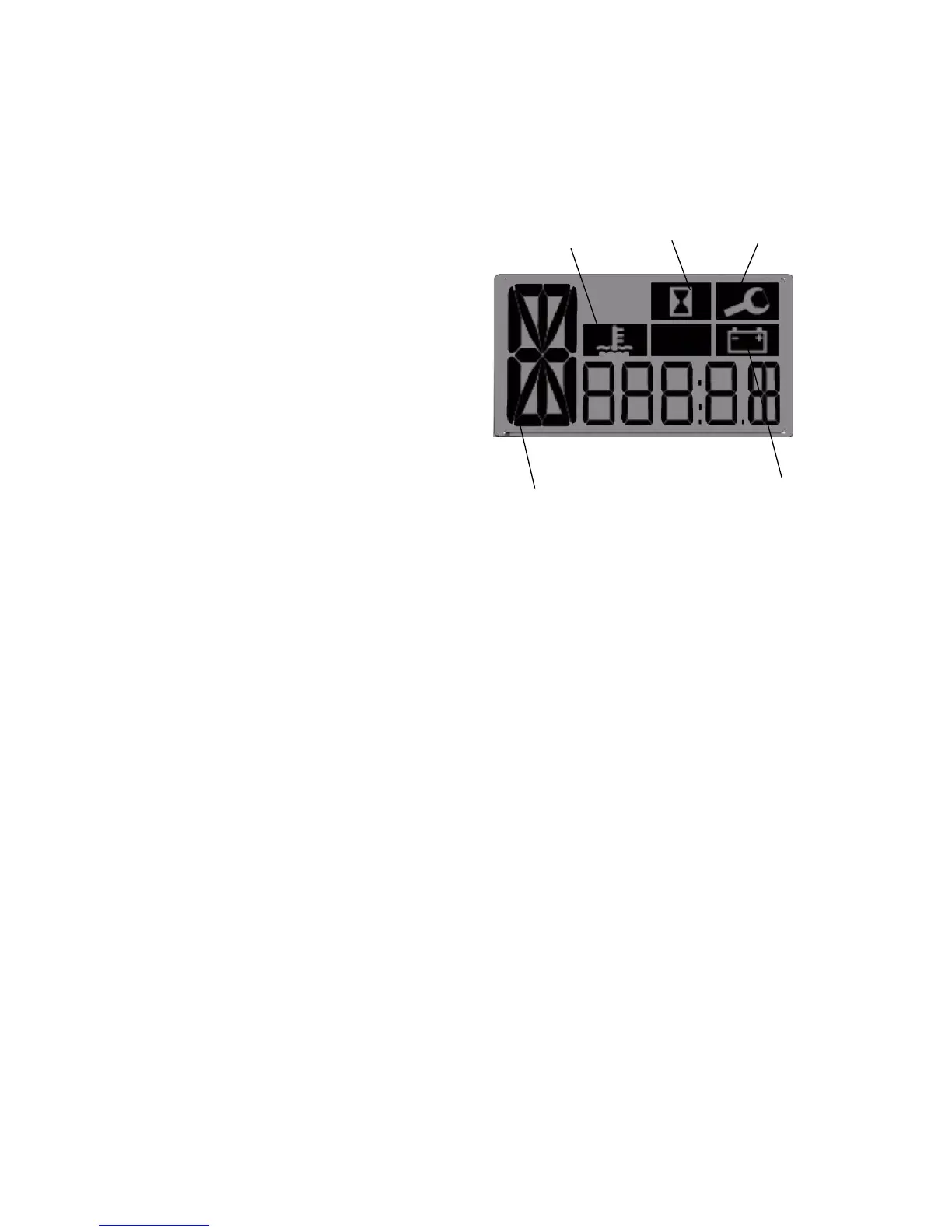

1. Gear Indicator - As the
shift lever is moved, this
will indicate the gear the
machine is in:
H = High Range
L = Low Range
N = Neutral
R = Reverse
Eorblank=Error-The
error message usually means
the gear selector is in between
gears. It can, however, also
indicate that the transmission
switch needs repair.
2. High Engine Coolant Temperature - Do not continue to operate the
ATV is this warning appears or serious engine damage could result.
3. Hour Meter
4. Service Interval/Miscellaneous Service Warnings
5. Low Battery and Over Voltage - This warning usually indicates
that the ATV is being operated at an RPM too low to keep the
battery charged. A low batte ry war ning ma y also occ ur under norma l
oper ation if the machine is at idle and high ele ctr ica l load (lights,
cooling fan, accessories) is applied. Driving at a higher RPM or
connecting a battery charger will usually clear the warning.
NOTE: If the i nstrument cluster no longer illuminates, it’s possible
that a battery over voltage occurred and the instrument cluster has shut
off to protect the electrical system. If this occurs take the ATV to your
Polaris dealer for proper diagnosis.
NOTE: All segments of the rider information center will light up for
2.5 seconds at start-up.
2
5
4
3
1
