99
MAINTENANCE
Track Maintenance
WARNING
Moving parts can cut and crush body parts. When performing the
checks and adjustments recommended on the following pages,
stay clear of all moving parts. Never perform track measurement
or adjustments with the engine running.
Track Tension
Track adjustment is critical for proper handling. Always maintain
correct tension and alignment.
Tension adjustments should be made only after the track is warmed up
and limber.
1. Turn the machine off.
2. Lift the rear of the m achine and safely support it off the ground.

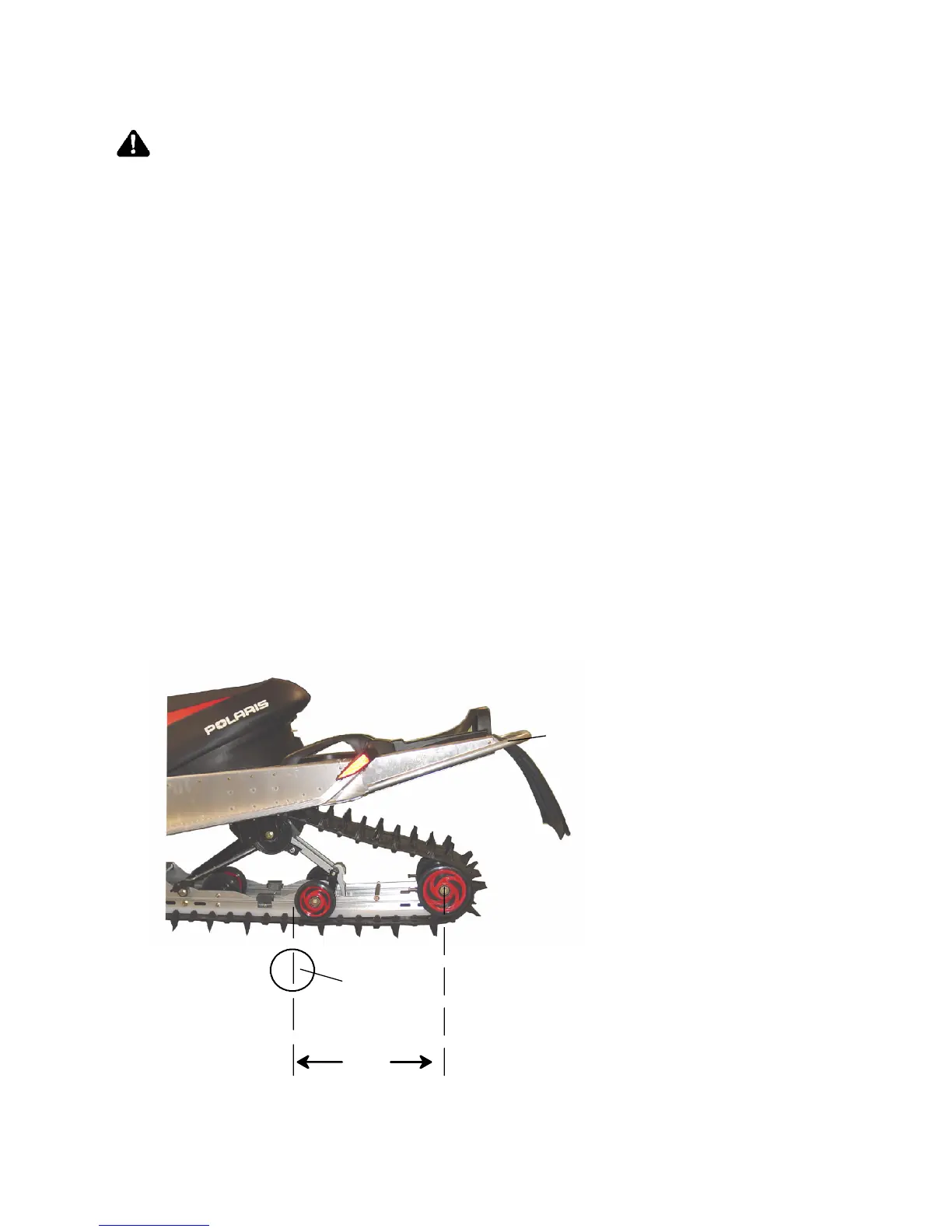

3. P lace the recommended weight or downward pressure on the track
at the specifi ed distance (see chart on page 100) ahead of the center
of the rear idler wheel .
NOTE: Measure at the point where the weight is hanging.
4. Check for specified slack between the wear surface of the track clip
and the plastic slider.
16″
(40 cm)
10 lbs.
(4.5 kg)
