MAINTENANCE
Lubrication Guide
Check and lubricate all components at the intervals outlined in the Peri-
odic Maintenance Chart beginning on page 85. Items not listed in the
chart should be lubricated at the General Lubrication interval.
The a-arms and lower control arms are lubricated at the factory, and no
additional lubrication will be needed. However, if these components are
subjected to severe use, grease zerks have been provided for additional
lubrication at the user's discretion.
Item Recommended
Lubricant
Capacity
at Fluid
Change
Fill Plug
Torque
Drain Plug
Torque
See
Page
550 Engine PS-4 5W-50 4-Cycle
Oil
2 qt. (1.9 l) --- 15-17 ft. lbs.
(20-23 Nm)
89
850 Engine PS-4 5W-50 4-Cycle
Oil
2 qt. (1.9 l) --- 12 ft. lbs.
(16 Nm)
89
Transmission
Oil
AGL Gearcase
Lubricant &
Transmission Fluid
37 oz.
(1100 ml)
10-14 ft. lbs.
(14-19 Nm)
10-14 ft. lbs.
(14-19 Nm)
92
Demand Drive
Fluid (Front
Gearcase)
Demand Drive Fluid 9.3 oz.
(275 ml)
8-10 ft. lbs.
(11-14 Nm)
11 ft. lbs.
(15 Nm)
93
Rear
Gearcase Oil
ATV Angle Drive
Fluid (or GL5 80-90
weight gear lube)
7.1 oz.
(210 ml)
10-14 ft. lbs.
(14-19 Nm)
10-14 ft. lbs.
(14-19 Nm)
96
Brake Fluid DOT 4 Brake Fluid --- --- --- 28
ADC Fluid Demand Drive Fluid --- --- --- 94
Front Prop
Shaft Yoke
U-Joint Grease Grease fittings (3 pumps maximum) every 500
miles, before long periods of storage, or after
pressure washing or submerging.
A-Arms, Front
and Rear
All Season Grease
or grease conforming
to NLGI No. 2
Grease fittings after extreme use or if suspension
becomes squeaky.

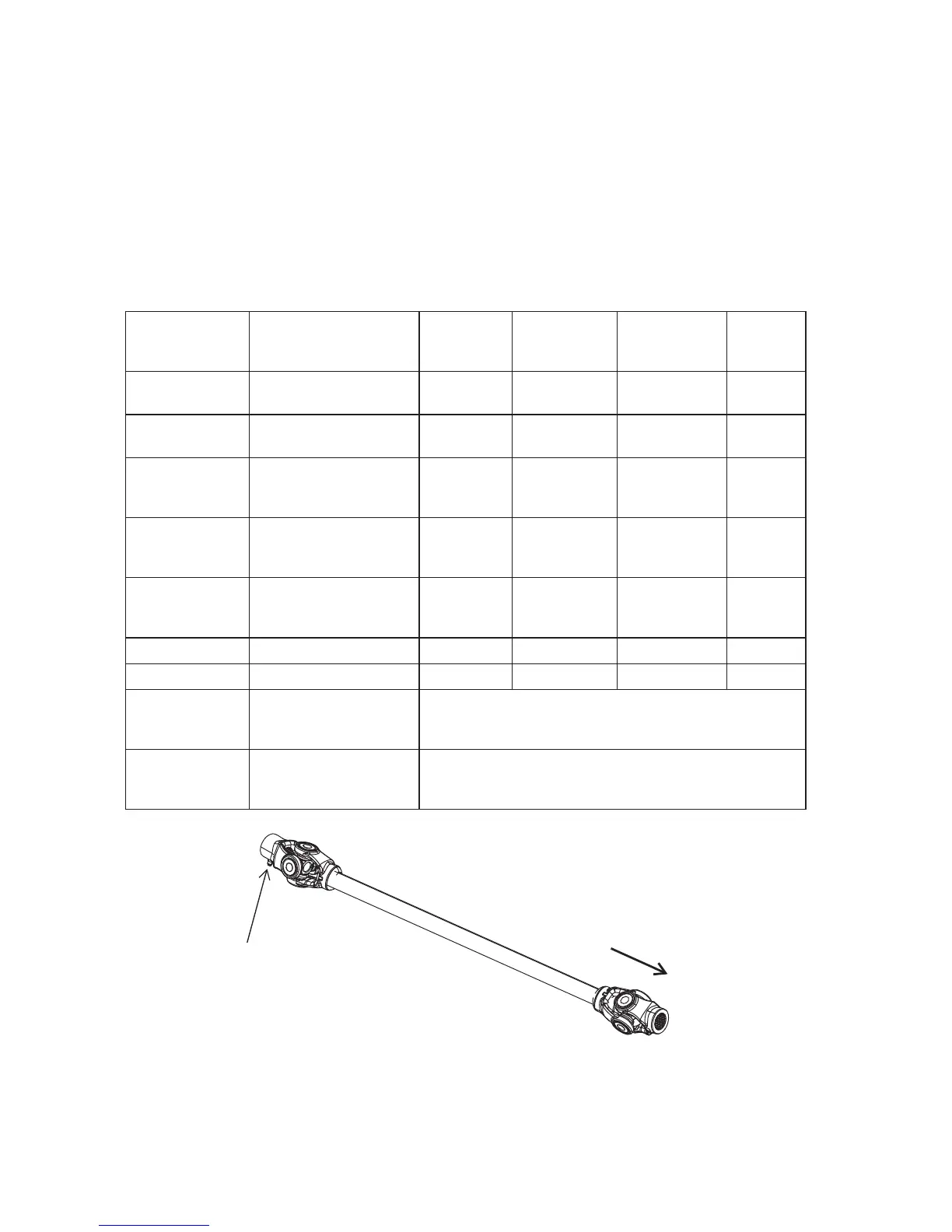

Front Prop Shaft Yoke
