96
MAINTENANCE
Lubrication Guide
Check and lubricate all components at the intervals outlined in the
Periodic Maintenance Chart beginning on page 92. Items not listed in
the chart should be lubricated at the General Lubrication interval.
The a-arms and upper control arms are lubricated at the factory, and no
additional lubrication will be needed. However, if these components are
subjected to severe use, grease zerks have been provided for additional
lubrication at the user's discretion.
Item Recommended
Lubricant
Capacity
at Fluid
Change
Fill Plug
Torque
Drain Plug
Torque
See Page
Engine Oil PS-4 5W-50
4-Cycle Oil
2 qt.
(1.9 l)
--- 12 ft-lbs
(16 Nm)
97
Transmission
Oil
AGL Gearcase
Lubricant &
Transmission
Fluid
37 oz.
(1100 ml)
10-14 ft-lbs
(14-19 Nm)
10-14 ft-lbs
(14-19 Nm)
100
Demand Drive
Fluid (Front
Gearcase)
Demand Drive
Fluid
9.3 oz.
(275 ml)
8-10 ft-lbs
(11-14 Nm)
11 ft-lbs
(15 Nm)
102
Rear
Gearcase Oil
ATV Angle Drive
Fluid (or GL5 80-
90 weight gear
lube)
7.1 oz.
(210 ml)
10-14 ft-lbs
(14-19 Nm)
10-14 ft-lbs
(14-19 Nm)
103
Brake Fluid DOT 4 Brake
Fluid
--- --- --- 34
Front Prop
Shaft Yoke
U-Joint Grease Grease fittings (3 pumps maximum) every 500 miles,
before long periods of storage, or after pressure
washing or submerging.
A-Arms, Front
and Rear
POLARIS All-
Season Grease
Grease fittings after extreme use or if suspension
becomes squeaky.

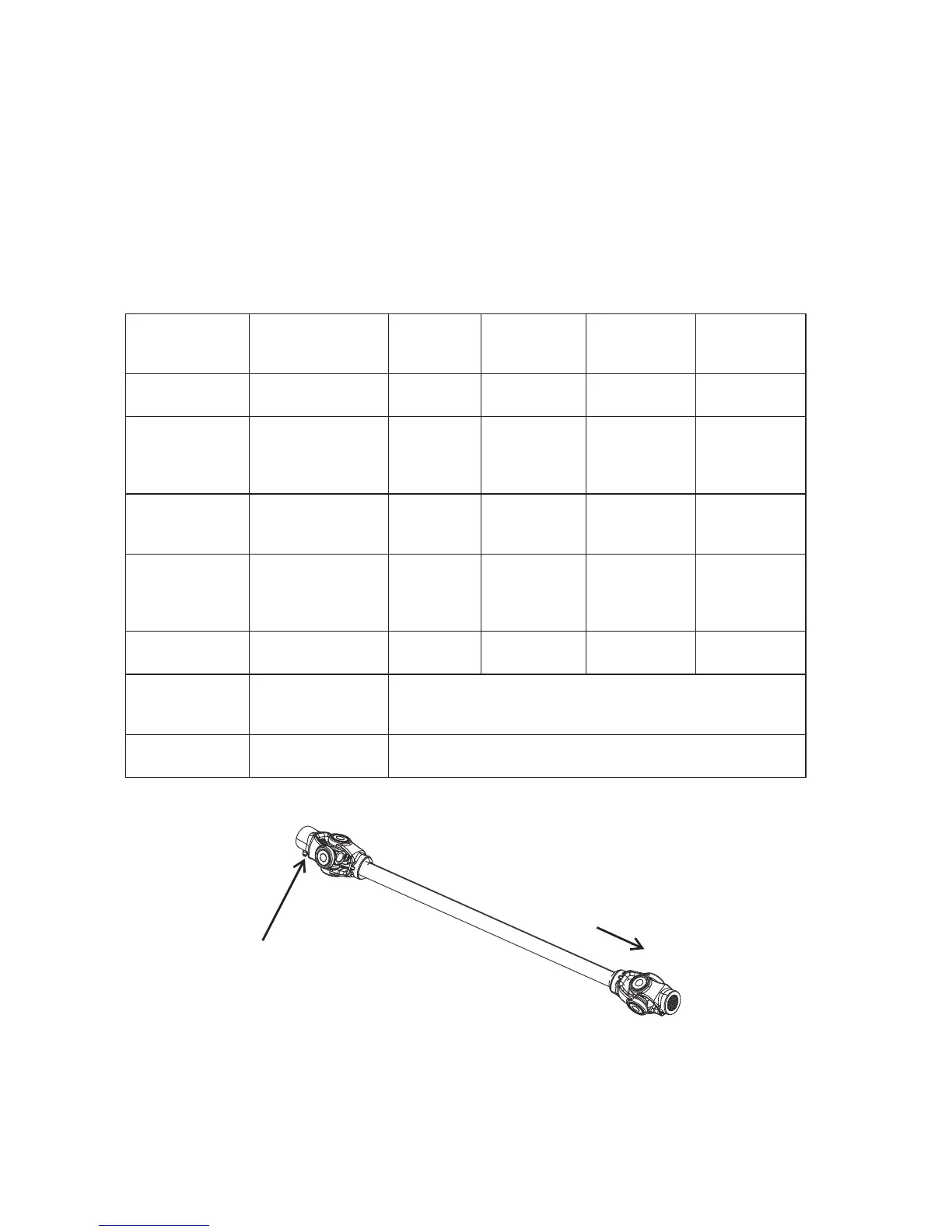

Front Prop Shaft
Yoke
Front
