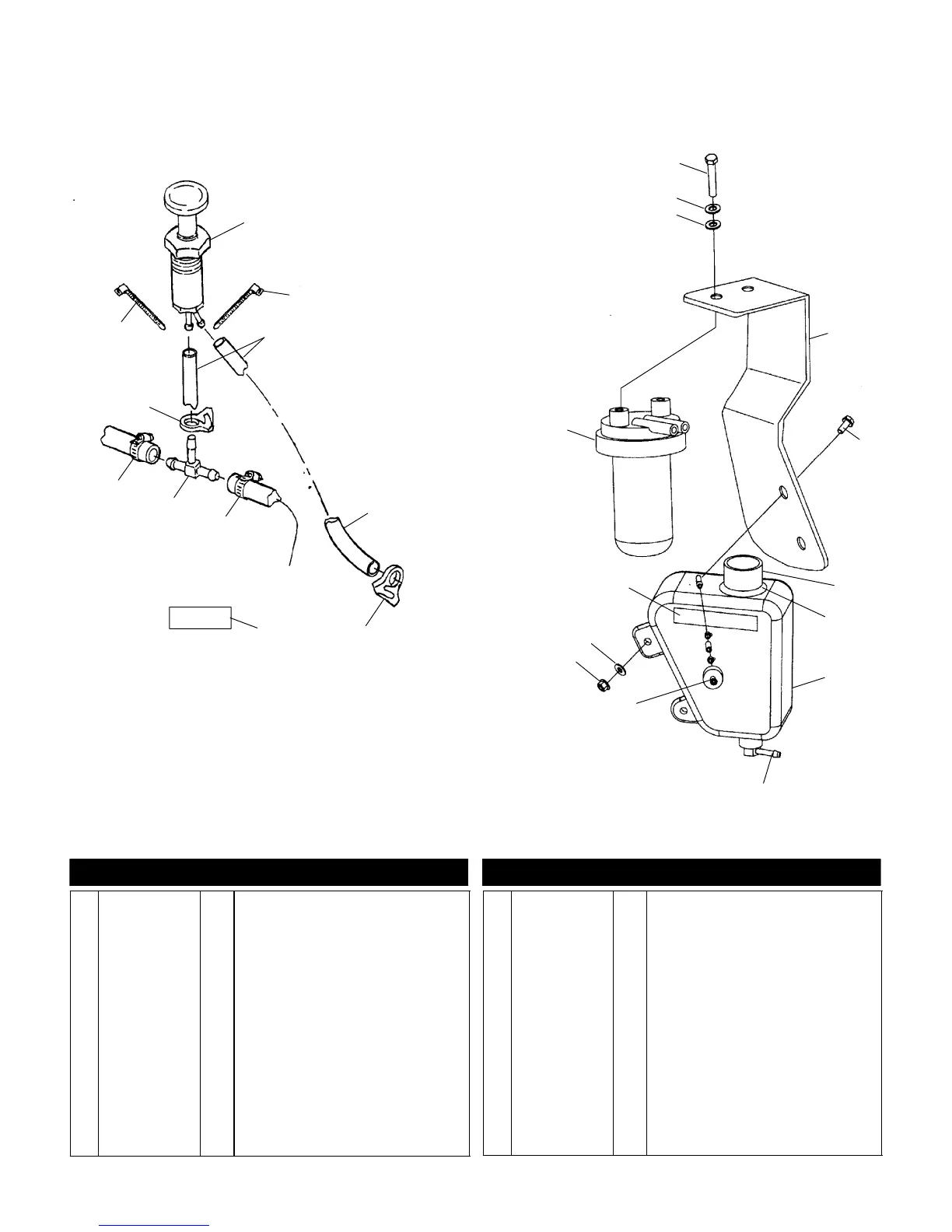

ENGINE FOGGING SYSTEM
INT’L VIRAGE W005197I
14
13
6
7
4
3
12
21
2
17
18
19
15
20
16
5
1
1
6
2
11
8
9
10
3
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
2872635 1 Kit - Engine Fogging
1 7080138 4 Cable Tie
2 7080484 2 Clamp, Hose
3 7080476 2 Clamp, Hose
4 7052139 1 Fitting, Tee
5 7075738 1 Decal - Engine Primer
6 8450062 AR Line, Oil
7 3160114 1 Primer, Engine, Fog
8 -- -- -- -- -- -- -- 2 Screw (See Fuel/Water Separator Pg.
C10, Ref. 1)
9 -- -- -- -- -- -- -- 2 Washer, Lock (See Fuel/Water Sepa-
rator Pg. C10, Ref. 2)
10 -- -- -- -- -- -- -- 2 Washer, Dish (See Fuel/Water Separa-
tor Pg. C10, Ref. 3)
11 -- -- -- -- -- -- -- 1 Separator, Fuel/Water (See Fuel/Water
Separator Pg. C10, Ref. 5)
12 7075732 1 Decal - ‘‘Fogging Oil Only”
13 7555837 2 Washer
14 7541931 2 Nut
15 7052047 1 Valve, Check, Vent
16 7052138 2 Fitting, 90 Degree
17 5432362 1 Tank, Oil
18 5810279 1 Gasket, Overflow Cap
19 5432359 1 Cap, Oil Bottle
20 7512045 2 Screw
21 5244295 1 Bracket, Oil Tank
