Power Dynamics WT240A User Manual

3

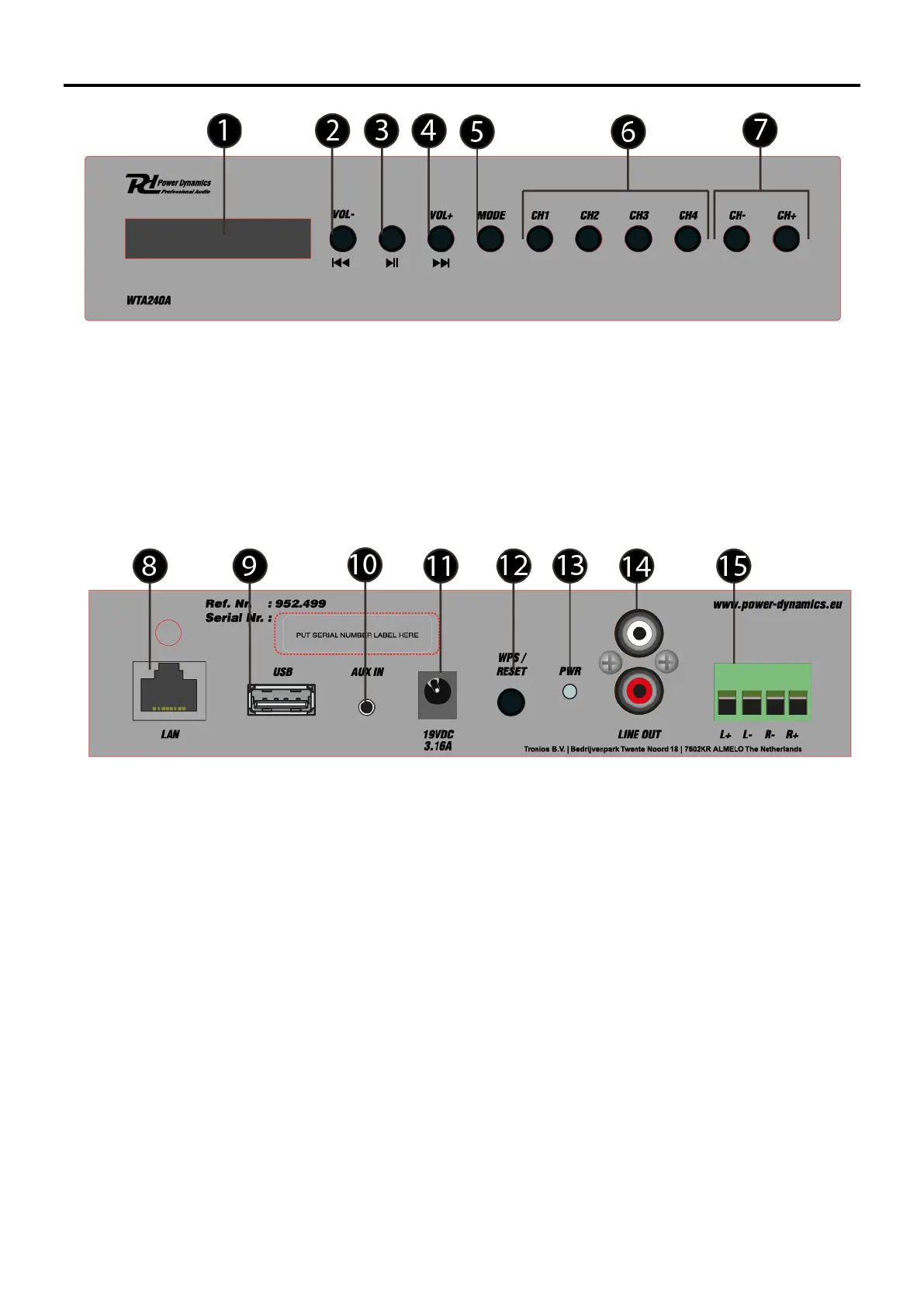

OVERVIEW
1. DISPLAY
2. VOLUME DOWN – PREVIOUS TRACK
Press for previous track, press and hold to lower volume level.
3. PLAY/PAUSE
4. VOLUME UP – NEXT TRACK
Press for next track, press and hold to increase volume level.
5. MODE
Switch between USB, AUX, BT or internet modes.
6. PRESET CHANNEL BUTTONS 1-4
Choose from the preset selection (which is programmable in the app).
7. PRESET CHANNEL SWITCH UP OR DOWN
Toggle within the pre-programmed selection (which is programmable in the app).
8. RJ-45 LAN-CONNECTOR
9. USB INPUT
10. AUX INPUT
11. DC INPUT
12. WPS/RESET
Press to connect with a router using WPS.
Press and hold for a factory reset
13. POWER INDICATOR
14. LINE OUT
15. SPEAKER OUTPUT

Power Dynamics WT240A Specifications

General

Brand	Power Dynamics
Model	WT240A
Category	Amplifier
Language	English
