INSTRUCTIONS PL600/PL1000
4
2.3.1 PL600/ PL1000 Electromechanical Gearmotor
PL600/PL1000 consists of an electronic control unit and
connector for the optional radio control receiver. The
gearmotor could be released manually by special
release keys when there is power failure. Besides, it has
a back-up battery (optional) which can be used during
the power failure as well.
2.3.2 Release Keys
The two keys enable the gearmotor to be released when
there is power failure.

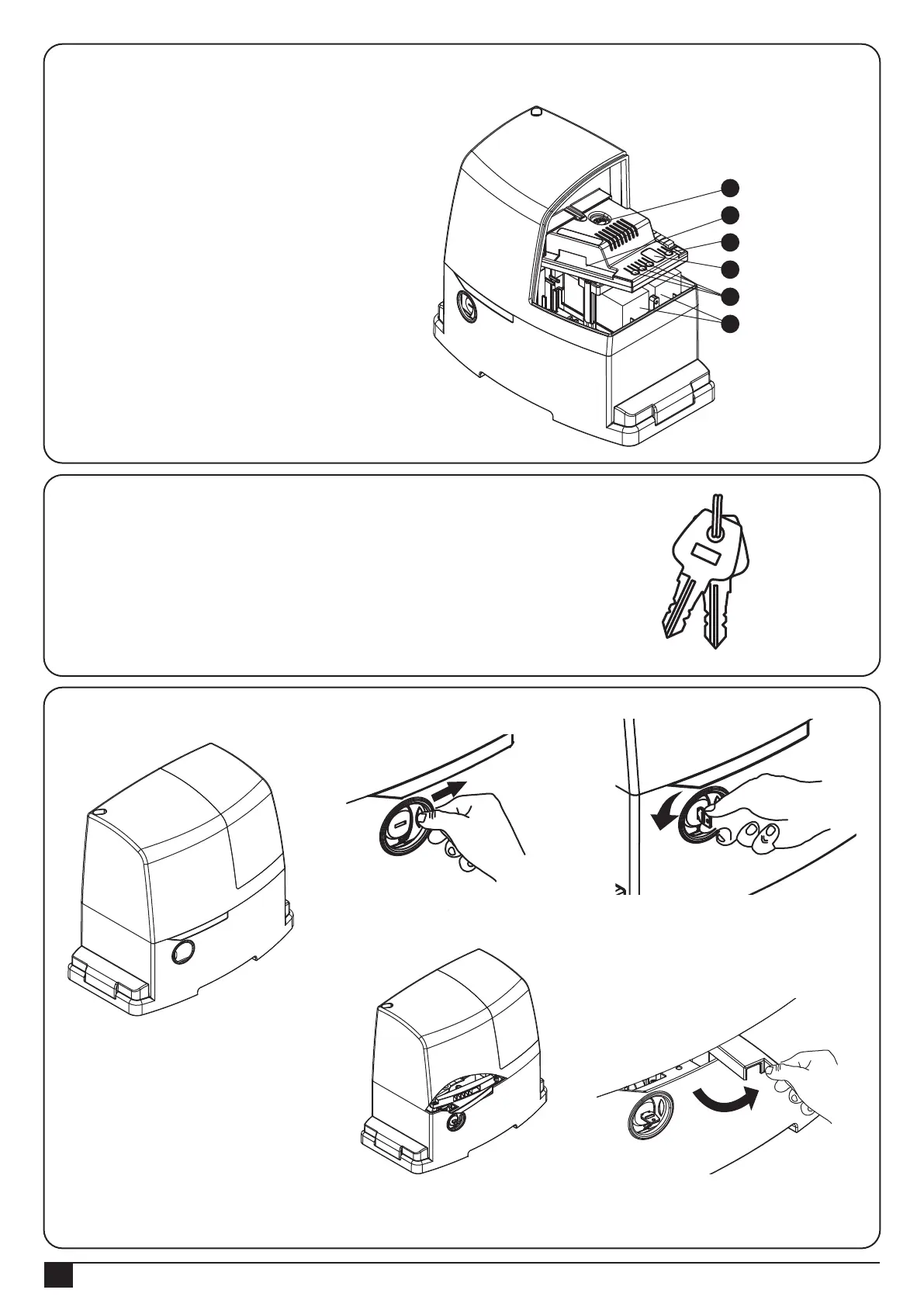

Figure 3
Figure 4
516
Fuse knob
Terminals for devices
RF leaning button
Digital led display
Function setting buttons
Back-up batteries
(optional)
A
B
E
D
C
F
2.3.2.1 Release Gearmotor
1) Slide the lock cover disc. 2) Insert and turn the key clockwise.
3) Pull the release handle. 4) Move the leaf manually.
