Powtran PR5200 Series User Manual

Section III The Conditions of use and installation requirements
7
W
L
H
a
b

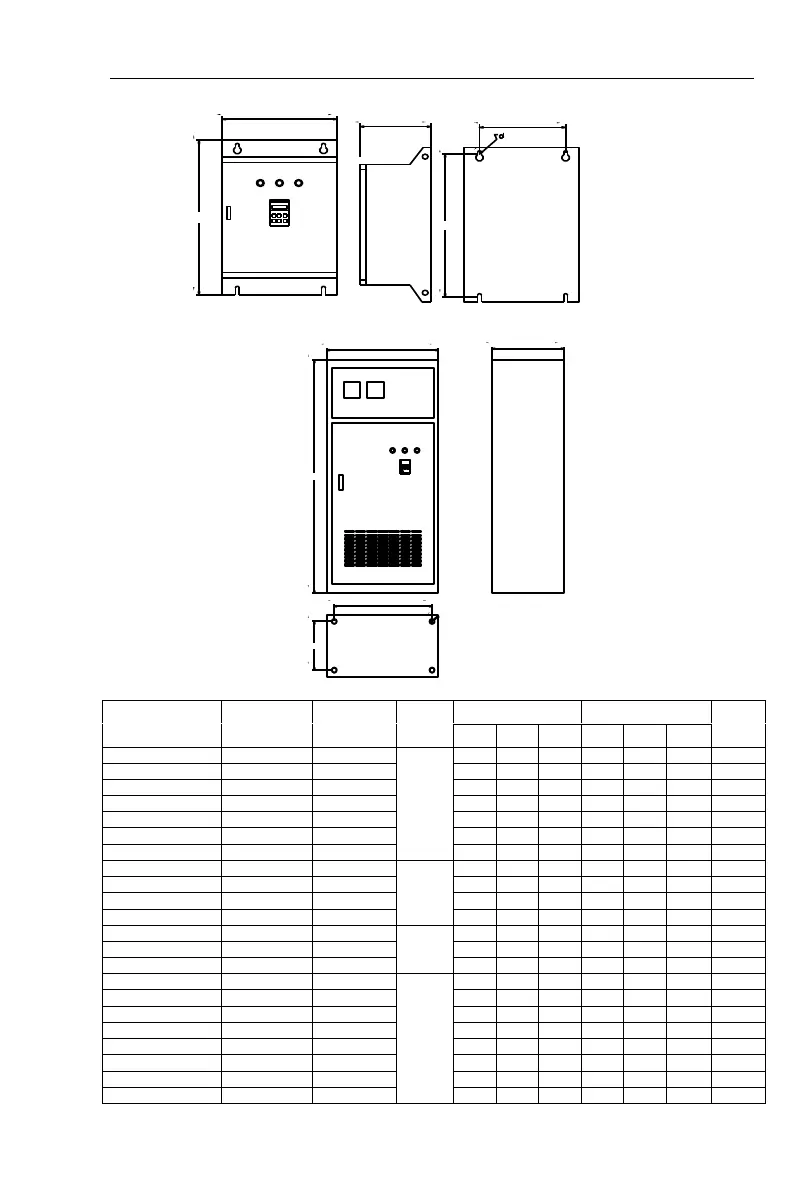

Cabinet size chart
W
L
H
b
a
d
Size table
Model
Rated power
（KW)
Rated
current(A)
Base
No.
Dimension
Installation
Net(kg)
L
W
H
a
b
d
PR5200C 015G3
15
30
6R1
620
400
220
600
250
10
PR5200C 018G3
18.5
37
620
400
220
600
250
10
PR5200C 022G3
22
44
620
400
220
600
250
10
PR5200C 030G3
30
60
620
400
220
600
250
10
PR5200C 037G3
37
74
620
400
220
600
250
10
PR5200C 045G3
45
90
620
400
220
600
250
10
PR5200C 055G3
55
110
620
400
220
600
250
10
PR5200C 075G3
75
150
6R2
980
534
278
852
275
12
PR5200C 090G3
93
180
980
534
278
852
275
12
PR5200C 115G3
115
230
980
534
278
852
275
12
PR5200C 132G3
132
264
980
534
278
852
275
12
PR5200C 160G3
160
320
6R3
1000
590
300
939
370
12
PR5200C 185G3
185
370
1000
590
300
939
370
12
PR5200C 200G3
200
400
1000
590
300
939
370
12
PR5200C 250G3
250
500
GGD 柜
1800
800
600
650
540
16
PR5200C 280G3
280
560
1800
800
600
650
540
16
PR5200C 320G3
320
640
1800
800
600
650
540
16
PR5200C 400G3
400
800
1800
800
600
650
540
16
PR5200C 450G3
450
900
1800
800
600
650
540
16
PR5200C 500G3
500
1000
1800
800
600
650
540
16
PR5200C 560G3
560
1120
1800
800
600
650
540
16
PR5200C 630G3
630
1260
1800
800
600
650
540
16
