PM-1030V v5 2020-10 Copyright © 2020 Quality Machine Tools, LLC

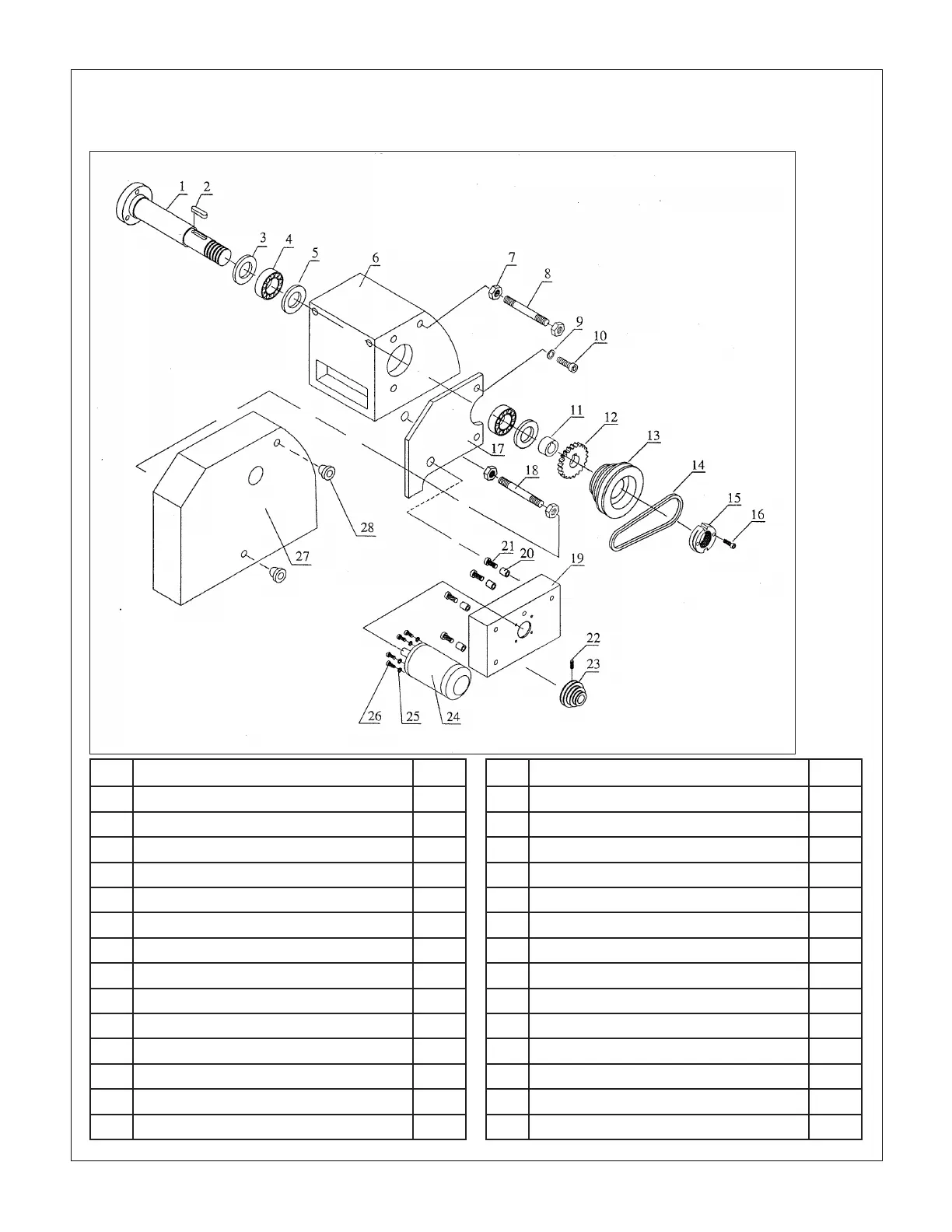

HEADSTOCK Fig 1
There may be detail dierences
between this representative drawing
and the machine as supplied
Section 5 PARTS
Ref Description Part
1 Spindle Z1046
2 Key 8 x 45 Z1047
3 Outer spacer Z1048
4 Tapered roller bearing 32009 Z1049
5 Inner spacer Z1050
6 Headstock casting Z1051
7 Nut M10 Z1052
8 Double ended stud M10 x 115 Z1053
9 Washer Φ10 Z1054
10 Screw M10 x 20 Z1055
11 Sleeve Z1056
12 Gear 40T Z1057
13 Spindle pulley Z1058
14 V-belt 7M730 Z1006
Ref Description Part
15 Locknut Z1060
16 Screw M5 x 10 Z1061
17 Support plate Z1062
18 Double ended stud M10 x 115 Z1063
19 Motor mount Z1064
20 Washer Φ6 Z1065
21 Screw M6 x 10 Z1066
22 Set screw M6 x 10 Z1067
23 Motor pulley Z1068
24 DC motor 108ZYT005AL Z1069
25 Washer Φ8 Z1070
26 Screw M8 x 25 Z1071
27 Cover Z1072
28 Knurled nut Z1073
Dimensions in millimeters
