III. YOUR PMV

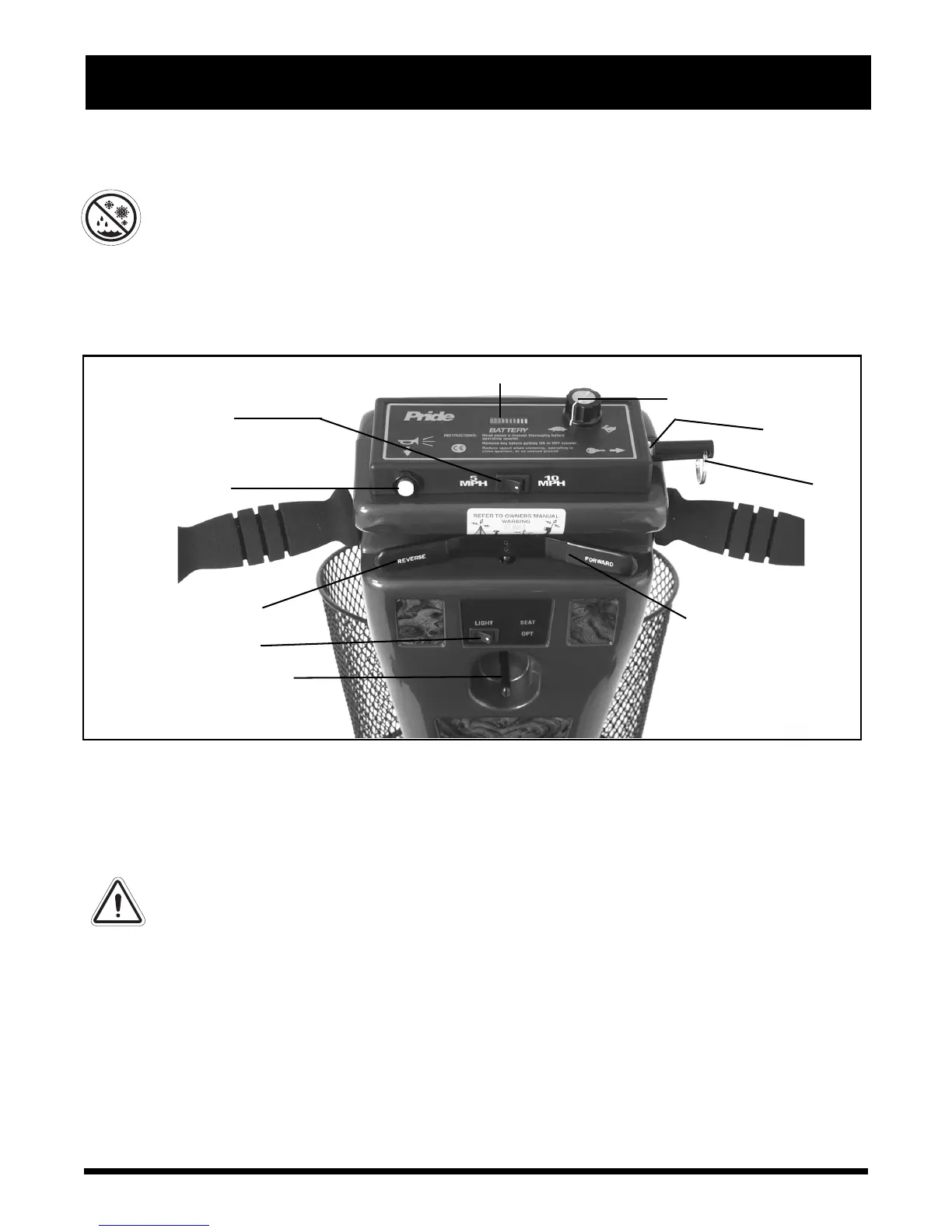

Figure 5. Control Console Assembly
BATTERY CONDITION METER
KEY SWITCH
HORN BUTTON
LIGHT SWITCH
SPEED ADJUSTMENT DIAL
TILLER ADJUSTMENT LEVER
5-10 MPH SWITCH
KEY
PROHIBITED! Do not expose the control console assembly to moisture. In the event that
the control console assembly does become exposed to moisture, do not attempt to
operate your PMV until the control console assembly has dried thoroughly.
The control console assembly, located on the front section, houses all of the controls you need to operate
your PMV, including the speed adjustment dial, throttle control lever, battery condition meter, horn but-
ton, and key switch. See figure 5.
CONTROL CONSOLE ASSEMBLY
KEY SWITCH
Fully insert the key into the key switch to power up your PMV.
Pull the key out to power down your PMV.
WARNING! If the key is removed from the key switch while your PMV is in motion, the
electronic brakes will engage and your PMV will come to an abrupt stop!
Tiller Adjustment Lever
This lever allows you to adjust the tiller between four different positions. For tiller adjustment instruc-
tions, see VI. “Comfort Adjustments.”
Horn Button
This button activates a warning horn. Your PMV must be powered up for the horn to be operational.
Do not hesitate to use the warning horn when doing so may prevent accident or injury.
