6
3. Attach the Seat Frame (7) to the Handlebar (6)
with two M8 x 70mm Button Bolts (54), two M8
Split Washers (59), and two M8 Locknuts (60).
Do not tighten the Button Bolts yet.
7
6
60
54
59
59

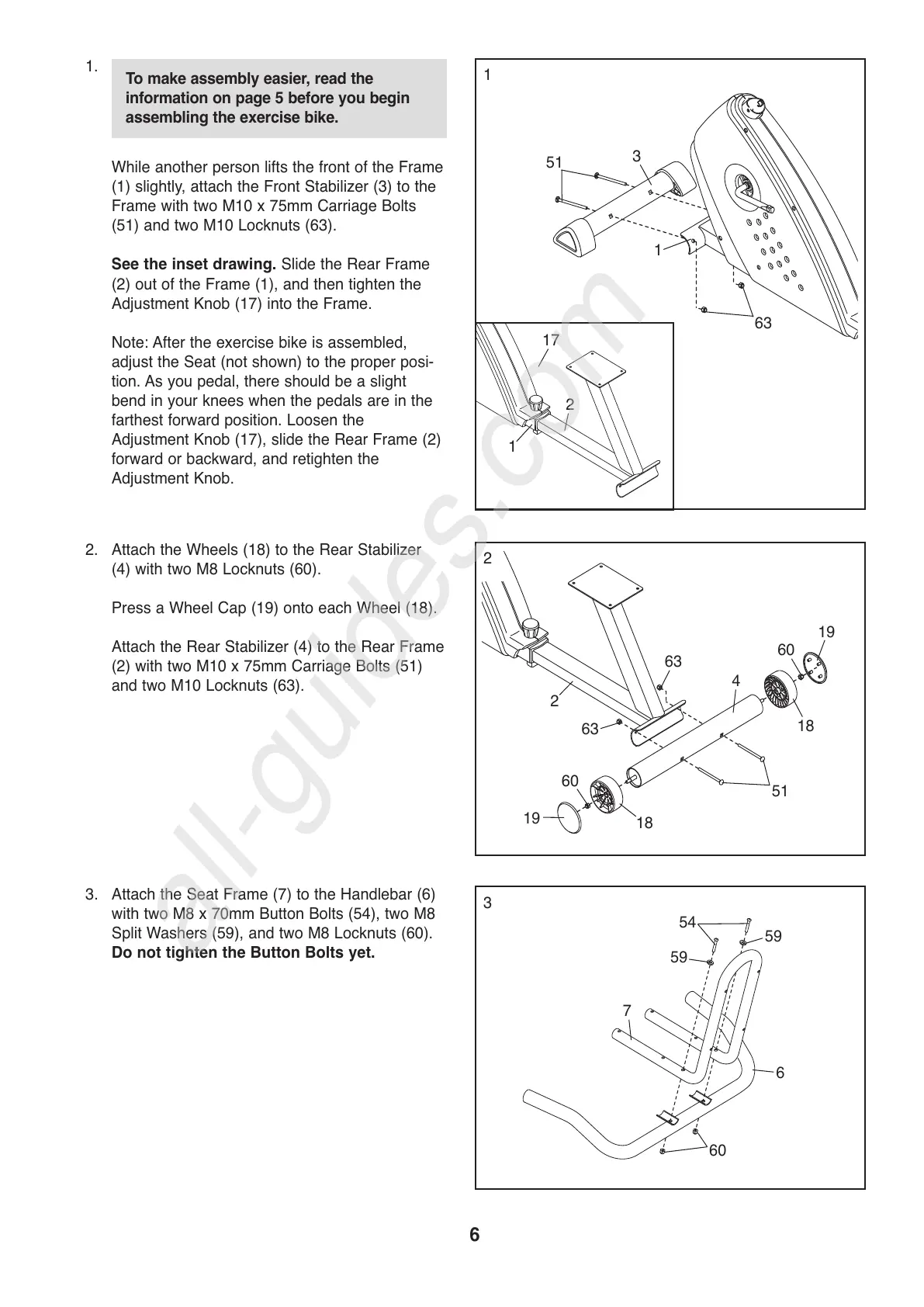

1.
While another person lifts the front of the Frame
(1) slightly, attach the Front Stabilizer (3) to the
Frame with two M10 x 75mm Carriage Bolts
(
51) and two M10 Locknuts (63).
See the inset drawing. Slide the Rear Frame
(2) out of the Frame (1), and then tighten the
Adjustment Knob (17) into the Frame.
Note: After the exercise bike is assembled,
adjust the Seat (not shown) to the proper posi-
tion. As you pedal, there should be a slight
bend in your knees when the pedals are in the
farthest forward position. Loosen the
Adjustment Knob (17), slide the Rear Frame (2)
forward or backward, and retighten the
Adjustment Knob.
3
63
51
1
1
2. Attach the Wheels (18) to the Rear Stabilizer
(4) with two M8 Locknuts (60).
Press a Wheel Cap (19) onto each Wheel (18).
Attach the Rear Stabilizer (4) to the Rear Frame
(2) with two M10 x 75mm Carriage Bolts (51)
and two M10 Locknuts (63).
51
18
4
19
60
18
19
63
63
60
2
3
17
2
1
To make assembly easier, read the
i
nformation on page 5 before you begin
assembling the exercise bike.
2
