5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
A
ssembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and a rubber
mallet .

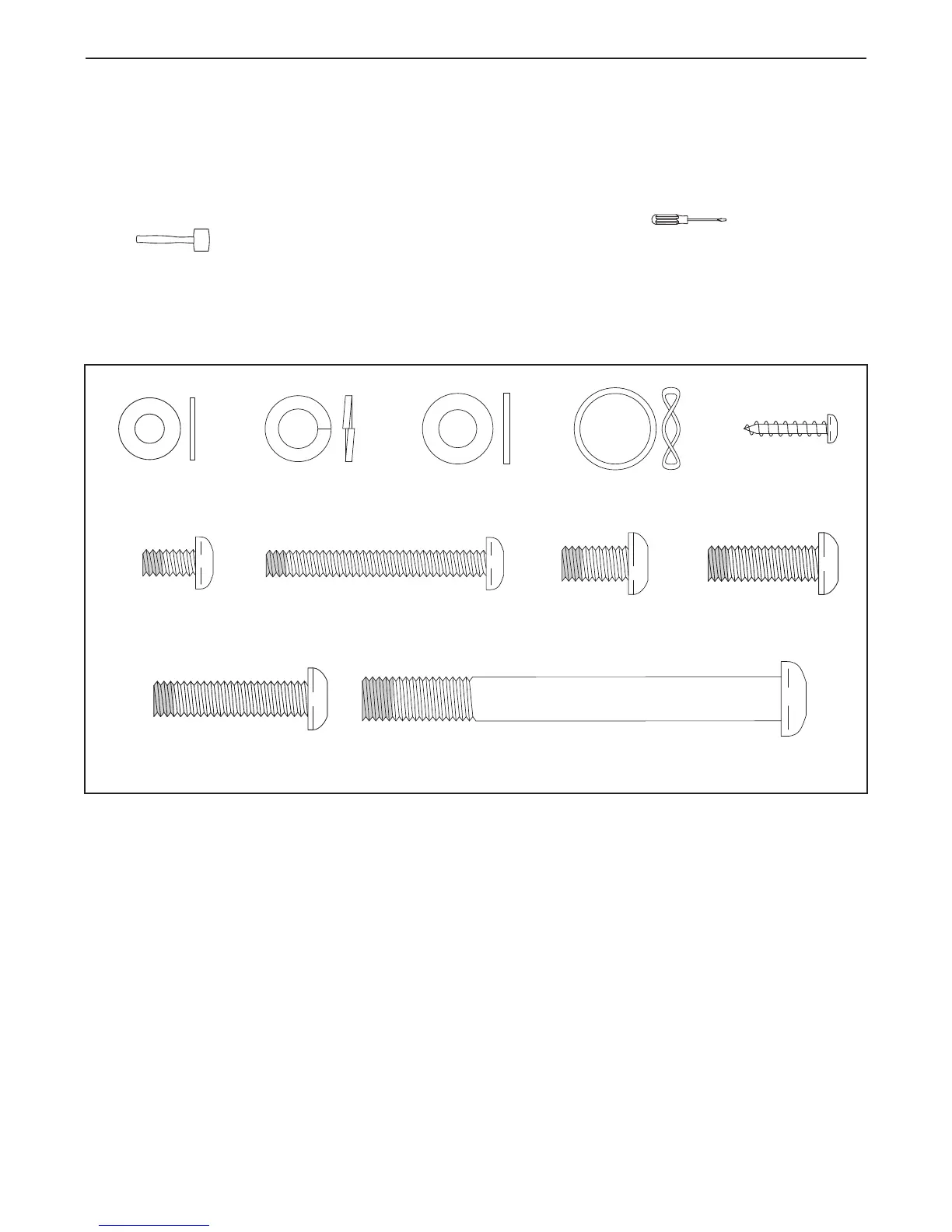

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M10 x 95mm Patch
Screw (100)–4
M8 Split Washer
(103)–14
M8 Washer
(95)–6
M8 x 16mm Patch
Screw (102)–16
Wave Washer
(118)–2
M6 Washer
(112)–8
M8 x 25mm Patch
Screw (121)–2
M6 x 50mm Patch
Screw (62)–4
M8 x 35mm Patch
Screw (149)–2
M4 x 19mm
Screw (156)–8
M6 x 12mm Patch
Screw (111)–4
