5
NO 52*4 NO 57*4
NO 58*4 NO 59*4
NO 46*2 NO 49*2 NO 50*2
NO 100*2
NO 116*1
NO 13*6 NO 14*6
NO 15*6 NO 115*2
NO 36*2 NO 13*2 NO 40*2
NO 3*2 NO 13*2
NO 30*1 NO 22*3
PFIVEL74313.3
伞头内六角 M8*110（100）*2
伞头内六角 M8*70（30）*1
伞头内六角 M8*85（3）*2
伞头内六角 M10*90（46）*2 马车螺丝 M8*75（36）*2
马车螺丝 M6*55（52）*4
伞头内六角 M8*20（15）*6
华司 Φ6*Φ14*2T（57）*4
弹垫 Φ8（14）*6
弹垫 Φ6（58）*4
弧形华司 Φ8*Φ19*1.5T（13）*10
华司 Φ10*Φ19*2T（49）*2
内六角扳手 5mm（115）*2
圆花旋钮 M6（59）*4 开口扳手（116）*1
尼帽 M10（50）*2尼帽 M8（22）*3
袋帽 M8（40）*2
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove
the packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench and a Phillips
screwdriver .

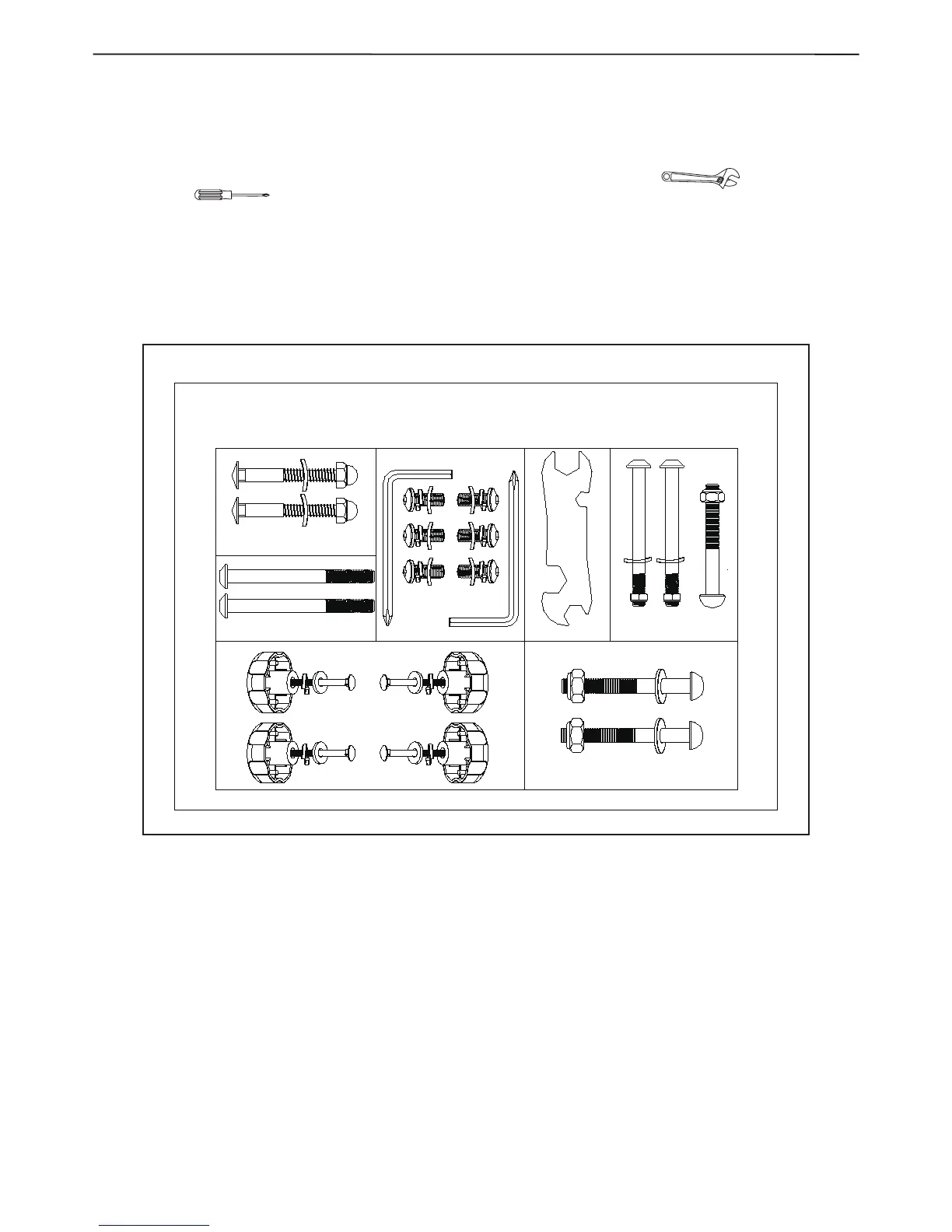

Use the part drawings below to identify the small parts used in assembly. The number in parenthe-
ses below each drawing refers to the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly. Note: Some
small parts may have been preassembled. If a part is not in the hardware kit, check to see if it has
been preassembled.
