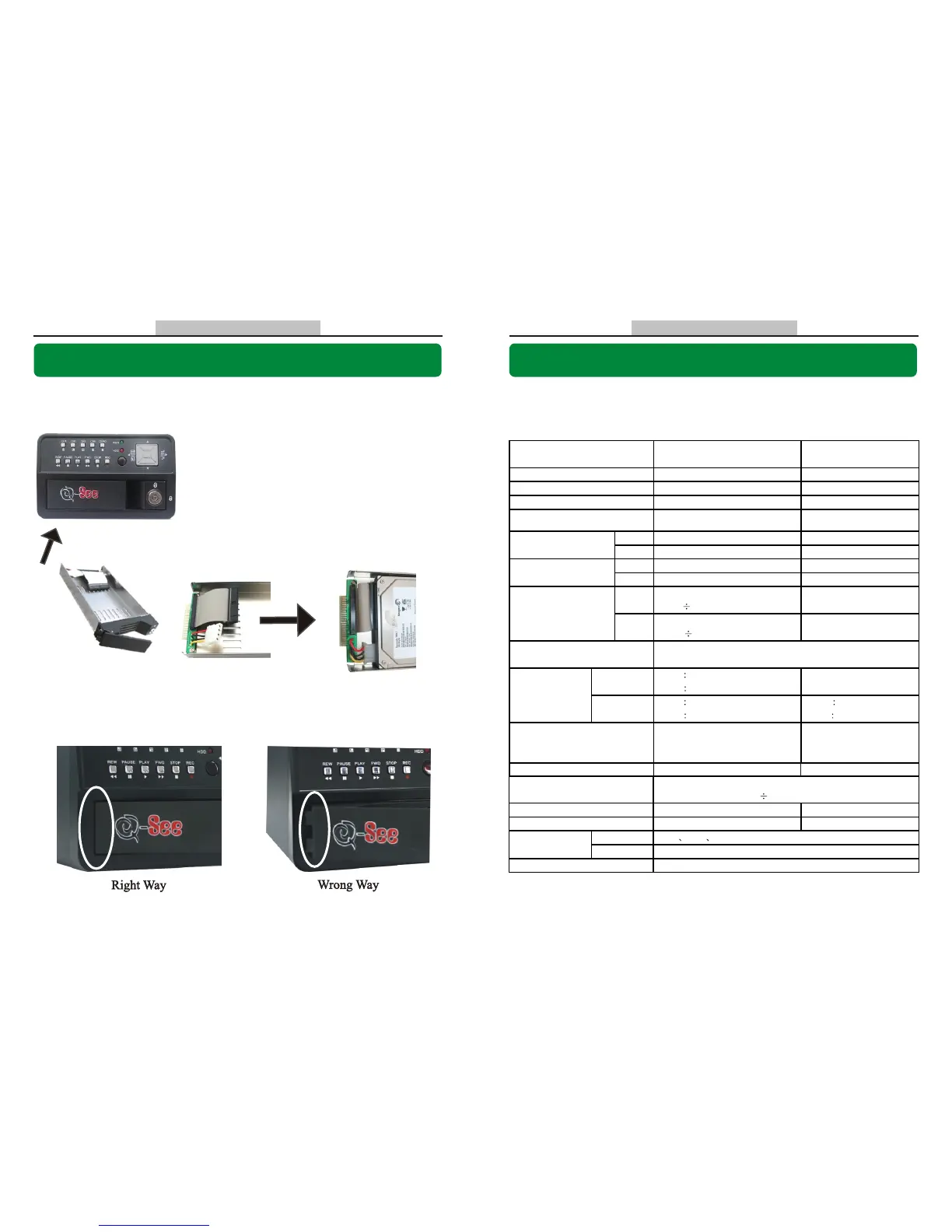

CAUTION: Do not remove the cartridge while the
DVR is on!
CAUTION: The wedge at the end of the cartridge handle must be fully inserted into
the compartment; otherwise the cartridge will not be able to insert into the DVR
firmly, it could also cause damage by scraping the body of the DVR.
Page 5
Page 22
NOTE: This package comes with a 250GB hard drive. You would follow these instructions if
you want or need to install a new hard drive.
1. Slide the HDD tray out of DVR body carefully.
2. Connect the power cord and data cable to hard disk
drive carefully.
3. Insert the HDD tray into DVR body.
4. Lock the HDD tray.
Make sure the HDD is set as MASTER.
Chapter 3 : Installation - 3.1 Installing Hard Drive
Chapter 9: Specifications
DVR Specifications
Estimated Record Length
120GB Hard drive @ 7 frames per second @ Normal Quality
(120*1024*1024 K byte) ( 7*15*60*60 ) = 332 Hours
Method
Time Date Event
Search
Full Screen YES
Dimension( L x W x H ) 12.25in * 5.25in * 3.25in
Video Output Channel 1 channel Composite BNC
NTSC 120 frames/second 4 x 30 frames/second
Display Frame Rate
PAL 100 frames/second 4 x 25 frames/second
NTSC Max.30 fps (Quad) Quad ModeRecording Frame Rate
(Quad)
PAL Max.25 fps (Quad) Quad Mode
NTSC
Each Channel =
30fps Number of Cameras
Max. 30 frames/s
(Total)Recording Frame Rate
(Each Mode)
PAL
Each Channel =
25 fps Number of Cameras
Max. 25 frames/s
(Total)
Record Mode
Continuous, Time Schedule, Motion Triggered.
Display
NTSC 720 x 480
PAL 720 x 576
Resolution
Record
NTSC 320 x 112, 640 x 224
PAL 320 x 136, 640 x 272
Quad 640 x 224 (total)
Each 640 x 224
Video Compression Format
(Each Channel)
Modified Motion -JPEG
(12-20K bytes/frame)
Low : 12K Byte
Normal : 15K Byte
High : 20K Byte
HDD Support Up to 500GB ATA -100 Interface
ITEM DESCRIPTION NOTE
Video Format NTSC / PAL
Operation System None STAND-ALONE
Camera Input Channel 4 channel Composite BNC
USB
For PC playback & backup
USB 2.0
Remote Control
Included

Q-See DVR Specifications

General

Brand	Q-See
Model	DVR
Category	Security System
Language	English
