10

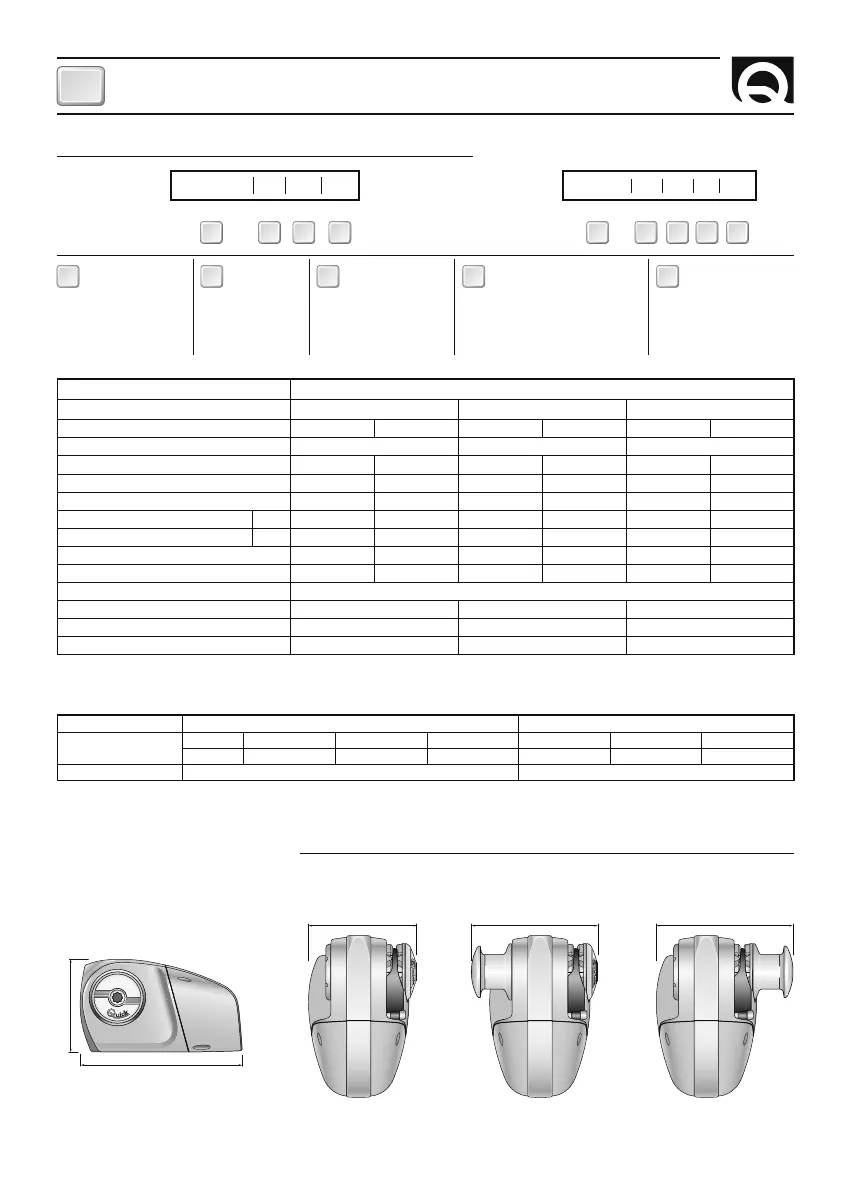

TECHNICAL DATA
GB
HECTOR 700/1000/1500W - REV007A
HOW TO IDENTIFY THE WINDLASS THROUGH THE CODE:
1° EXAMPLE:
HECTOR1012D
HECTOR 10 12 D
a
HECTOR 15 24 DB
a b c d a b c e
2° EXAMPLE:
HECTOR1524ADB
a a a a a a a
A
d
a
284 (11
3
/
16
) 318 (12
17
/
32
)250 (9
27
/
32
)
213 (8
3
/
8
)
373 (14
11
/
16
)
(1) After an initial period of use. • (2) Measurements taken with a gypsy for a 8 mm chain. • (3) Minimum allowable value for a total length L= < 20m (see pag. 34).
Determine the cable size according to the length of the wiring. • (4) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or
hydraulic-magnetic). • (5) On request, shafts and studs can be supplied for greater deck thicknesses.
DIMENSIONS OF MODELS mm ( inch )
HECTOR -
700/1000/1500W
HECTOR D
700/1000/1500W
HECTOR DB
700/1000/1500W
Name of the line:
[HECTOR] = horizontal
on deck
Motor output:
[ 7 ] = 700 W
[ 10 ] = 1000 W
[ 15 ] = 1500 W
Motor supply voltage:
[ 12 ] = 12 V
[ 24 ] = 24 V
Drum:
[
- ] = without drum
[ D ] = with drum
[ DB ] = drum on gypsy
a b c e
Carter:
[ A ] = motor case in aluminium
[ - ] = motor case in composite
material
d
(*) For the gypsy codes, please consult the exploded drawing on page 14.
(**) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick
®
” system.
(***) ISO EN 818-3.
Quick
®
reserves the right to introduce changes to the equipment and the contents of this manual without prior notice.
In case of discordance or errors in translation between the translated version and the original text in the Italian language, reference will be made to the Italian or English text.
F
GYPSY (*) 8 mm - 5/16” 10 mm - 3/8”
Chain size
8 mm 8 mm 5/16” 5/16” 10 mm 10 mm 3/8”
DIN 766 ISO (***) G4 BBB DIN 766 ISO (***) G4
Rope size (**) 9/16” - 5/8” 5/8”
MODELS
HECTOR • HECTOR D • HECTOR DB
MOTOR OUTPUT 700W 1000W 1500W
Motor supply voltage
12V 24V 12V 24V 12V 24V
Maximum pull
1100 Kg (2425 lb) 1300 Kg (2866 lb) 1500 Kg (3306,9 lb)
Maximum working load
300 Kg (661,4 lb) 370 Kg (815,7 lb) 400 Kg (881,8 lb) 490 Kg (1080,2 lb) 450 kg (992,0 lb) 550 kg (1212,2 lb)
Working load
100 Kg (220,5 lb) 125 Kg (275,6 lb) 130 kg (286,6 lb) 160 Kg (352,7 lb) 150 Kg (330,7 lb) 185 kg (407,8 lb)
Current absorption @ working load
(1)
90 A 50 A 140 A 80 A 150 A 85 A
Maximum chain speed
(2)
m/min 26,0 (85,3 ft/min) 29,2 (95,8 ft/min) 37,3 (122,4 ft/min) 39,6 (129,9 ft/min) 37,5 (123,0 ft/min) 40,0 (131,2 ft/min)
Maximum chain speed @ working load
(2)
m/min 14,0 (45,9 ft/min) 15,2 (49,9 ft/min) 17,8 (58,4 ft/min) 21,0 (68,9 ft/min) 17,8 (58,4 ft/min) 19,2 (63,0 ft/min)
Motor cable size
(3)
25 mm
2
(AWG3) 10 mm
2
(AWG7) 35 mm
2
(AWG2) 16 mm
2
(AWG5) 50 mm
2
(AWG0) 25 mm
2
(AWG3)
Protection circuit breaker
(4)
60 A 40 A 80 A 50 A 100 A 50 A
Deck thickness
(5)
20 ÷ 60 mm (25/32” ÷ 2” 11/32)
Weight - Hector - (without drum)
22,6 Kg (49,8 lb) 23,9 Kg (52,7 lb) 24,0 Kg (52,9 lb)
Weight - Hector D (with drum)
24,0 Kg (52,9 lb) 25,3 Kg (55,8 lb) 25,4 Kg (56,0 lb)
Weight - Hector DB (Drum on the gypsy)
25,2 Kg (55,5 lb) 26,5 Kg (58,4 lb) 26,6 Kg (58,6 lb)
