TECHNICAL DATA
GB
DP2E 600/1000/1100 - REV000A
204,5 (8
1
/
16
)
Ø 105 (4
5
/
32
)
140 (5
1
/
2
)
83 (3
1
/
4
)
145,4 (5
3
/
4
)
68 (2
43
/
64
) 78 (3
1
/
16
)
196 (7
23
/
32
)
(1) After an initial period of use.
(2) Measurements taken with a gypsy for a 8 mm chain.
(3) Minimum allowable value for a total length L<20m (see pag. 34). Determine the cable size according to the length of the wiring.
(4) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or hydraulic-magnetic).
(5) On request, studs can be supplied for greater deck thicknesses.

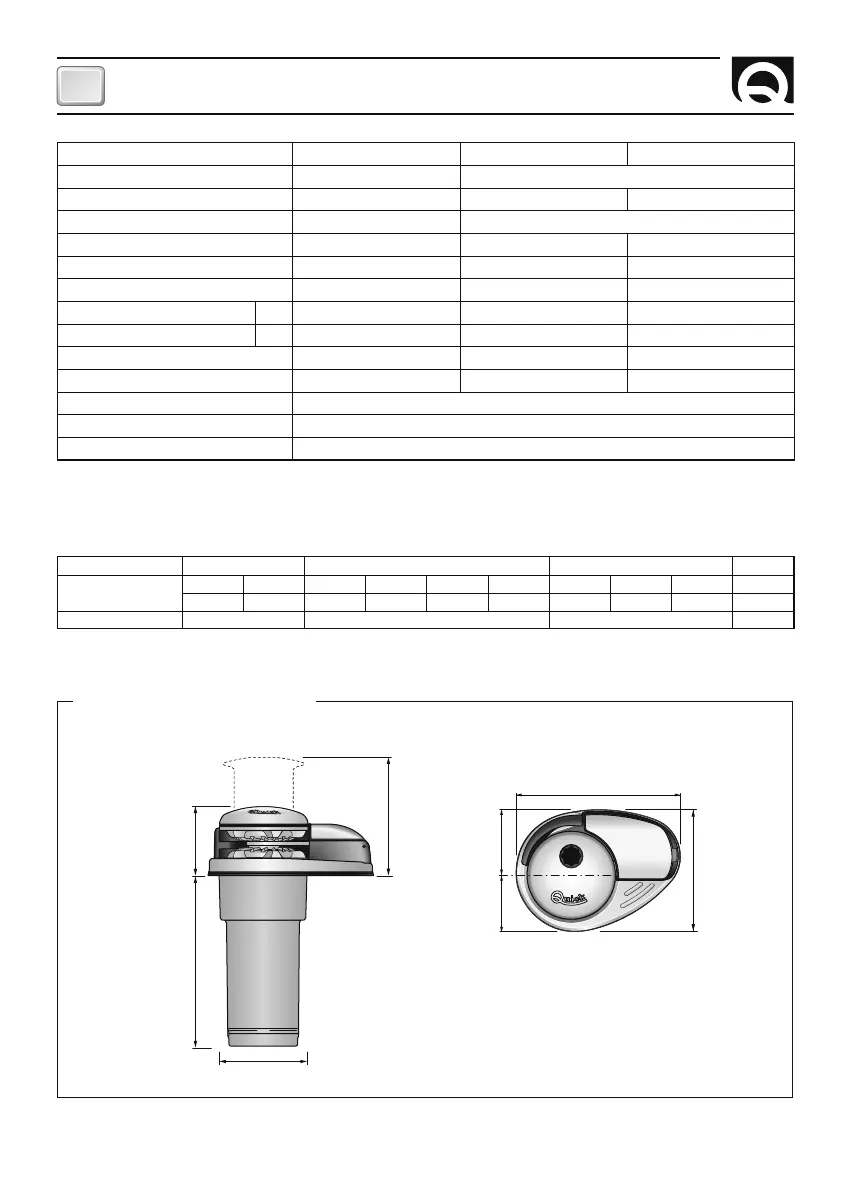

DIMENSIONS OF MODELS
mm ( inch )
DP2E 600 / 1000 / 1100 - / D
(*) For the gypsy codes, please consult the exploded drawing on page 14.
(**) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick
®
” system.
(***) ISO EN 818-3.
Quick
®
reserves the right to introduce changes to the equipment and the contents of this manual without prior notice.
In case of discordance or errors in translation between the translated version and the original text in the Italian language, reference will be made to the Italian or English text.
F
MODEL DP2E 600/600D DP2E 1000/1000D DP2E 1100/1100D
MOTOR POWER 500W 800W
Motor supply voltage 12V 12V 24V
Maximum pull 620 Kg (1366,9 lb) 820 Kg (1807,8 lb)
Maximum working load 200 Kg (440,9 lb) 290 Kg (639,3 lb) 290 Kg (1060 lb)
Working load 65 Kg (143,3 lb) 95 kg (209,4 lb) 95 kg (209,4 lb)
Current absorption @ working load (1) 60 A 84 A 53 A
Maximum chain speed (2) m/min 22,9 (75,1 ft/min) 22,5 (73,8 ft/min) 22,6 (74,1 ft/min)
Maximum chain speed @ working load (2)
m/min 18,6 (61,0 ft/min) 15,2 (49,9 ft/min) 16,8 (55,1 ft/min)
Motor cable size (3) 16 mm
2
(AWG5) 25 mm
2
(AWG3) 10 mm
2
(AWG7)
Protection circuit breaker (4) 50 A 80 A 40 A
Deck thickness (5) 20 ÷ 40 mm (25/32” ÷ 1” 9/16)
Weight - model without drum 8,3 Kg (18,3 lb)
Weight - model with drum 9,1 Kg (20,1 lb)
GYPSY
(*)
6 mm 7 mm - 1/4” 8 mm 5/16”
Chain size
6 mm 6 mm 7 mm 7 mm 1/4” 1/4” 8 mm 8 mm 5/16” 5/16”
DIN 766 ISO DIN 766 ISO G4 BBB DIN 766 ISO BBB G4
Rope size (**) 1/2” 1/2” 1/2” 1/2”
