Page 8
Prior to actually running the compressor, check the
following items:
1. Crankcase oil - Make sure oil is at the
correct level by checking the dipstick.
2. Make sure all rags, tools, oil, etc. are away
from the unit.
3. Open the air system to free it of any pressure.
4. Switch the compressor on for a few
revolutions to make sure the rotation is
correct. Correct rotation is clockwise when
facing the front (decal side) of the unit.
Operate the compressor for a few minutes
unloaded (air system open) then allow the
compressor to pump up. Make sure the electrical
pressure switch properly switches o the
compressor according to the setting desired.
175 psi for Two Stage and 100 psi for Single
Stage.
Make sure the pressure in the tank does
not exceed its rating: Single Stage units at
100 psi, Two Stage units at 175 psi.
If the pressure gauge indicates a pressure
that is higher than these maximum
pressures, shut o compressor immediately
and call your distributor.
CAUTION
STARTING THE COMPRESSOR
Gas Drive Models

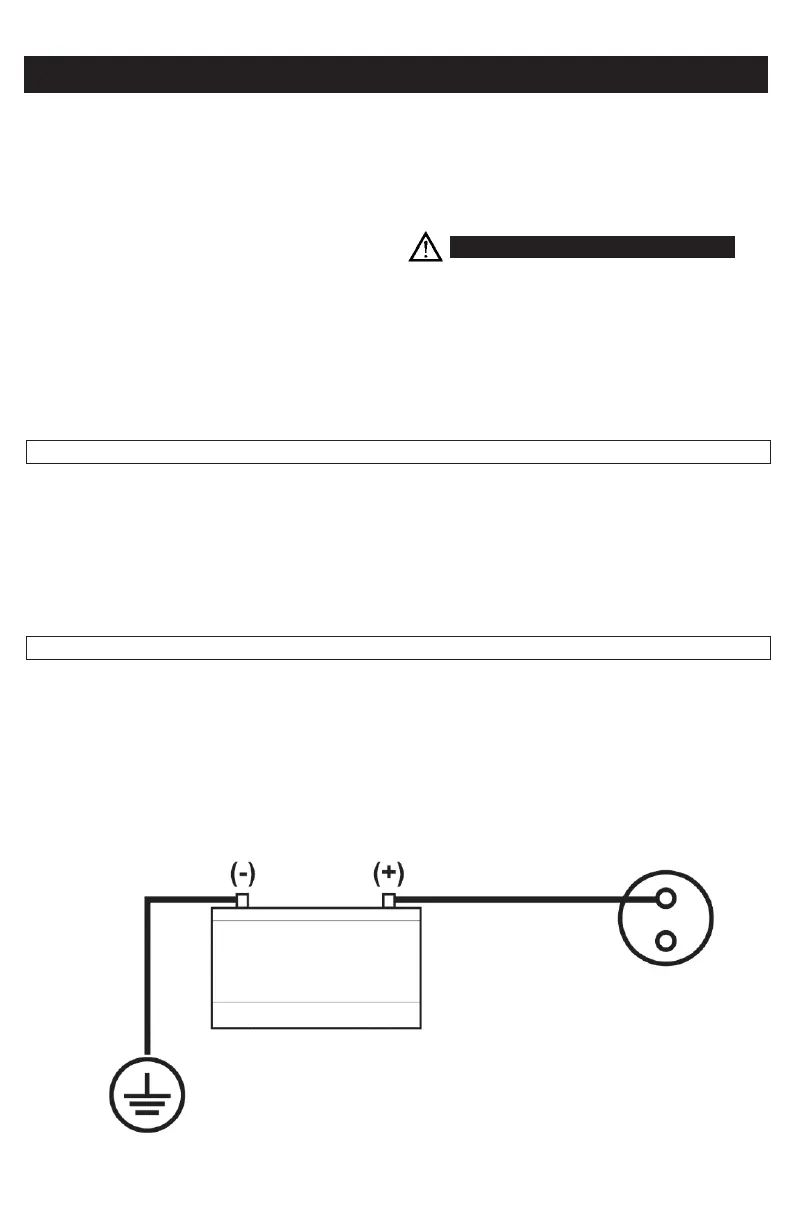

Battery Connection Instructions for Electric Start Engines
PLEASE REFER TO YOUR ENGINE OPERATION MANUAL FOR PROPER
STARTING INSTRUCTIONS.
GASOLINE DRIVEN COMPRESSORS ARE EQUIPPED WITH A COLD START VALVE
FOR LOADLESS STARTS.
NOTE: Make sure to follow instructions carefully to avoid a short and possible damage to the starter
solenoid and/or battery.
1. Connect the positive (+) terminal on the battery to the starter solenoid.
2. Connect the negative (-) terminal on the battery to an engine mounting bolt or other acceptable
ground connection.
Always connect the positive (+) battery cable to the starter solenoid before connecting the negative (-)
battery cable. Use a battery with 45 amp hour minimum capacity. NUMBER 2 WIRE OR LARGER IS
REQUIRED UP TO 14 FT. Use a battery boot on the starter terminal.
BATTERY
(12 Volt)
Starter Solenoid
