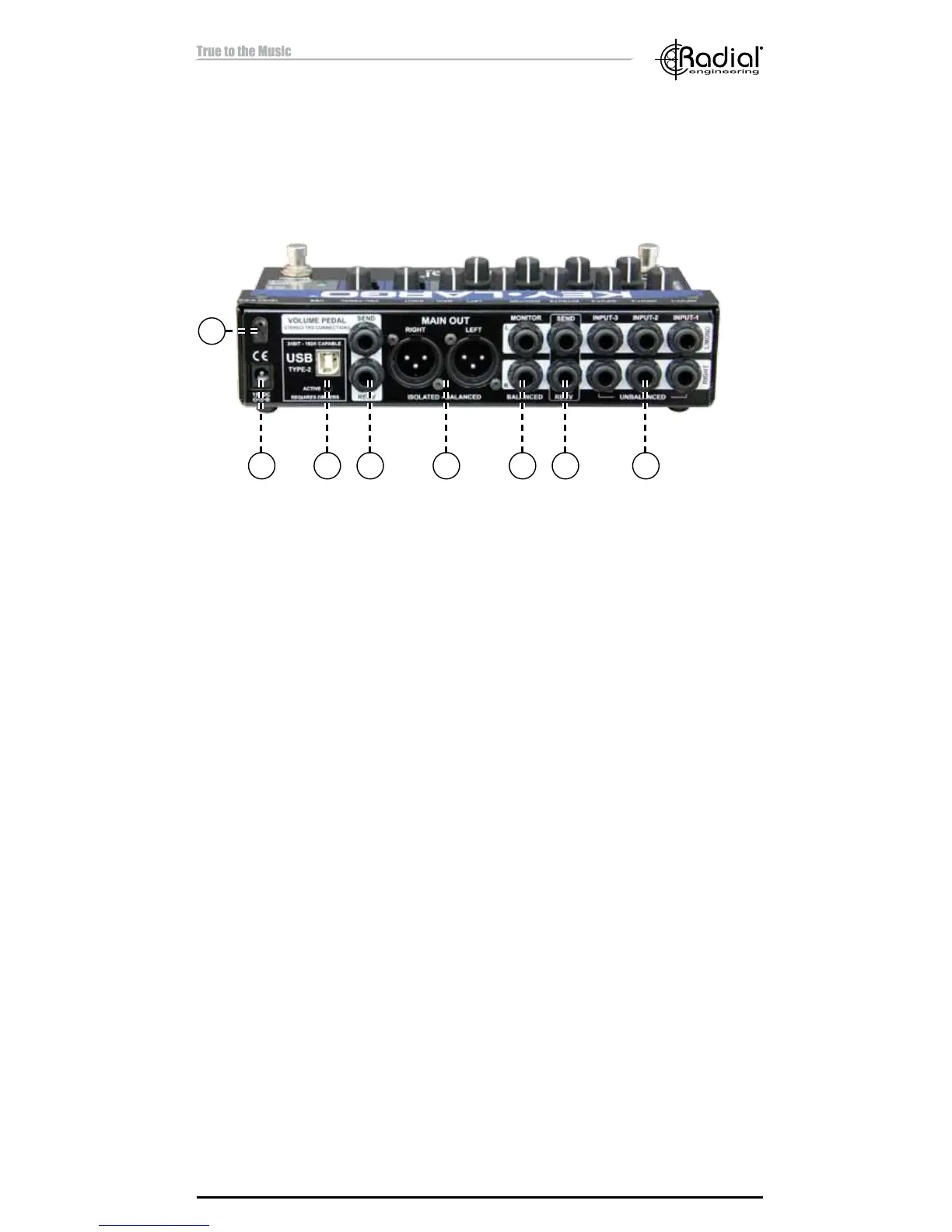

13. STEREO INPUTS (1, 2, 3): Used to connect the analog outputs of
your keyboards to the Key-Largo.
14. EFFECTS SEND & RECEIVE: Stereo ¼” TRS jacks used to feed
an external effects device.
15. MONITOR OUT: Stereo ¼” TRS balanced outputs are used to
feed a pair of powered speakers for on-stage monitoring.
16. MAIN OUT: Stereo XLR balanced outputs are used to feed the PA
system - transformer isolated to eliminate ground loops.
17. VOLUME PEDAL SEND / RECV: Stereo TRS insert for a master
volume pedal.
18. USB TYPE-2: High quality USB I/O for Mac or PC. Drivers
required for PC.
19. 15VDC: Connection for the Radial 15VDC/260mA power supply
(included).
20. CABLE CLAMP: Prevents accidental power disconnection by
locking down the AC adapter cable.
