P.C.B. SM 20015 – boiler settings
12

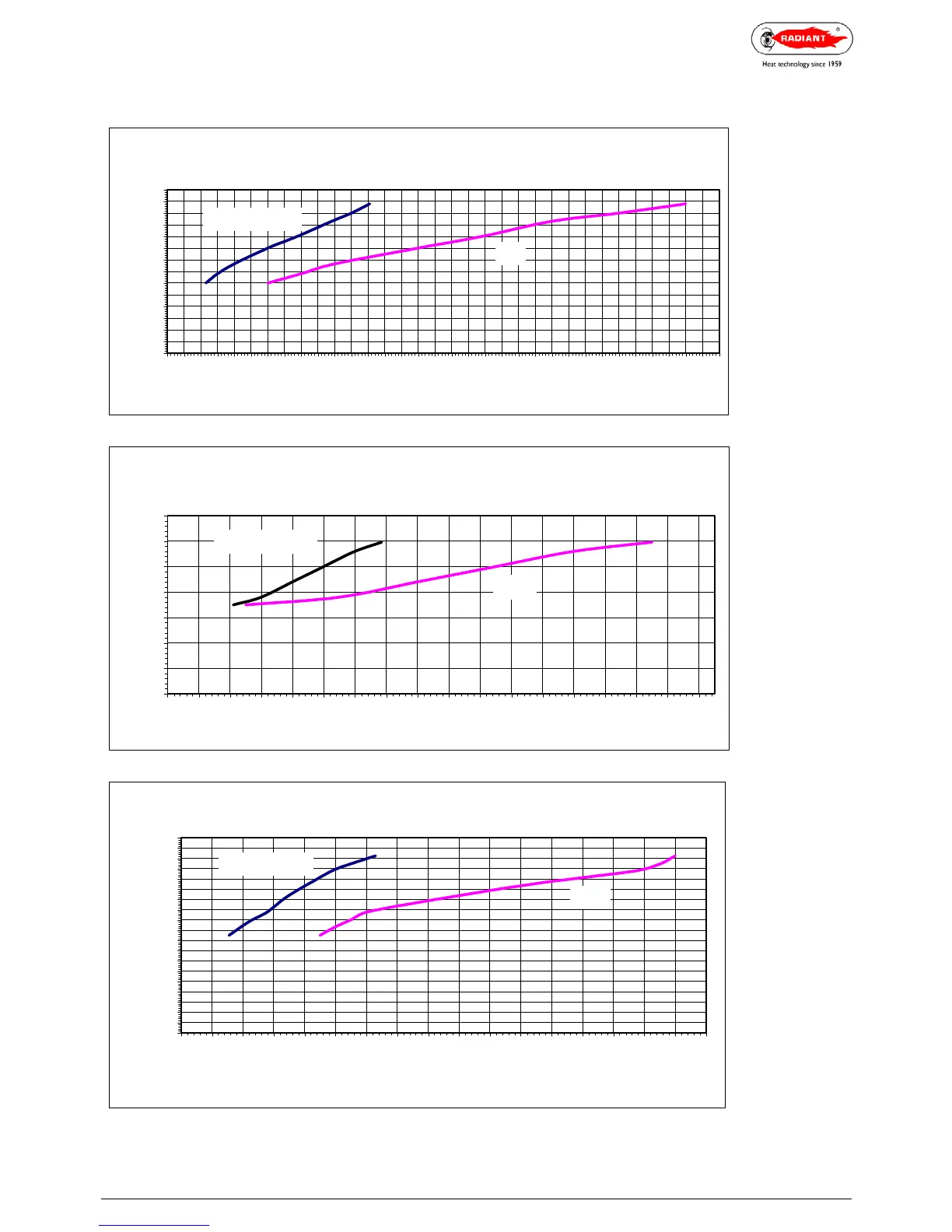

MAXIMUM HEATING OUTPUT GAS PRESSURE DIAGRAMS
For 24 kW output boilers
(G20 - G30/31)
LPG
NATURAL GAS
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
0123456789101112131415161718192021222324252627282930313233
Gas pressure in mbar
Output capacity in kW
For 27 kW output boilers
(G20 - G30/31)
L,P,G,
NATURAL GAS
0
5
10
15
20
25
30
35
0246810121416182022242628303234
Gas pressure in mbar
Output capacity in kW
For 32 kW output boilers
(G20 - G30/31)
L.P.G.
NATURAL GAS
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34
Gas Pressure in mbar
Output capacity in kw
mod.
RMAS 20 E
RMAS 20 E /Plusbox
mod.
RMA 24 E
RMAS 24 E
RBA 24 E
RBA CS 24 E
RBA 100 E
RBA CS 100 E
RMAS 24 E / Maxibox
mod.
RMAS 30 E
RBA CS 30
RBA CS 30/100
RMAS 30 / Superbox
