Installation Guide 3
Introduction
Product description
The linear rudder position sensor (part number: M81188) is designed
for ‘bullhorn’ style hydraulic outboard steering systems.
It is totally weatherproof and designed to be mounted on the bullhorn
ram. It transmits the precise position of the boat’s rudder to the
autopilot.

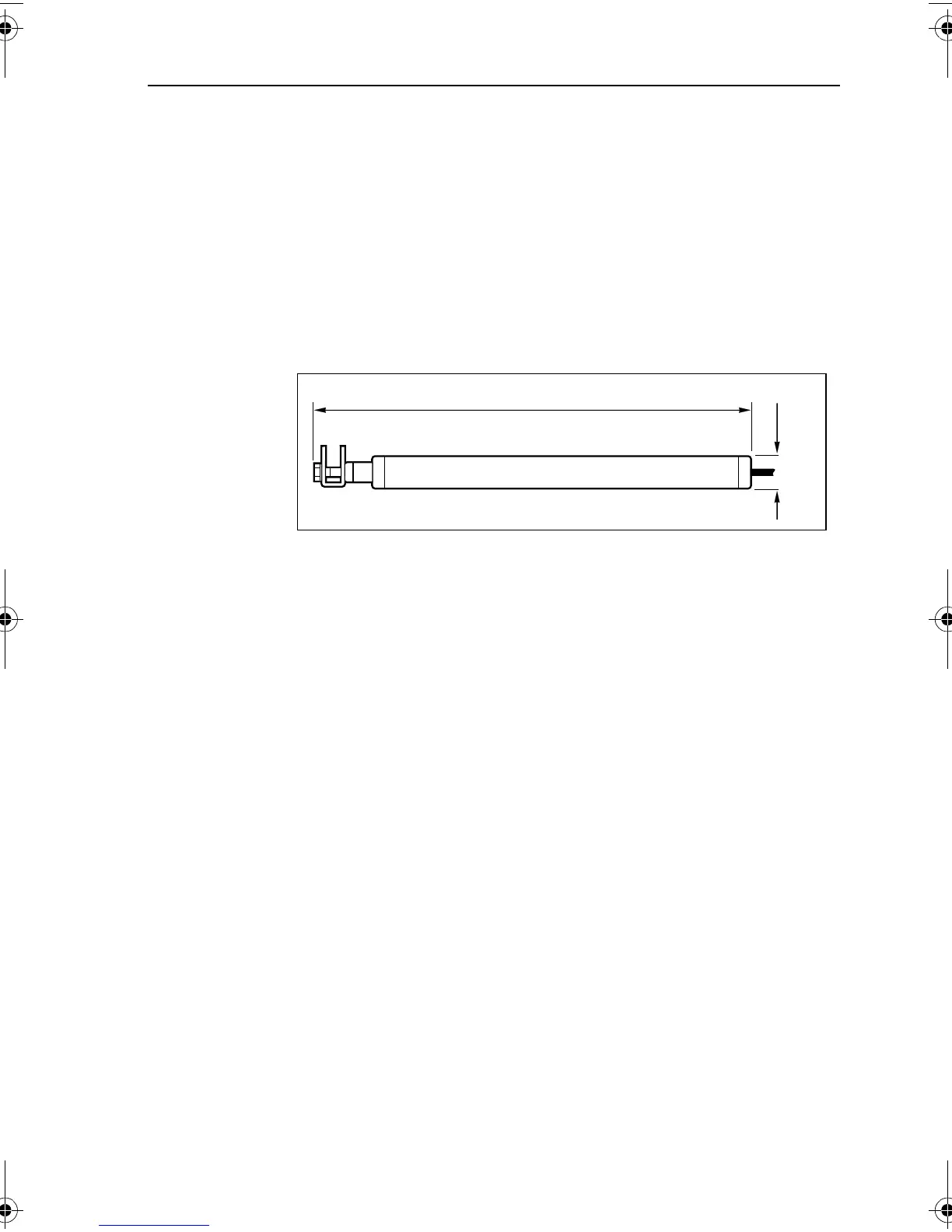

Linear rudder position sensor - dimensions
Parts supplied
The linear rudder position sensor package contains:
• this installation guide
• linear rudder position sensor
• spacers (x2)
• 80 mm (3.1 in) hose clamps (x2)
• U-bracket
• M8 nut and washer
• female spade connectors (x4)
425 mm (16.75 in)
32 mm
(1.3 in)
D5389-1
