Raynor CORPORAL II STANDARD Series User Manual

41

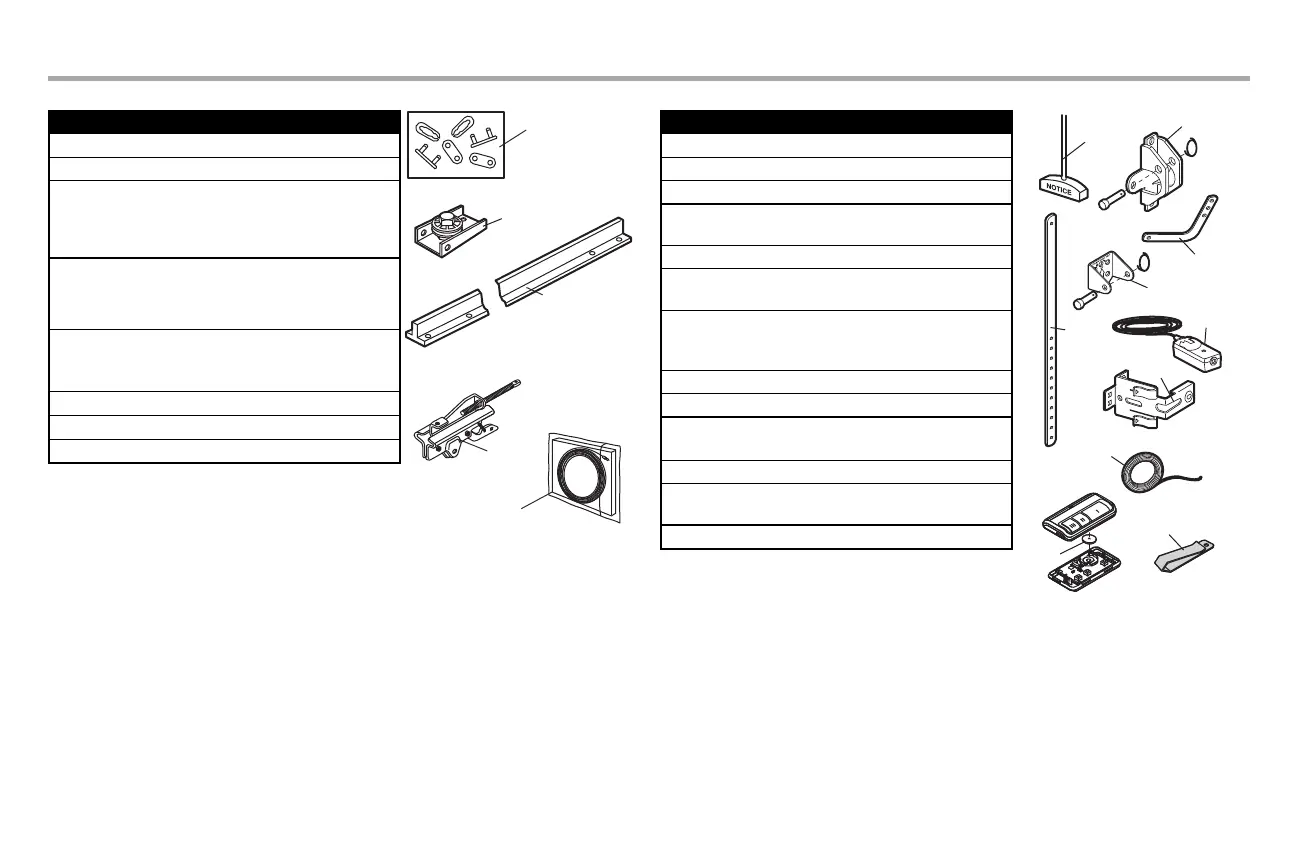

RAIL ASSEMBLY PARTS
Description Part Number
1 Master link 004A1008
2 Chain Pulley Bracket 041A4813
3 Complete trolley assembly includes:
Threaded Shaft (1), Nuts (2), Washers,
Clevis Pin, Ring, Master Link, Chain
Extension
041A3489
4 One-Piece Rail - 7' (2.1m)
One-Piece Rail - 8' (2.4m)
One-Piece Rail - 10' (3m)
5 Full chain assembly - 7' (2.1m) 041D3484
Full chain assembly - 8' (2.4m) 041D3483
Full chain assembly - 10' (3m) 041D3485
6 Trolley Threaded Shaft 041A6689
Not Shown
Rail Grease K083A0011-1
5
1
4
3
2
INSTALLATION PARTS
Description Part Number
1 3V CR2032 lithium battery K010A0020
2 Remove control visor clip K02980137
3 Emergency release rope and handle 041A2828
4 2- Conductor bell wire, white and
white/red
K0298137
5 Door bracket with clevis pin and fastener 041A5047
6 Header bracket with clevis pin and
fastene
041A353
7 Safety sensor kit with receiving and
sending sensors with 3 feet (.9 m) 2-
conductor bell wire
041A5034
8 Straight door arm section 4178B0034B
9 Curved door arm 041B0035B
10 Safety reversing sensor brackets (2)
K010A0020
Not Shown
Installation hardware bag (includes
hardware listed on page 5)
041A2770-6
Owner's Manual 114-5722-000
9
3
6
5
2
10
7
8
4
1
Repair Parts
