Adjusting the Hi Delta Setpoint

Use the MENU key to scroll to the SETUP/ADJUST

menu, then use the ITEM key to scroll to the SET-

POINT item. Adjust the Setpoint using the UP and

DOWN arrow keys. Minimum setpoint for H, WH and

P models is 50°F, Maximum setpoint for H models is

220°F, for WH models 150°F. Maximum setpoint for P

models is 106°F.

View Menu

The VIEW menu is the default menu. It displays sen-

sor temperatures, the modulation rate of the blower,

heater cascade status, pump operation and CFH (Call

For Heat) information. Some of the items displayed

are mode specific and are only observable when its

corresponding mode is active.

User Interface

The user interface consists of several Menu options.

Press the MENU button to scroll through the different

menus in the interface. Press the ITEM button to scroll

hrough available items within a selected menu. And,

the UP and DOWN buttons allow for setting changes

to items in the ADJUST menu. Refer to Fig. 47 for dis-

play and key locations.

For detailed descriptions of the various screens, con-

sult the VERSA IC Control I&O Manual (Catalog

#5000.72).

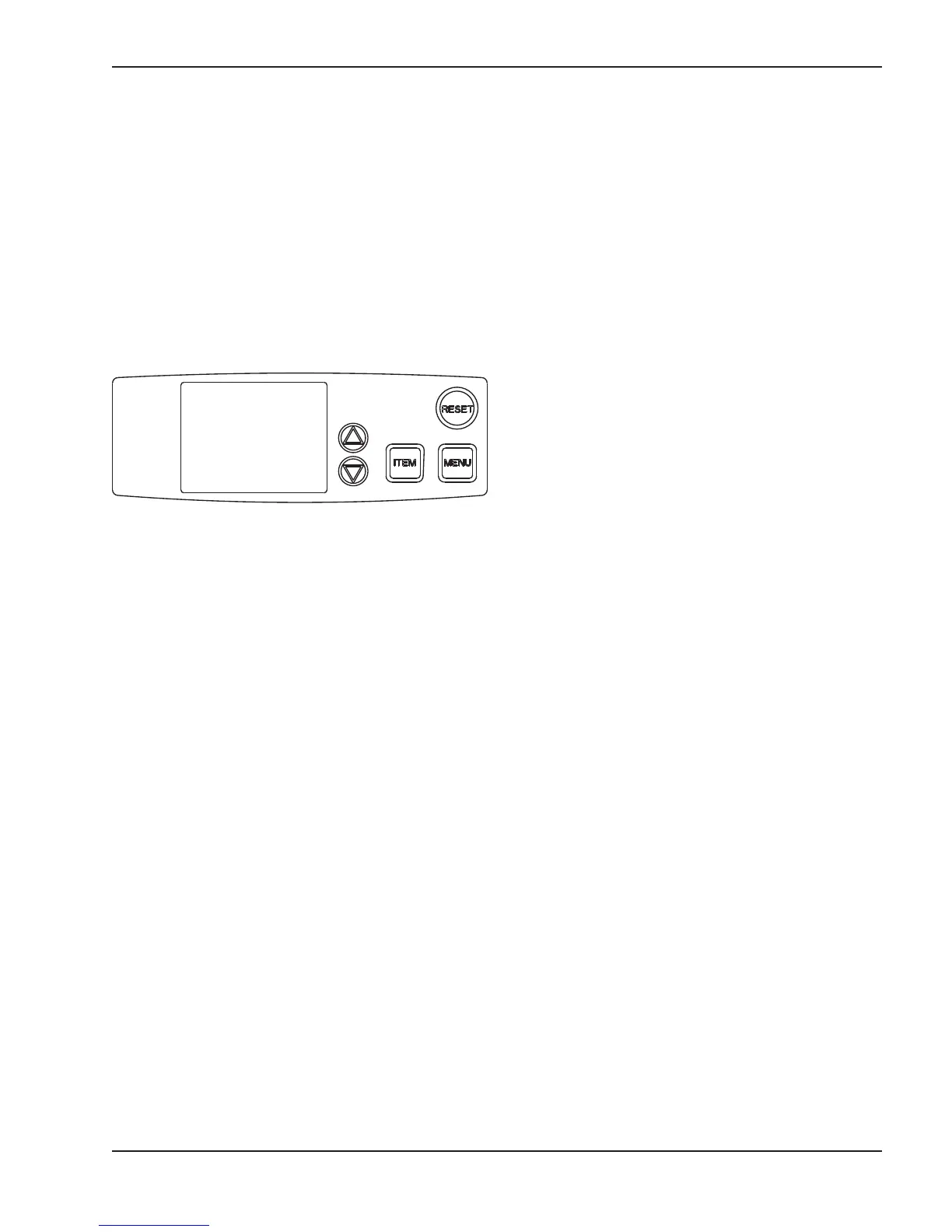

Fig. 47: User Interface

Menu - Initial Adjustment

To change settings use the MENU key to scroll to the

SETUP/ADJUST menu. The ADJUST menu allows

the installer to make adjustments to items shown in

able P.

Refer to the VERSA IC Control I&O Manual (Catalog

#5000.72) for detailed setup instructions.
