Razor GGC2244M User Manual

Outdoor LP Gas Griddle And Grill
Model No. GGC2244M
4
Parts List
1
Lid Handle G2242-000
2
Lid* G2242-010
3
Side Shelf G2242-020
4
Grill Body Assembly* G2242-030
5
U Burner* G2242-060
6
Left Burner* G22491L-070
7
Right Burner (2)* G2242-040
8
Bottle Opener G1932-11IL
9
Grease Cup A G1860-060
10
Control Knob Bezel (4)* G2225-080
11
Logo* G2225-090
12
Control Knob (4) G2225-100
13
Lighting Hook* G2228-070
14
Regulator/Hose Assembly* B0308-A15
15
Grease Cup B G2242-100
16
Griddle Surface* G2242-080
17
Cooking Grid* G2242-090
18
Left Leg Assembly G2242-100
19
Right Leg Assembly G2242-110
20
Foot (2)* B0305-D40
21
Safety Latch* G2242-120
22
Rubber Spacer (4)* G2030-130
23
Axle G2242-130
24
Wheel(2) B0340-010
25
Wheel Cap (2) B0340-020
* Pre-assembled

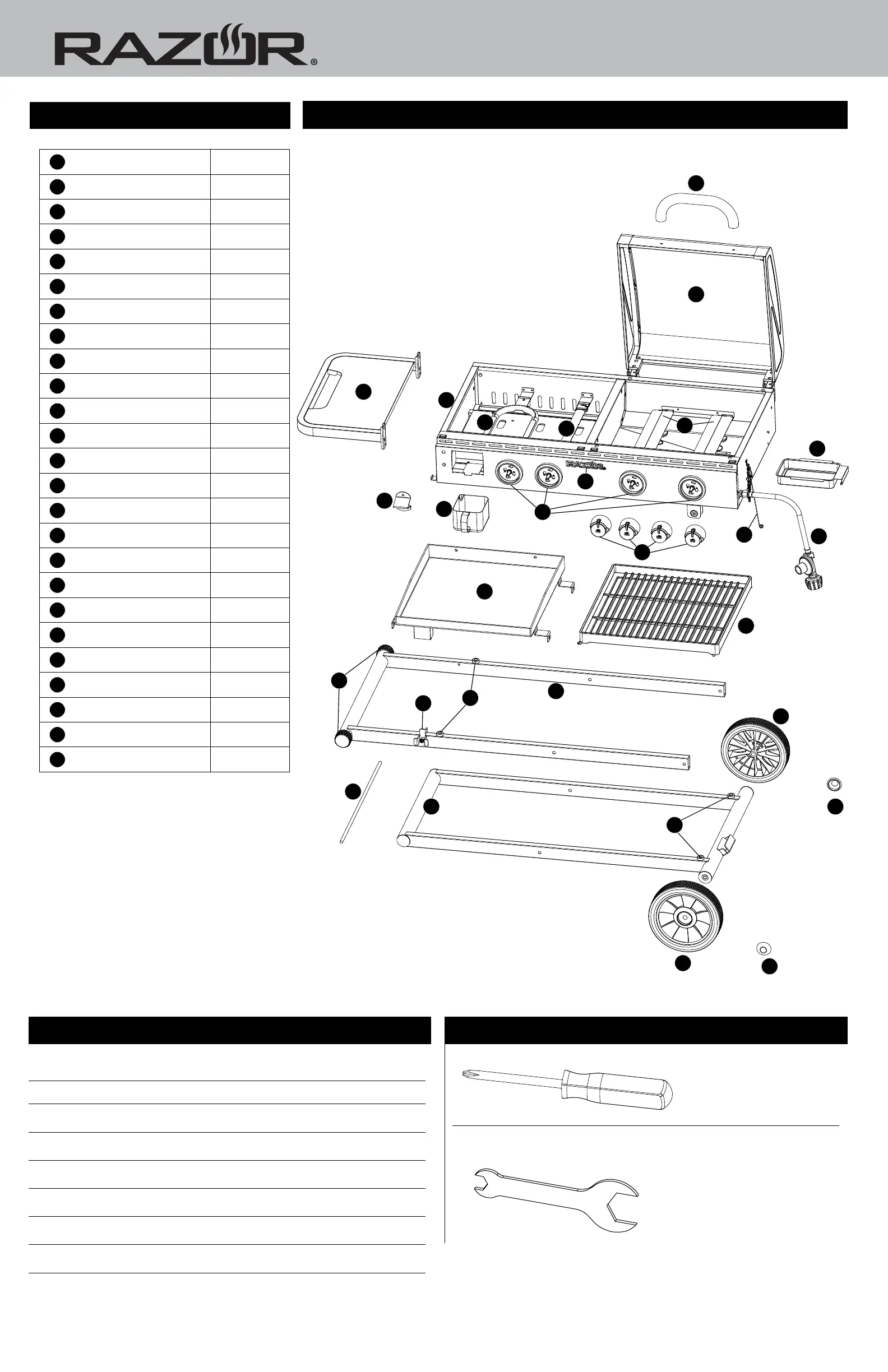

Expanded View
2
1
3
4
6
5
8
9
14
15
16
17
18
19
7
10
12
20
22
22
21
23
24
24
25
25
13
11
Hardware Tools Required for Assembly (Included)
Phillips Head Screwdriver 1 pc
M10-M8 Wrench 1 pc
A
Screw
M6x15 Nickel Plated Phillips Truss Head
8 pcs
B
Washer
ø6 Nickel Plated
2 pcs
C
Lock Washer
ø6 Nickel Plated
2 pcs
D
Nut
M8 Nickel Plated Hex
2 pcs
E
Wheel Washer
ø19x13 PP
2 pcs
F
Pin
ø8x32 Nickel Plated
2 pcs
G
Cotter Pin
ø1.4x38 Nickel Plated
2 pcs
H
Screw
M10x57 Nickel Plated
2 pcs
