25. If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded to provide
some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code,
ANSI/NFPA NO.70, provides information with respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge
unit, connection to grounding electrodes, and requirements for the grounding electrodes. (See figure A)
24. To reduce the risk of electric shock, the grounding of center pin of plug must be maintained.
Safety Strap
Caution: Pushing, pulling or climbing on the TV may cause the TV falling. Do not let chlidren climb or hang on the TV.
Always place the TV on a sturdy, level, stable surface that can hold the weight of TV. And if possible, secure the TV
according to the instruction below (Note: The fastening components such as screws are not supplied with TV).
Step one: Insert the M6 mounting screws into the upper two wall mounting screw holes and fasten them (Figure B).
Step two: Insert anchors to wall and connect the bolts and anchors with ropes or chains (Figure C).
Safety Precautions
ANT E NNA
LEA D IN
W
IRE
GRO U ND C
LAM P
GRO U NDING CONDU C TORS
(NE C S
ECT I ON 81 0 -21)
GRO U ND C
LAM P S
POW E R SERV I CE GR O UNDING
E
LEC T RODE S
YST EM
(NE C A
RT 2 50, P A RTH)
ELE C TRIC S ERVIC E
E
QUI P MEN T
A
NTE N NA
D
ISC H ARGE U N IT
(
NEC S
ECT I ON 81 0 -20)

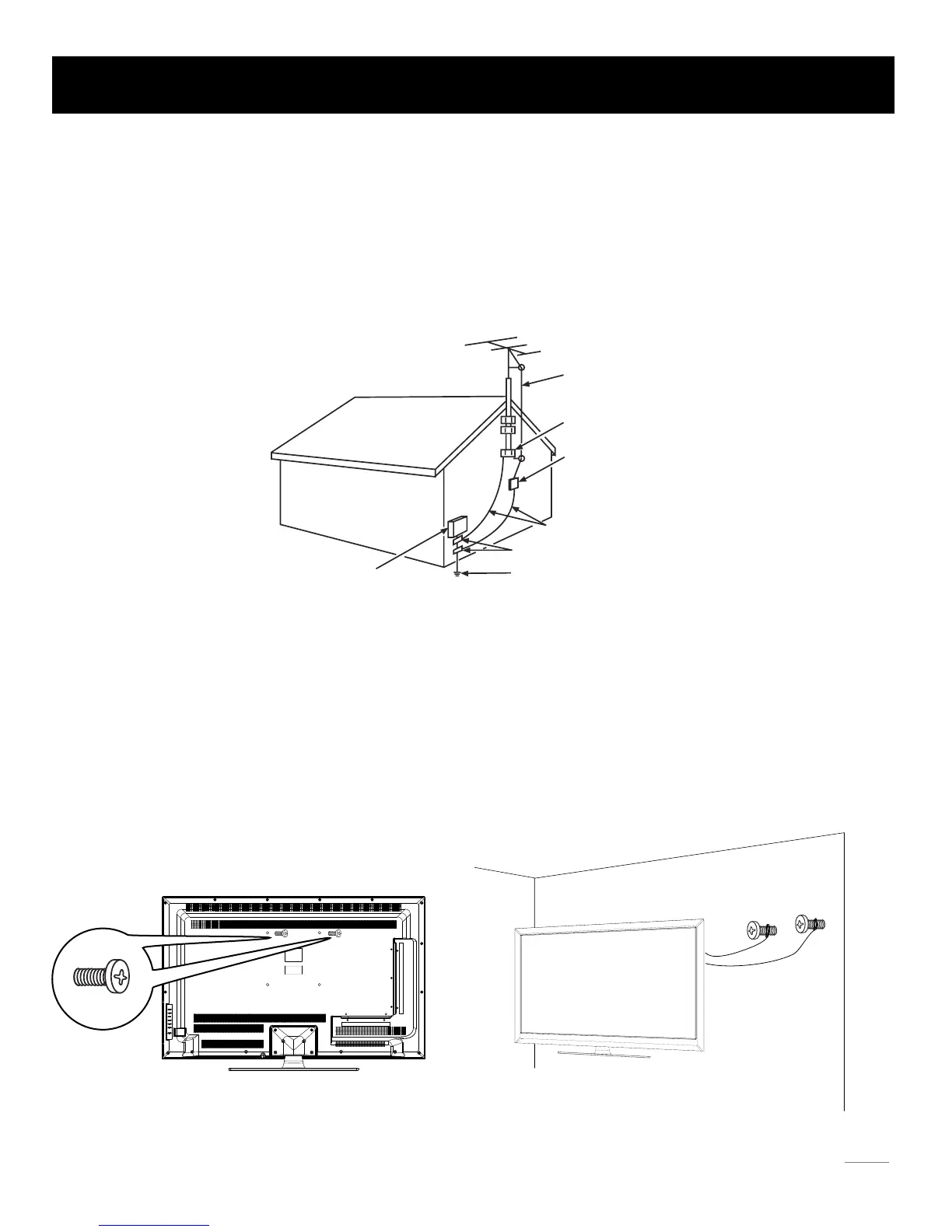

Figure A
23. WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
Figure B Figure C
M6 Screws
Wall
