RCA PRO-SW100P User Manual

5
If you use MEGACABLE

, or any other
high quality, low gauge speaker wire, the
terminals will be too small to
accommodate the wires. You need two
pairs of speaker pins (available at your
local RadioShack store) to make the
connection. Follow these steps to connect
the wires to each terminal using speaker
pins.
1. Separate the conductors for a length
of about 2 inches on the end of each
wire. Then strip
1
/
2
inch of insulation
from the ends of each conductor and
twist the wire ends.
2. Position each wire end between the
open barrel ends of a speaker pin.
3. Using a pair of pliers, crimp down the
open barrel ends of the speaker pin to
hold the wire end in place.
4. Plug the speaker pin into the proper
HIGH LEVEL OUTPUT
terminal on
the PRO-SW100P.
CONNECTING TO POWER
Plug the PRO-SW100Ps AC power cord
into an AC outlet. The STANDBY indicator
lights green. If the subwoofer does not
receive a signal for about 11 minutes, the
STANDBY indicator lights red.
ADJUSTING THE VOLUME
Once you have made all connections,
follow these steps to adjust the PRO-
SW100Ps volume.
1. Rotate
VOLUME CONTROL
to
MIN
.
2. Turn on your amplifier/receiver and
another component (such as a radio,
cassette player, CD player, or
turntable).
3. Begin play of an audio source (such as
a radio) and adjust the amplifier/
speakers overall volume to a
comfortable level. Rotate
VOLUME
CONTROL
clockwise, a little at a
time, until you achieve a pleasing
balance of bass between the PRO-
SW100P and the main speakers (and
satellite speakers, if used). Bass output
should not overpower the main
speakers, but should blend across the
entire musical range.

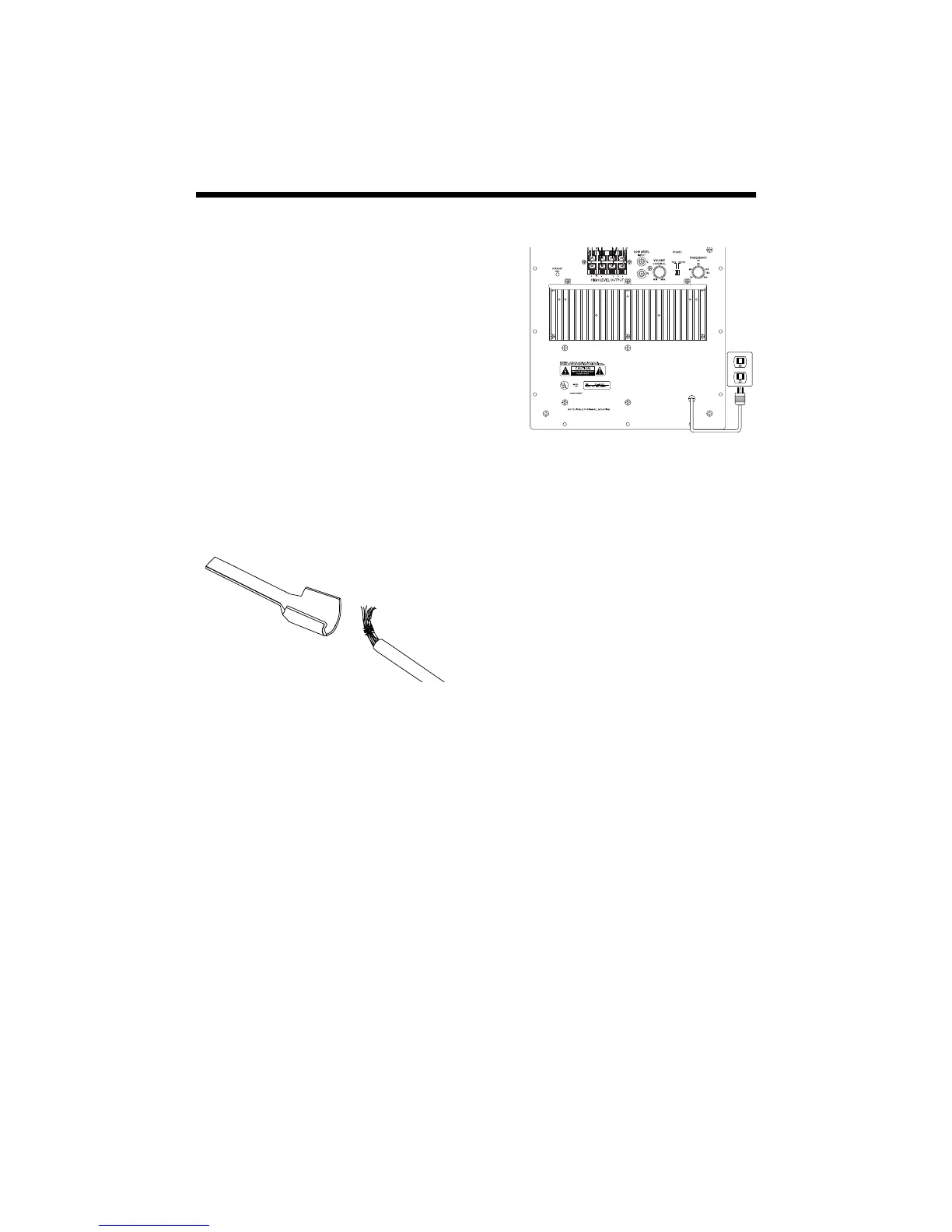

To PRO-SW100P
From Left or Right Speaker
AC120V
60Hz
STANDBY
