Main unit description
Control Panel Button Function

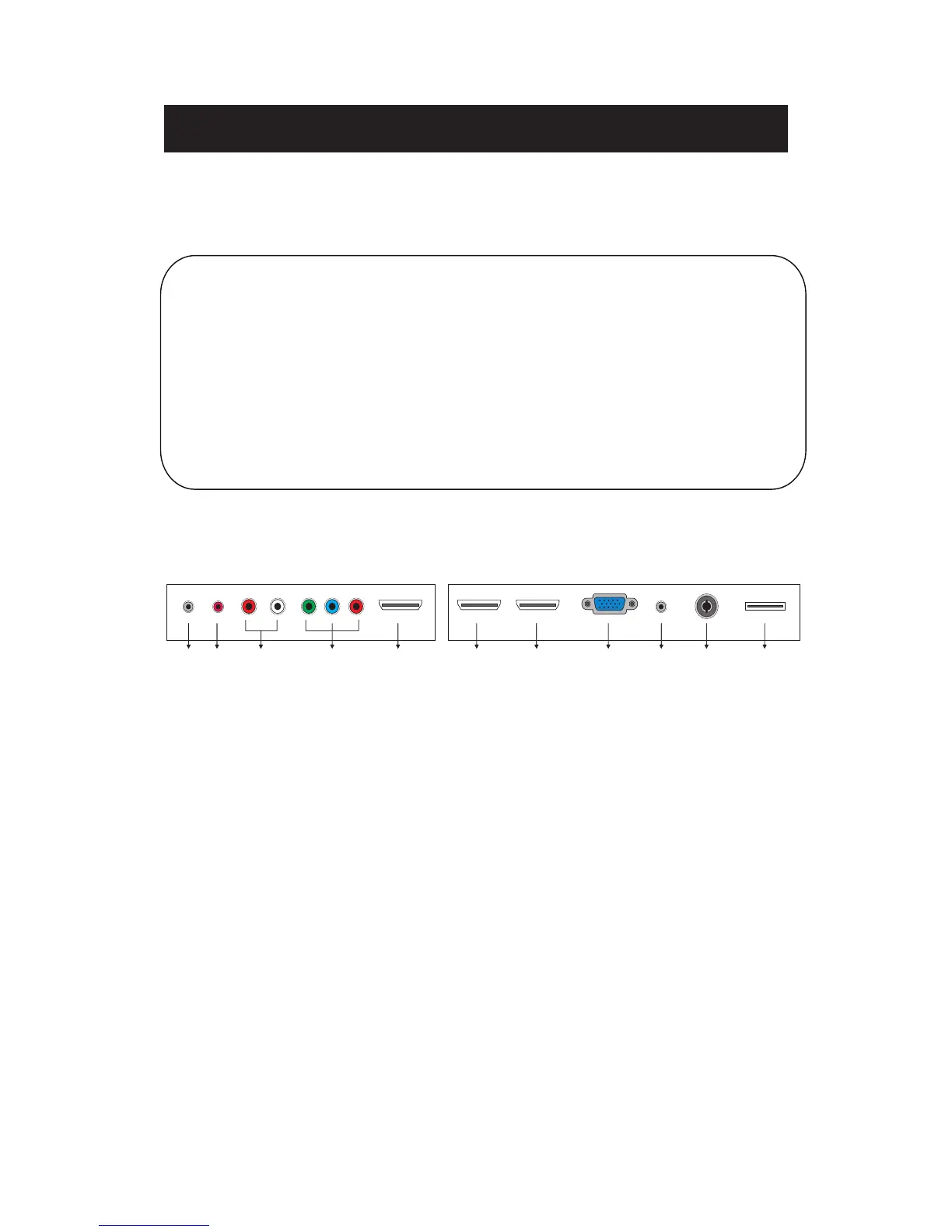

TV Terminal Connections
1.HEADPHONE out terminal.
2. Coaxial out terminal.
3. AUDIO input terminal.（Audio input terminal for YPBPR and AV）
4. Component input terminal.（OR Video input terminal）
5. HDMI1 input terminal.
6. HDMI2(MHL) input terminal.
7. HDMI3 input terminal
8. VGA input terminal of simulation signal of PC.
9. PC AUDIO input terminal.
10. RF antenna.
11. USB input terminal（Only be used to upgrade）.
16
VOL+
:
Increase volume; if OSD is active, functions as right in the menu;
in SOURCE menu, functions as ENTER.
VOL- :
Decrease volume; if OSD is active, functions as left in the menu.
CH+ :
Change channel up; if OSD is active, functions as up in the menu
CH- :
MENU : Press to select the main menu.
SOURCE : Select the input signal.
POWER : Switch on when at standby mode or enter the standby mode.
Change channel down; if OSD is active, functions as down in
the menu.
1 2 3 4 5 6 7 8 9 10 111 2 3 4 5 6 7 8 9 10 11
