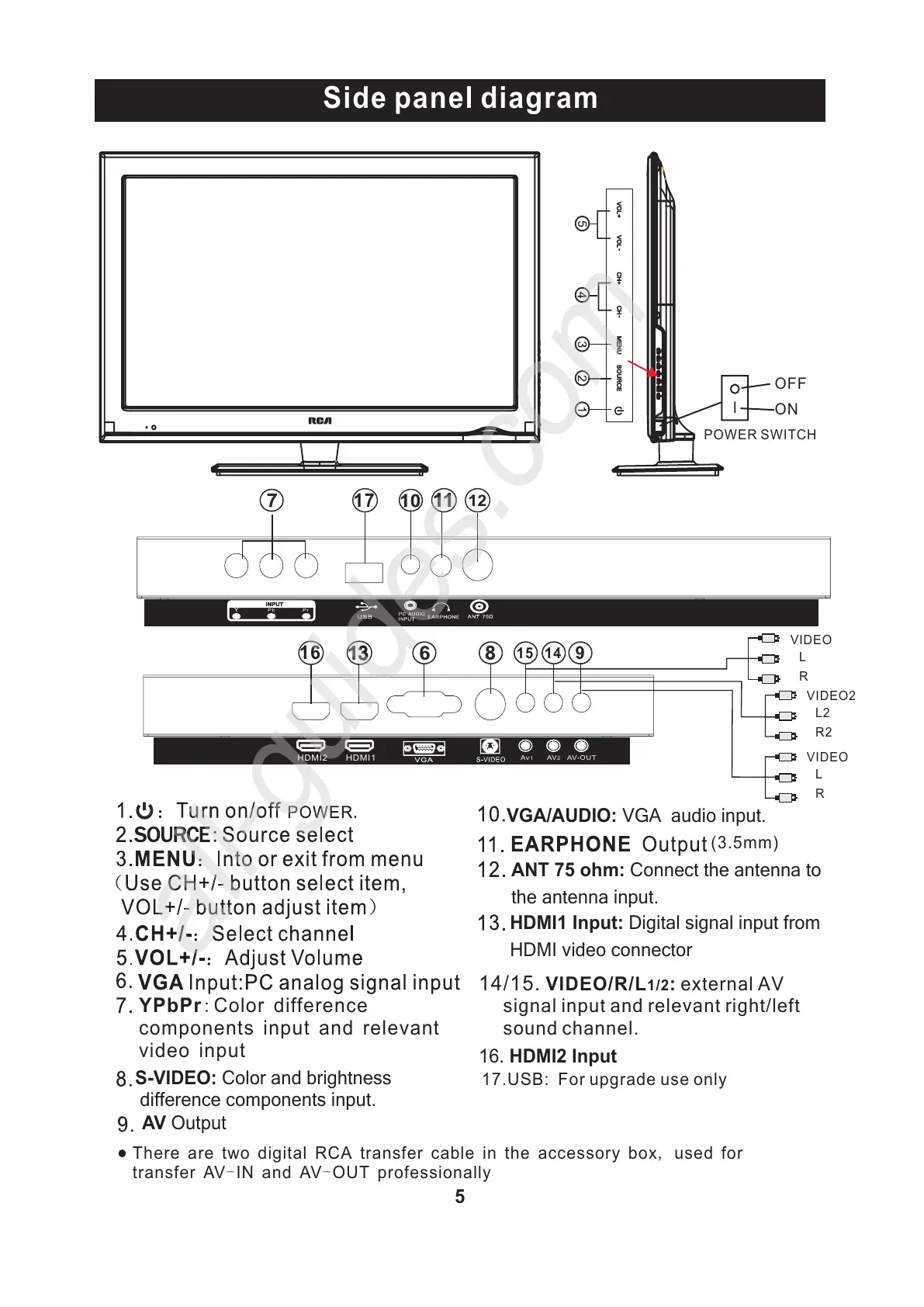

Side panel diagram
5
POWER SWITCH
14/15. VIDEO/R/L :1/2 external AV
signal input and relevant right/left
sound channel.
VGA/AUDIO: VGA audio input.
ANT 75 ohm: Connect the antenna to
the antenna input.
HDMI1 Input: Digital signal input from
HDMI video connector
S-VIDEO: Color and brightness
difference components input.
YPbPr: Color difference
components input and relevant
video input
AV Output
16. HDMI2 Input
(3.5mm)
ON
OFF
SOURCE
MENU
CH+
-
CH
-
VOL
VOL+
SOURCE
MENU
CH+
-
CH
-
VOL
VOL+
Y
Pb
Pr
HDMI2
HDMI1
Av1
AV-OUT
AV2
16
15
14
9
17
VIDEO
L
R
VIDEO2
L2
R2
VIDEO
L
R
There are two digital RCA transfer cable in the accessory box used for
transfer AV IN and AV OUT professionally
,
--
17.USB: For upgrade use only
