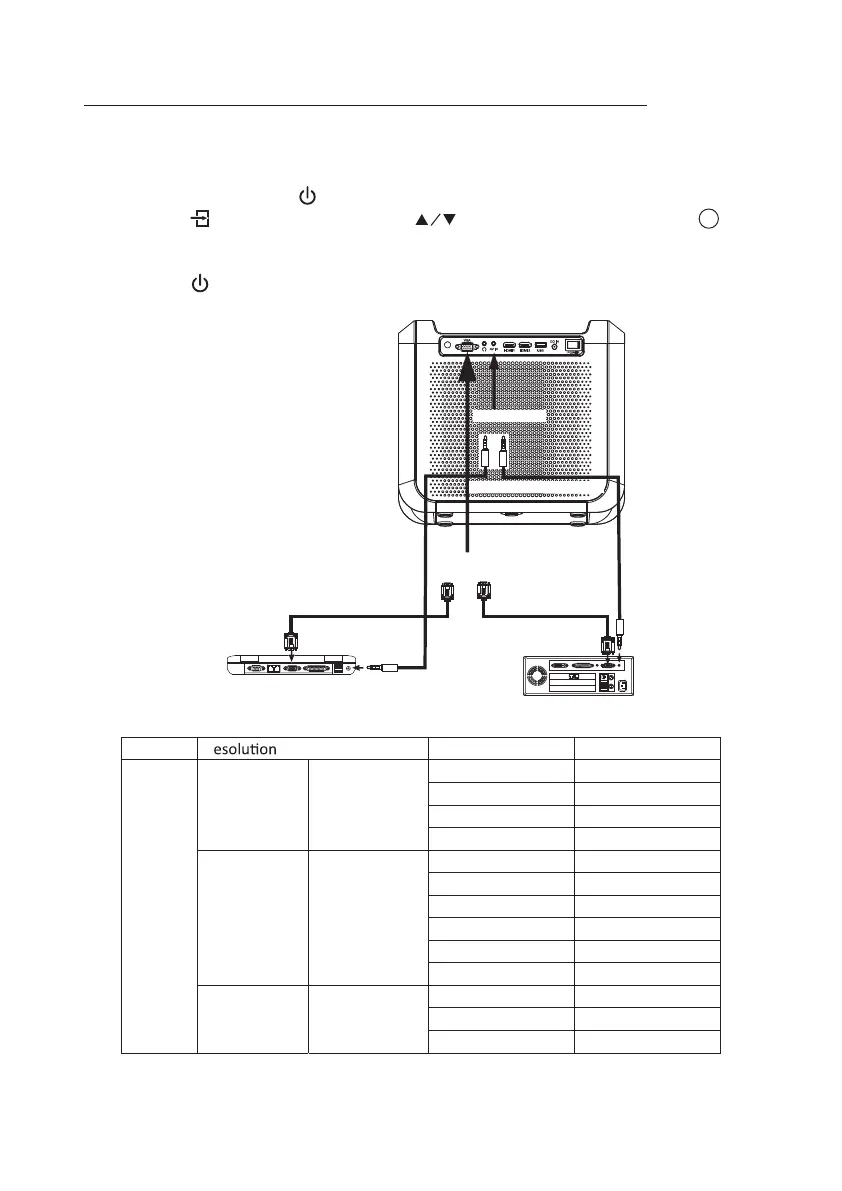

Follow below picture to connect VGA cable AUDIO cable and device.
1. Turn the unit to standby mode before connect VGA cable.
2. Use audio cable to connect follow below figure.
3. After connect, press the button to turn on unit and power indicator will light GREEN
4. Press the / SOURCE button, use the button to select VGA and press button
to enter. The video of VGA device will show on projector screen and sound will come
out from the projector speaker.
5. Press the button to turn the unit to standby mode.
Connect VGA Show The Image On Projector Screen
Please refer to the following table to adjust the output signal from computer
NOTE: In order to get the sound from the unit, please connect AV IN cable when
you connect VGA input.
Type R
Frequency Field Frequency
PC
VGA 640x480
31.5 60
34.7 70
37.9 72
37.5 75
SVGA 800x600
31.4 50
35.1 56
37.9 60
46.6 70
48.1 72
46.9 75
XGA 1024x768
40.3 50
48.4 60
56.5 70
12
OK
TO VGA PORT
NOTE BOOK
DECK TOP
OR
COMPUTER CABLE
COMPUTER CABLE
AV IN
HDMI 1 HDMI 2
DC IN
POWER
USB
VGA
IR
CABLES ARE NOT INCLUDED
OR
TO AV IN PORT
CABLES ARE NOT INCLUDED
